SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories
SY419 ×

← Back to categories

5,006 items

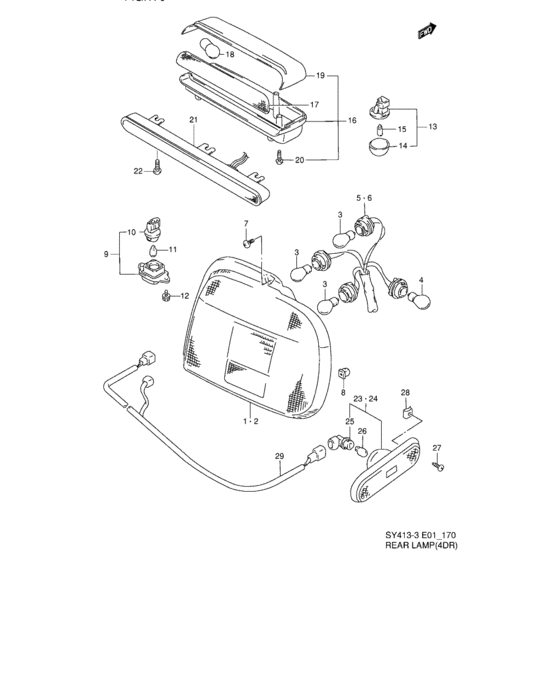

Rear lamp (4DR) 42
#OEMPart name
1 35650-60G01-000 LAMP UNIT,RR COMB,R
1 35650-60G31-000 LAMP UNIT,RR,COMB,R
1 35650-60G21-000 LAMP UNIT,RR,COMB,R
2 35670-60G01-000 LAMP UNIT,RR COMB,L
2 35670-60G31-000 LAMP UNIT,RR,COMB,L
2 35670-60G21-000 LAMP UNIT,RR,COMB,L
3 09471-12045-000 BULB(12V21W)
3 09471-12065-000 BULB(12V27W)
4 09471-12083-000 BULB(12V21/5W)
4 09471-12128-000 BULB(12V21/5W,BF141-49642A)
4 09471-12068-000 BULB(12V32/3CP)
5 35658-60G00-000 SOCKET&CORD ASSY,RR COMB
5 35658-60G20-000 SOCKET&CORD,RR COMB
7 09122-46002-000 Screw (6x16)
7 09122-76004-000 SCREW(6X16)
8 35153-60G00-000 GROMMET,LAMP
9 35910-70C11-999 ランプアッシ,ライセンス
9 35910-70C11-000 Lamp assy,license
10 35618-70B00-000 SOCKET,LAMP
11 09471-12081-000 Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e)
11 09471-12216-000 BULB(12V5W) - Bulb (12v5w)
12 02162-05123-000 Screw
12 02162-0512A-000 SCREW
13 36230-70C00-000 LAMP ASSY,TRUNK ROOM
14 36232-70C00-000 LENS,TRUNK ROOM LAMP
16 35810-64G00-5PK LAMP ASSY,HIGH MT STOP
17 35812-62E00-000 LENS,HIGH MT STOP LAMP
19 35817-62E00-000 COVER,HIGH MOUNT STOP LAMP
20 03211-04146-000 SCREW
21 35810-60G10-000 LAMP ASSY,HIGH MT STOP
22 03512-05123-000 Screw
22 03511-0512A-000 SCREW
23 36530-65G00-000 LAMP ASSY,RR SIDE,R
24 36540-65G00-000 LAMP ASSY,RR SIDE,L
25 36518-60G00-000 SOCKET
26 09471-12094-000 BULB(12V2CP)
27 03112-04203-000 Screw
27 03112-0420B-000 SCREW
28 09148-04034-000 NUT
28 09148-04015-000 NUT
28 09148-04036-000 NUT
29 36875-60G00-000 WIRE,RR SIDE MARKER
