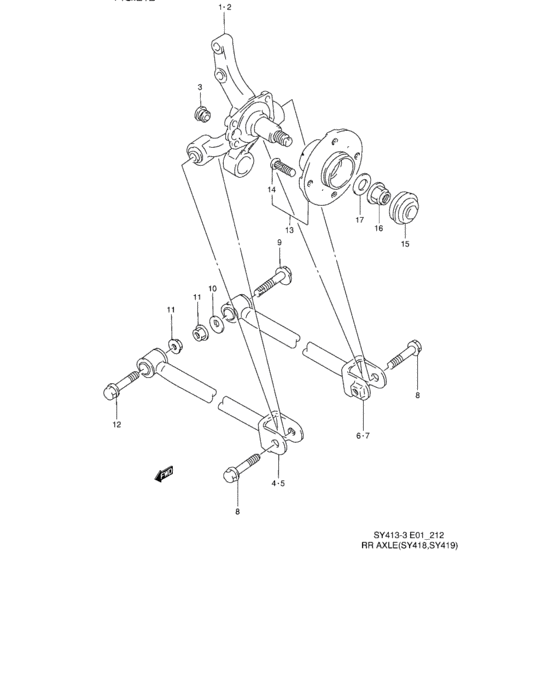

Rear axle (SY418,SY419)
29
| # | OEM | Part name |
|---|
| 1 |
46110-62G01-000 |
ナックルアッシ,リヤサスペンション,ライト |
| 1 |
46110-62G02-000 |
KNUCKLE,RR SPNSN,R |
| 1 |
09159-18026-000 |
NUT |
| 1 |
09159-18017-000 |
Nut |
| 2 |
46150-62G01-000 |
ナックルアッシ,リヤサスペンション,レフト |
| 2 |
46150-62G02-000 |
KNUCKLE,RR SPNSN,L |
| 3 |
09250-19001-000 |
CAP(OD:20.5) |
| 4 |
46300-62G11-000 |
ROD ASSY,REAR CONTROL,R |
| 5 |
46300-62G21-000 |
ROD ASSY,REAR CONTROL,L |
| 6 |
46300-60G21-000 |
ROD ASSY,REAR CONTROL |
| 7 |
46300-63G21-000 |
ROD ASSY,REAR CONTROL,L |
| 7 |
46300-64G20-000 |
ROD ASSY,REAR CONTROL |
| 8 |
46333-60G00-000 |
BOLT |
| 8 |
09103-12065-000 |
BOLT(12X62) |
| 9 |
46330-60E00-000 |
BOLT REAR CONTROL |
| 9 |
46330-60E01-000 |
BOLT,RR CONTROL ROD |
| 10 |
46333-60E00-000 |
WASHER,CONTROL ROD INR |
| 11 |
08316-10123-000 |
Nut |
| 11 |
08316-1012A-000 |
NUT |
| 12 |
09100-12057-000 |
BOLT(12X61) |
| 13 |
43402-60G11-000 |
HUB ASSY REAR WHEEL |
| 13 |
43402-54G12-000 |
HUB ASSY,RR WHL |
| 13 |
43402-60G21-000 |
HUB ASSY REAR WHEEL |
| 13 |
43402-54G22-000 |
HUB ASSY,RR WHL |
| 14 |
09119-12012-000 |
BOLT(12X38) |
| 15 |
43241-60G01-000 |
キャップ,スピンドル |
| 15 |
43241-60G03-000 |
CAP,SPINDLE |
| 16 |
09159-18013-000 |
NUT |
| 17 |
09160-18025-000 |
WASHER(18X38X4) |
| OEM |
Part name |
Category |
| 08316-10123-000 |
Nut |
Rear axle (SY418,SY419) |
| 08316-1012A-000 |
NUT |
Rear axle (SY418,SY419) |
| 09100-12057-000 |
BOLT(12X61) |
Rear axle (SY418,SY419) |
| 09103-12065-000 |
BOLT(12X62) |
Rear axle (SY418,SY419) |
| 09119-12012-000 |
BOLT(12X38) |
Rear axle (SY418,SY419) |
| 09159-18013-000 |
NUT |
Rear axle (SY418,SY419) |
| 09159-18017-000 |
Nut |
Rear axle (SY418,SY419) |
| 09159-18026-000 |
NUT |
Rear axle (SY418,SY419) |
| 09160-18025-000 |
WASHER(18X38X4) |
Rear axle (SY418,SY419) |
| 09250-19001-000 |
CAP(OD:20.5) |
Rear axle (SY418,SY419) |
| 43241-60G01-000 |
キャップ,スピンドル |
Rear axle (SY418,SY419) |
| 43241-60G03-000 |
CAP,SPINDLE |
Rear axle (SY418,SY419) |
| 43402-54G12-000 |
HUB ASSY,RR WHL |
Rear axle (SY418,SY419) |
| 43402-54G22-000 |
HUB ASSY,RR WHL |
Rear axle (SY418,SY419) |
| 43402-60G11-000 |
HUB ASSY REAR WHEEL |
Rear axle (SY418,SY419) |
| 43402-60G21-000 |
HUB ASSY REAR WHEEL |
Rear axle (SY418,SY419) |
| 46110-62G01-000 |
ナックルアッシ,リヤサスペンション,ライト |
Rear axle (SY418,SY419) |
| 46110-62G02-000 |
KNUCKLE,RR SPNSN,R |
Rear axle (SY418,SY419) |
| 46150-62G01-000 |
ナックルアッシ,リヤサスペンション,レフト |
Rear axle (SY418,SY419) |
| 46150-62G02-000 |
KNUCKLE,RR SPNSN,L |
Rear axle (SY418,SY419) |
| 46300-60G21-000 |
ROD ASSY,REAR CONTROL |
Rear axle (SY418,SY419) |
| 46300-62G11-000 |
ROD ASSY,REAR CONTROL,R |
Rear axle (SY418,SY419) |
| 46300-62G21-000 |
ROD ASSY,REAR CONTROL,L |
Rear axle (SY418,SY419) |
| 46300-63G21-000 |
ROD ASSY,REAR CONTROL,L |
Rear axle (SY418,SY419) |
| 46300-64G20-000 |
ROD ASSY,REAR CONTROL |
Rear axle (SY418,SY419) |
| 46330-60E00-000 |
BOLT REAR CONTROL |
Rear axle (SY418,SY419) |
| 46330-60E01-000 |
BOLT,RR CONTROL ROD |
Rear axle (SY418,SY419) |
| 46333-60E00-000 |
WASHER,CONTROL ROD INR |
Rear axle (SY418,SY419) |
| 46333-60G00-000 |
BOLT |
Rear axle (SY418,SY419) |
