SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories

5,006 items

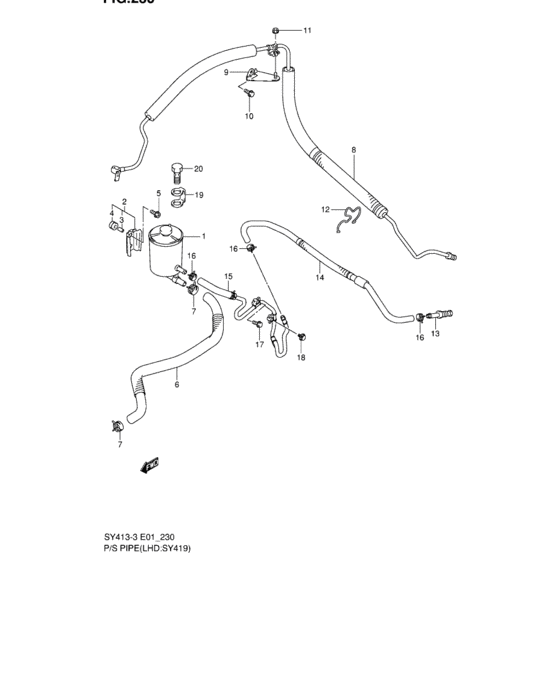

Ps pipe (LHD:SY419) 27

#	OEM	Part name
1	49140-60G00-000	TANK ASSY,POWER STEERING
2	49150-60G00-000	BRACKET ASSY,PS TANK
3	09180-06038-000	SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5)
4	09320-08501-000	CUSHION
5	09136-06133-000	BOLT(6X16) - Screw
6	49222-64G51-000	Hose,suction
7	49224-65G00-000	CLAMP,SUCTION HOSE
8	49210-64G61-000	PIPE ASSY,HIGH PRESSURE
8	49210-66G50-000	PIPE ASSY,HIGH PRESSURE
9	49240-64G60-000	Bracket, pressure pipe
9	49240-64G6V-000	BRACKET,PRESSURE PIPE
10	02162-06123-000	Bolt (6x12)
10	02162-0612B-000	SCREW - Bolt
10	02162-0612A-000	SCREW - Bolt, bracket
11	08361-25063-000	Nut
11	08361-2506A-000	NUT
12	49231-64G00-000	CLAMP,HIGH PRESSURE HOSE
13	49212-60G41-000	Pipe, return gear side
13	49212-60G42-000	PIPE,RETURN GEAR SIDE
14	49223-65G60-000	HOSE,RETURN GEAR SIDE
15	49220-65G60-000	PIPE ASSY,LOW PRESSURE RETURN
16	49225-65G00-000	CLAMP,RETURN HOSE
17	09116-06131-000	BOLT(6X25)
18	09409-07332-000	CLIP
19	49211-63G02-000	GASKET PRESSURE PIPE
19	49211-63G03-000	GASKET,PRESSURE PIPE
20	09360-16008-000	UNION

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	Ps pipe (LHD:SY419)
02162-0612A-000	SCREW - Bolt, bracket	Ps pipe (LHD:SY419)
02162-0612B-000	SCREW - Bolt	Ps pipe (LHD:SY419)
08361-25063-000	Nut	Ps pipe (LHD:SY419)
08361-2506A-000	NUT	Ps pipe (LHD:SY419)
09116-06131-000	BOLT(6X25)	Ps pipe (LHD:SY419)
09136-06133-000	BOLT(6X16) - Screw	Ps pipe (LHD:SY419)
09180-06038-000	SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5)	Ps pipe (LHD:SY419)
09320-08501-000	CUSHION	Ps pipe (LHD:SY419)
09360-16008-000	UNION	Ps pipe (LHD:SY419)
09409-07332-000	CLIP	Ps pipe (LHD:SY419)
49140-60G00-000	TANK ASSY,POWER STEERING	Ps pipe (LHD:SY419)
49150-60G00-000	BRACKET ASSY,PS TANK	Ps pipe (LHD:SY419)
49210-64G61-000	PIPE ASSY,HIGH PRESSURE	Ps pipe (LHD:SY419)
49210-66G50-000	PIPE ASSY,HIGH PRESSURE	Ps pipe (LHD:SY419)
49211-63G02-000	GASKET PRESSURE PIPE	Ps pipe (LHD:SY419)
49211-63G03-000	GASKET,PRESSURE PIPE	Ps pipe (LHD:SY419)
49212-60G41-000	Pipe, return gear side	Ps pipe (LHD:SY419)
49212-60G42-000	PIPE,RETURN GEAR SIDE	Ps pipe (LHD:SY419)
49220-65G60-000	PIPE ASSY,LOW PRESSURE RETURN	Ps pipe (LHD:SY419)
49222-64G51-000	Hose,suction	Ps pipe (LHD:SY419)
49223-65G60-000	HOSE,RETURN GEAR SIDE	Ps pipe (LHD:SY419)
49224-65G00-000	CLAMP,SUCTION HOSE	Ps pipe (LHD:SY419)
49225-65G00-000	CLAMP,RETURN HOSE	Ps pipe (LHD:SY419)
49231-64G00-000	CLAMP,HIGH PRESSURE HOSE	Ps pipe (LHD:SY419)
49240-64G60-000	Bracket, pressure pipe	Ps pipe (LHD:SY419)
49240-64G6V-000	BRACKET,PRESSURE PIPE	Ps pipe (LHD:SY419)
