SY419

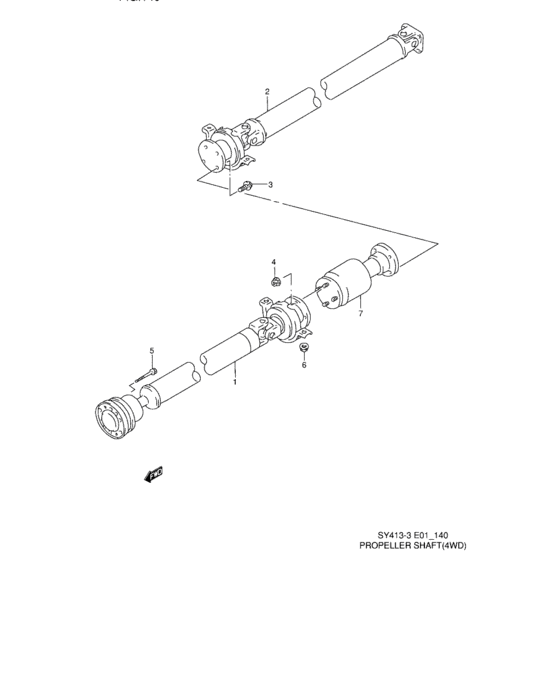

Propeller shaft (4WD) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 27101-60G03-000 | SHAFT ASSY,PROPELLER NO.1 |
| 2 | 27102-60G13-000 | シャフトアッシ,プロペラ,NO.2 |
| 2 | 27102-60G03-000 | SHAFT ASSY,PROPELLER NO.2 |
| 3 | 09117-08095-000 | Bolt (8x20) |
| 3 | 09117-08103-000 | BOLT(8X18) |
| 4 | 09159-08075-000 | NUT |
| 5 | 07130-08503-000 | Bolt |
| 5 | 07130-0850A-000 | Bolt |
| 6 | 08316-10103-000 | Nut |
| 6 | 08316-1010B-000 | NUT |
| 7 | 27610-64G00-000 | カップリング,RBC |
| 7 | 27610-64G0V-000 | COUPLING |
| OEM | Part name | Category |
|---|---|---|
| 07130-08503-000 | Bolt | Propeller shaft (4WD) |
| 07130-0850A-000 | Bolt | Propeller shaft (4WD) |
| 08316-10103-000 | Nut | Propeller shaft (4WD) |
| 08316-1010B-000 | NUT | Propeller shaft (4WD) |
| 09117-08095-000 | Bolt (8x20) | Propeller shaft (4WD) |
| 09117-08103-000 | BOLT(8X18) | Propeller shaft (4WD) |
| 09159-08075-000 | NUT | Propeller shaft (4WD) |
| 27101-60G03-000 | SHAFT ASSY,PROPELLER NO.1 | Propeller shaft (4WD) |
| 27102-60G03-000 | SHAFT ASSY,PROPELLER NO.2 | Propeller shaft (4WD) |
| 27102-60G13-000 | シャフトアッシ,プロペラ,NO.2 | Propeller shaft (4WD) |
| 27610-64G00-000 | カップリング,RBC | Propeller shaft (4WD) |
| 27610-64G0V-000 | COUPLING | Propeller shaft (4WD) |
