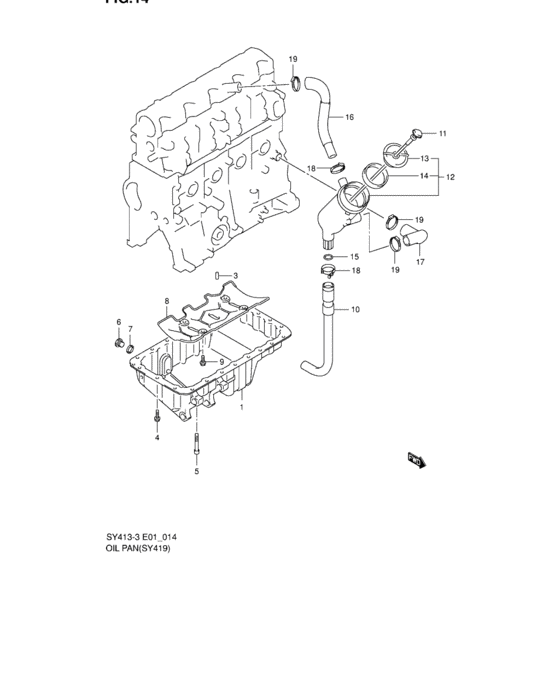

Oil pan (SY419)
20
| # | OEM | Part name |
|---|
| 1 |
11510-66G00-000 |
PAN,OIL |
| 2 |
16588-66G00-000 |
Gasket |
| 3 |
16583-66G00-000 |
Pin |
| 4 |
16594-66G00-000 |
BOLT,7X21 |
| 5 |
16595-66G00-000 |
Bolt |
| 6 |
16590-66G00-000 |
PLUG,DRAIN M14 |
| 6 |
16590-66G01-000 |
PLUG,DRAIN M14 |
| 7 |
13996-66G00-000 |
GASKET |
| 8 |
16584-66G00-000 |
PLATE,OIL PAN BAFFLE |
| 9 |
16593-66G00-000 |
BOLT,6X16 |
| 10 |
16586-66G00-000 |
GUIDE,OIL LEVEL GAUGE |
| 11 |
16585-66G00-000 |
GAUGE,OIL LEVEL |
| 12 |
16910-66G00-000 |
Filler, oil |
| 13 |
16920-66G00-000 |
Cap,oil filler |
| 14 |
16921-66G00-000 |
GASKET,OIL FILLER CAP |
| 15 |
16922-66G00-000 |
O ring |
| 16 |
16596-66G00-000 |
Union, oil |
| 17 |
16597-66G00-000 |
Union, oil |
| 18 |
16598-66G00-000 |
Clamp |
| 19 |
16599-66G00-000 |
Clamp |
| OEM |
Part name |
Category |
| 11510-66G00-000 |
PAN,OIL |
Oil pan (SY419) |
| 13996-66G00-000 |
GASKET |
Oil pan (SY419) |
| 16583-66G00-000 |
Pin |
Oil pan (SY419) |
| 16584-66G00-000 |
PLATE,OIL PAN BAFFLE |
Oil pan (SY419) |
| 16585-66G00-000 |
GAUGE,OIL LEVEL |
Oil pan (SY419) |
| 16586-66G00-000 |
GUIDE,OIL LEVEL GAUGE |
Oil pan (SY419) |
| 16588-66G00-000 |
Gasket |
Oil pan (SY419) |
| 16590-66G00-000 |
PLUG,DRAIN M14 |
Oil pan (SY419) |
| 16590-66G01-000 |
PLUG,DRAIN M14 |
Oil pan (SY419) |
| 16593-66G00-000 |
BOLT,6X16 |
Oil pan (SY419) |
| 16594-66G00-000 |
BOLT,7X21 |
Oil pan (SY419) |
| 16595-66G00-000 |
Bolt |
Oil pan (SY419) |
| 16596-66G00-000 |
Union, oil |
Oil pan (SY419) |
| 16597-66G00-000 |
Union, oil |
Oil pan (SY419) |
| 16598-66G00-000 |
Clamp |
Oil pan (SY419) |
| 16599-66G00-000 |
Clamp |
Oil pan (SY419) |
| 16910-66G00-000 |
Filler, oil |
Oil pan (SY419) |
| 16920-66G00-000 |
Cap,oil filler |
Oil pan (SY419) |
| 16921-66G00-000 |
GASKET,OIL FILLER CAP |
Oil pan (SY419) |
| 16922-66G00-000 |
O ring |
Oil pan (SY419) |
