Search › Model › SY419

SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories
SY419 ×

← Back to categories

5,006 items

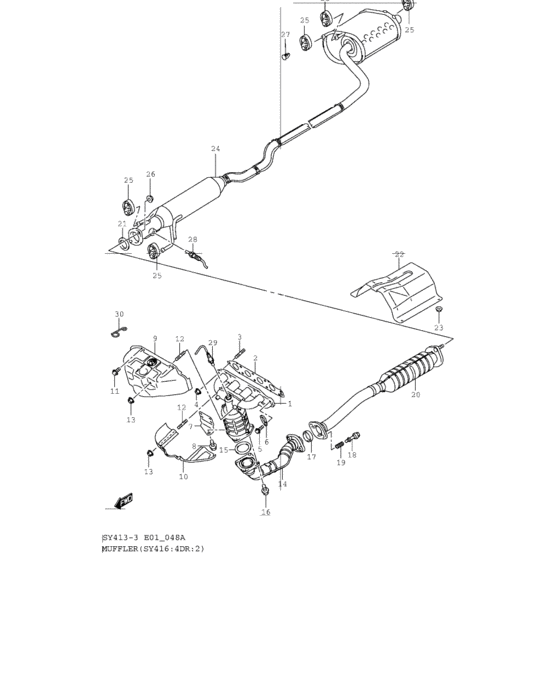

Muffler (SY416:4DR:,2,Hong Kong:TYPE 5) 40
#OEMPart name
1 14110-65G10-000 MANIFOLD,EXH
2 14140-52G00-000 Gasket, exhaust manifold
3 09108-08246-000 BOLT,STUD
4 08316-10083-000 Nut
4 08316-1008B-000 NUT
5 01550-08253-000 Bolt, rear
5 01550-0825B-000 Bolt
5 01550-0825A-000 Bolt
6 11851-62B00-000 HOOK
7 14271-65G10-000 STIFFENER,EXH MANF
8 09103-10324-000 BOLT(10X20)
9 14121-65G10-000 COVER,EXH MANIFOLD
10 14131-65G10-000 Cover,exh manifold lower
11 09103-06168-000 BOLT(6X10)
12 01411-06123-000 Bolt, stud - Stud bolt
12 01411-0612A-000 BOLT,STUD
13 09159-06077-000 NUT
14 14190-65G60-000 Pipe, exhaust no.1
14 14190-65GVV-000 PIPE,EXH NO.1
15 14184-65D00-000 GASKET,EXH PIPE
17 14183-50G00-000 Ring, seal
17 14183-76A00-000 RING,SEAL EXH PIPE
18 09119-10041-000 BOLT(10X65)
19 14492-65G00-000 SPRING,EXH PIPE
20 14220-65G00-000 PIPE,EXH NO.2
21 14184-60G00-000 GASKET,EXH PIPE
22 14231-60G01-000 INSULATOR,CATALYTIC CONV HEAT
23 51741-60B00-000 NUT,PIPE COVER
24 14300-60G90-000 Muffler
24 14300-60GVV-000 MUFFLER
25 14281-60G00-000 MOUNTING MUFFLER
25 14281-60G01-000 MOUNTING,MUF
26 09159-10049-000 Nut
26 09159-10102-000 NUT
27 09409-11302-5PK CLIP(BLACK)
28 18213-65G30-000 Sensor, oxygen
28 18213-65G32-000 SENSOR,OXYGEN
29 18213-65G40-000 Sensor, oxygen
29 18213-65G41-000 SENSOR ASSY,OXYGEN
30 09403-10404-000 CLAMP
