Search › Model › SY419
SY419

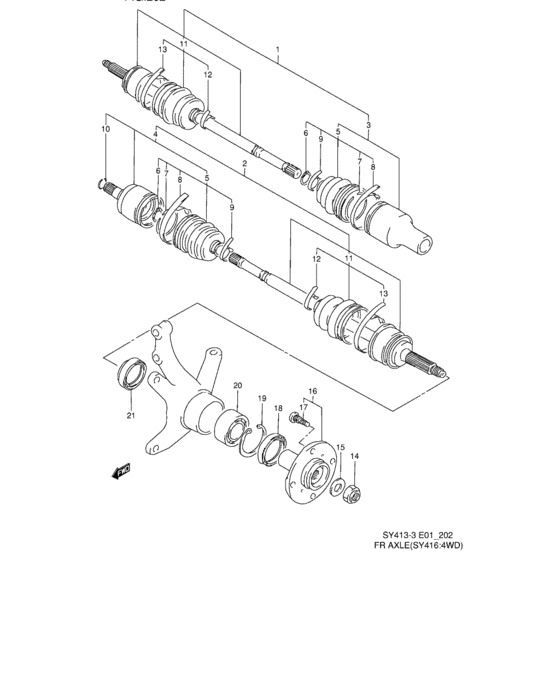

Front axle (SY416:4WD) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 44101-60G62-000 | SHAFT ASSY,FRONT DRIVE,R |
| 2 | 44102-60G60-000 | SHAFT ASSY,FRONT DRIVE,L |
| 3 | 44117-60G64-000 | JOINT ASSY,DIFF SIDE,R |
| 4 | 44115-60G64-000 | JOINT ASSY,DIFF SIDE,L |
| 5 | 44119-60G62-000 | BOOT SET,DIFF SIDE |
| 5 | 44119-60G63-000 | BOOT SET,DIFF SIDE |
| 6 | 44111-53B10-000 | RING,SNAP |
| 7 | 44112-53B10-000 | CIRCLIP |
| 8 | 44121-53B10-000 | BAND,BOOT |
| 9 | 44123-53B10-000 | BAND,BOOT SMALL |
| 10 | 44111-65D00-000 | RING,SNAP |
| 11 | 44118-60G61-000 | BOOT SET,WHEEL SIDE |
| 11 | 44118-60G62-000 | BOOT SET,WHEEL SIDE |
| 13 | 44222-51F00-000 | BAND,BOOT |
| 14 | 09159-18008-000 | NUT |
| 15 | 09160-18017-000 | WASHER(18X35X4) |
| 16 | 43420-50850-000 | HUB SET FRONT WHEEL |
| 16 | 43420-50853-000 | HUB SET,FR WHL |
| 17 | 09119-12012-000 | BOLT(12X38) |
| 18 | 09283-56002-000 | SEAL,OIL(56X72.2X7.8) |
| 19 | 09381-72002-000 | RING,SNAP |
| 20 | 09267-40001-000 | BEARING(40X72X36) |
| 21 | 43431-60G00-000 | SEAL,FR WHL BRG INNER OIL |
| OEM | Part name | Category |
|---|---|---|
| 09119-12012-000 | BOLT(12X38) | Front axle (SY416:4WD) |
| 09159-18008-000 | NUT | Front axle (SY416:4WD) |
| 09160-18017-000 | WASHER(18X35X4) | Front axle (SY416:4WD) |
| 09267-40001-000 | BEARING(40X72X36) | Front axle (SY416:4WD) |
| 09283-56002-000 | SEAL,OIL(56X72.2X7.8) | Front axle (SY416:4WD) |
| 09381-72002-000 | RING,SNAP | Front axle (SY416:4WD) |
| 43420-50850-000 | HUB SET FRONT WHEEL | Front axle (SY416:4WD) |
| 43420-50853-000 | HUB SET,FR WHL | Front axle (SY416:4WD) |
| 43431-60G00-000 | SEAL,FR WHL BRG INNER OIL | Front axle (SY416:4WD) |
| 44101-60G62-000 | SHAFT ASSY,FRONT DRIVE,R | Front axle (SY416:4WD) |
| 44102-60G60-000 | SHAFT ASSY,FRONT DRIVE,L | Front axle (SY416:4WD) |
| 44111-53B10-000 | RING,SNAP | Front axle (SY416:4WD) |
| 44111-65D00-000 | RING,SNAP | Front axle (SY416:4WD) |
| 44112-53B10-000 | CIRCLIP | Front axle (SY416:4WD) |
| 44115-60G64-000 | JOINT ASSY,DIFF SIDE,L | Front axle (SY416:4WD) |
| 44117-60G64-000 | JOINT ASSY,DIFF SIDE,R | Front axle (SY416:4WD) |
| 44118-60G61-000 | BOOT SET,WHEEL SIDE | Front axle (SY416:4WD) |
| 44118-60G62-000 | BOOT SET,WHEEL SIDE | Front axle (SY416:4WD) |
| 44119-60G62-000 | BOOT SET,DIFF SIDE | Front axle (SY416:4WD) |
| 44119-60G63-000 | BOOT SET,DIFF SIDE | Front axle (SY416:4WD) |
| 44121-53B10-000 | BAND,BOOT | Front axle (SY416:4WD) |
| 44123-53B10-000 | BAND,BOOT SMALL | Front axle (SY416:4WD) |
| 44222-51F00-000 | BAND,BOOT | Front axle (SY416:4WD) |
