SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories
SY419 ×

← Back to categories

5,006 items

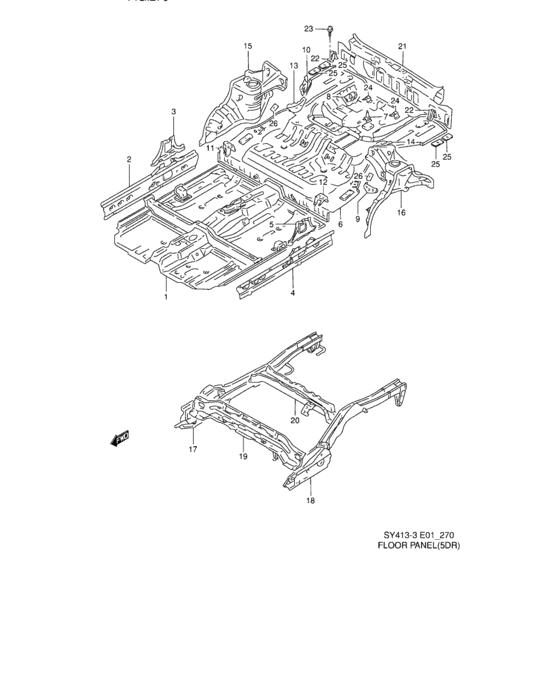

Floor panel (5DR) 41
#OEMPart name
1 61110-60G32-000 Pan, main floor
1 61111-65G00-000 Panel,main floor
1 09250-25001-000 CAP(OD:30) - Cap, end
1 72999-67H00-000 CAP,OD:40
1 09250-30010-000 Grommet - Grommet, fender
1 61110-60G22-000 Pan, main floor
1 61110-65G00-000 Pan, main floor
1 61110-65GA0-000 Pan, main floor
1 61110-65G20-000 Pan, main floor
1 61110-65G22-000 Pan, main floor
2 61310-60G02-000 PANEL,SIDE SILL INNER,R
3 61312-60G01-000 EXTENSION,MAIN FL SIDE,R
4 61320-60G02-000 PANEL,SIDE SILL INNER,L
5 61317-60G01-000 EXTENSION,MAIN FL SIDE,L
6 61511-63GV0-000 Pan,rear floor
7 61518-60G00-000 BRACKET,SPARE TIRE
8 61521-72C00-000 BRACKET,JACK
9 61530-60G01-000 REINFORCEMENT,RR SEAT BELT
10 61571-63G00-000 エクステンション,リヤフロアサイド,ライト
10 61571-54G00-000 EXTENSION,RR FLOOR SIDE,R
11 61581-60G00-000 BRACKET,SEAT SIDE,R
12 61582-60G00-000 BRACKET,SEAT SIDE,L
13 61591-63G01-000 REINFORCEMENT,RR FL UPR,R
14 61592-63G01-000 REINFORCEMENT,RR FL UPR,L
15 61610-61820-000 Panel, rr wheel house inner r
15 61611-55G00-000 PANEL,RR WHEEL HOUSE INR,R
16 61660-61820-000 Panel, rr wheel house inner l
16 61661-55G00-000 PANEL,RR WHEEL HOUSE INR,L
17 62110-63G01-000 MEMBER,RR FL SIDE,R
18 62310-63G01-000 Member comp,rear floor side,l
19 62610-60G11-000 CROSSMEMBER,RR FL,FR
20 62710-60G30-000 CROSSMEMBER,RR FL CTR
20 62710-60G40-000 CROSSMEMBER,RR FL CTR
21 65500-63G00-000 PANEL,BACK
21 65500-63G10-000 PANEL,BACK
22 75425-63G00-000 BRACKET,RR FLOOR UPR PLATE
23 02162-06123-000 Bolt (6x12)
23 02162-0612B-000 SCREW - Bolt
23 02162-0612A-000 SCREW - Bolt, bracket
24 58122-83001-000 BRACKET,BACK PANERL TRIM
25 61117-51F00-000 PLATE,REAR FLOOR UPPER
