SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories
SY419 ×

← Back to categories

5,006 items

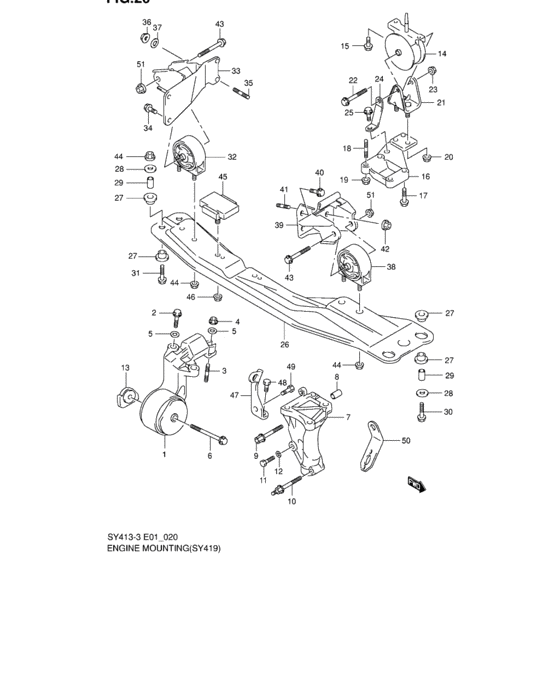

Engine mounting (SY419) 72
#OEMPart name
1 11610-65G50-000 Mounting,engine rh
2 11617-65G50-000 BOLT,ENG MTG,R
3 11618-65G50-000 Stud bolt
3 11618-65G5V-000 STUD BOLT,ENG RIGHT MTG
4 08316-10103-000 Nut
4 08316-1010B-000 NUT
5 09160-10506-000 Washer - Washer, bal sprocket (10.5x22x2.3)
5 09160-10039-000 WASHER(10.5X22X2.3)
6 09103-10288-000 ボルト,10X105
6 09103-10414-000 BOLT(10X105)
7 11640-66G00-000 Bracket, engine mount
8 11641-66G00-000 Pin
9 11643-66G00-000 Bolt
10 11642-66G00-000 Bolt
11 11644-66G00-000 Bolt
12 11851-66G00-000 Washer
13 11643-62G00-000 DAMPER,ENG RH MOUNTING
14 11620-62G01-000 MOUNTING,ENG,L
15 01551-10253-000 Bolt
15 01551-1025A-000 Bolt
16 11651-65G50-000 BRACKET,ENG MTG NO.1,L
17 01550-10403-000 Bolt - Bolt, rear lh (10x40)
17 01550-1040B-000 Bolt
17 01550-1040A-000 Bolt
18 01421-10353-000 Stud 10x1.25x55 - Stud bolt
18 01421-1035A-000 BOLT,STUD
18 01421-1035B-000 BOLT,STUD
20 08316-10083-000 Nut
20 08316-1008B-000 NUT
21 11670-60G00-000 ブラケット,エンジンレフトマウンチング,NO.2
21 11670-60G01-000 BRACKET,ENG MTG,L
22 01550-10803-000 Bolt - Bolt, tachometer
22 01550-1080A-000 Bolt
24 11675-65G50-000 STIFFENER,ENG LEFT MTG
25 01550-08203-000 Bolt
25 01550-0820B-000 Bolt
25 01550-0820A-000 Bolt - Bolt, funnel bracket
26 11630-65G51-000 MEMBER,MTG
27 11684-60G00-000 CUSHION,MTG MEMBER
28 11685-85000-000 WASHERMOUNTING MEMBER
28 11685-79J00-000 WASHER
29 09180-10152-000 SPACER(10.2X14X19) - Spacer (id:10.1,od:13.8)
30 01551-10503-000 ボルト
30 01551-1050A-000 Bolt
32 11710-65G50-000 MOUNTING,ENG RR
33 11740-65G50-000 BRACKET,ENG RR MTG
33 11740-65GA0-000 Bracket comp,eng rr mtg
34 09103-10268-000 BOLT(10X28) - Bolt, eng mtg, rh (10x28)
34 01550-10303-000 Bolt - Bolt, axle housing
34 01550-1030B-000 Bolt - Bolt, axle housing rear
34 01550-1030A-000 Bolt
35 09108-10102-000 BOLT,STUD - Stud bolt
35 01421-10253-000 Stud bolt - Bolt, axle housing front
35 01421-1025B-000 BOLT,STUD
37 08321-01103-000 Washer - Lock washer
37 08321-0110B-000 WASHER,LOCK - Washer, knuckle end
37 08321-0110A-000 WASHER,LOCK
38 11720-65G50-000 BUSH,ENG FR TORQUE
39 11760-65G50-000 BRACKET,ENG FR MTG
39 11760-65GA0-000 Bracket, eng fr bush
40 01550-10253-000 Bolt - Bolt, rr swgarm bracket
40 01550-1025B-000 Bolt - Bolt, rr swgarm bracket, l
40 01550-1025A-000 Bolt - Bolt, drive gear
41 01411-08203-000 Stud 8x20 - Stud bolt
41 01411-0820B-000 BOLT,STUD
41 01411-08253-000 New Genuine Part
41 01411-0825A-000 BOLT,STUD
45 11915-60G00-000 DAMPER,DYNAMIC
47 11860-66G00-000 Bracket, engine mount
48 11861-66G00-000 Bolt
49 11862-66G00-000 Bolt
50 11860-66G10-000 Hook, engine
