SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories
SY419 ×

← Back to categories

5,006 items

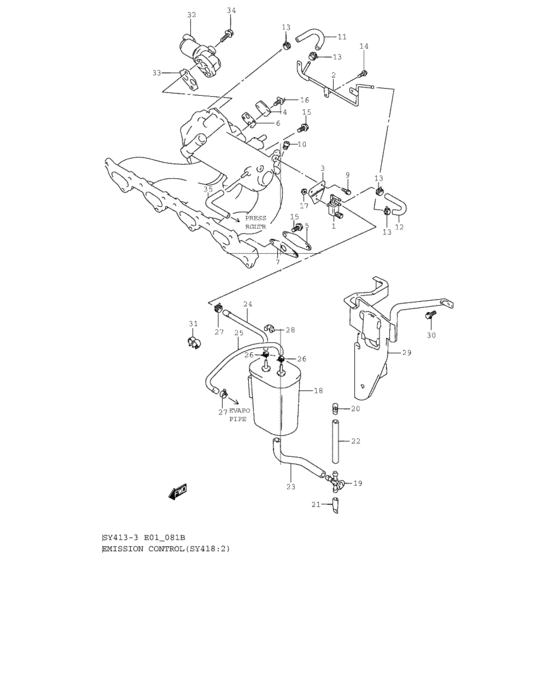

Emission control (SY418:TYPE 5:Chile,Australia,Saudi Arabia) 45
#OEMPart name
1 18117-52G00-000 VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge
2 18340-65G00-000 PIPE,PURGE
3 18417-68EA0-000 Bracket, vsv
3 18417-68EA1-000 BRACKET,PURGE VALVE
4 18491-77E00-000 PLATE,EGR VALVE
5 18492-77E00-000 PLATE,EGR PIPE
6 18529-77E00-000 Gasket, egr valve
6 18529-77E01-000 GASKET,EGR VALVE
7 18533-77E00-000 GASKET,EGR PIPE
8 09103-06083-000 Bolt (6x12)
8 09103-06285-000 BOLT(6X12) - Bolt (6x12)
9 09103-06168-000 BOLT(6X10)
10 09246-04005-000 PLUG - Plug, cylinder head cover
11 09355-54115-600 HOSE(5.4X11.4X600) - Hose, vacuum
13 09401-10409-000 CLIP
14 01550-06123-000 Bolt
14 01550-0612B-000 Bolt - Bolt, clamp
14 01550-0612A-000 Bolt
16 01550-08163-000 Bolt, holder
16 01550-0816B-000 Bolt
16 01550-0816A-000 Bolt - Bolt, rear
17 08316-10063-000 Nut
17 08316-1006B-000 NUT
18 18560-50G01-000 CANISTER
19 18565-60G10-000 CONNECTOR,PURGE AIR SUCT HOSE
20 18566-60G00-000 FILTER,PURGE AIR SUCTION
21 18568-55F00-000 HOSE,DRAIN
22 09355-70125-600 HOSE(7X12X600) - Hose, fuel (pump to separator)
22 44421-12FR0-000 HOSE
24 09359-35751-600 HOSE(3.5X7.5X600) - Hose, cstr purge
26 09401-06405-000 CLIP
27 09401-08411-000 CLIP
28 09403-08311-000 CLAMP
29 18570-60G00-000 Bracket, cnstr
29 18570-60G03-000 BRACKET,CANISTER
30 02162-06123-000 Bolt (6x12)
30 02162-0612B-000 SCREW - Bolt
30 02162-0612A-000 SCREW - Bolt, bracket
31 09408-00033-000 CLAMP
32 18137-77E00-000 VALVE,IAC
33 18134-77E00-000 GASKET,IAC VALVE
34 01550-06203-000 Bolt
34 01550-0620B-000 Bolt - Bolt, inspection cap
35 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
35 09355-35006-601 Hose(3.5X7.5X601)
