SY419

Suzuki BALENO-ESTEEM · 5,006 parts · 295 categories
SY419 ×

← Back to categories

5,006 items

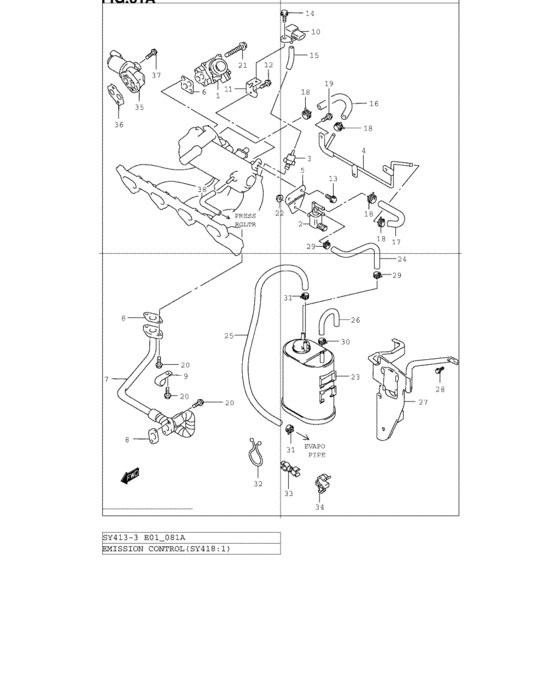

Emission control (SY418:TYPE 5:,2,Hong Kong) 54
#OEMPart name
1 18111-77E00-000 Valve, egr
1 18111-77E02-000 VALVE,EGR
2 18117-52G00-000 VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge
3 18133-60B00-000 FILTER,GAS
4 18340-65G00-000 PIPE,PURGE
5 18417-68EA0-000 Bracket, vsv
5 18417-68EA1-000 BRACKET,PURGE VALVE
6 18529-77E00-000 Gasket, egr valve
6 18529-77E01-000 GASKET,EGR VALVE
7 18530-77EA0-000 Pipe comp,egr
8 18533-77E00-000 GASKET,EGR PIPE
9 18536-77EA0-000 CLAMP,EGR PIPE
10 18590-58B00-000 SENSOR,PRESSURE
11 18595-65G00-000 BRACKET,PRESSURE SENSOR
12 09103-06083-000 Bolt (6x12)
12 09103-06285-000 BOLT(6X12) - Bolt (6x12)
13 09103-06168-000 BOLT(6X10)
14 09103-06186-000 Bolt - Bolt (6x16)
14 01550-06167-000 Bolt
15 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
15 09355-35006-601 Hose(3.5X7.5X601)
16 09355-54115-600 HOSE(5.4X11.4X600) - Hose, vacuum
18 09401-10409-000 CLIP
19 01550-06123-000 Bolt
19 01550-0612B-000 Bolt - Bolt, clamp
19 01550-0612A-000 Bolt
20 01550-06163-000 Bolt
20 01550-0616B-000 Bolt
20 01550-0616A-000 Bolt
21 01550-08503-000 Bolt
21 01550-0850B-000 Bolt
22 08316-10063-000 Nut
22 08316-1006B-000 NUT
23 18560-76A30-000 キャニスタ
23 18560-76A31-000 CANISTER
24 18561-65G10-000 HOSE,PURGE CSTR TO VSV
25 18567-65G00-000 Hose, cnstr inlet
25 09355-56128-600 HOSE(5.6X12.4X600)
25 09355-54128-600 Hose,5.4x12.2x600
26 18567-80A00-000 HOSE,CANISTER AIR
27 18570-60G02-000 Bracket, cnstr
27 18570-60G03-000 BRACKET,CANISTER
28 02162-06123-000 Bolt (6x12)
28 02162-0612B-000 SCREW - Bolt
28 02162-0612A-000 SCREW - Bolt, bracket
30 09401-12404-000 CLIP
31 09401-11419-000 CLIP
32 09408-00012-000 CLIP(ID:11.5) - Clamp, stop switch lead (id:11.5)
33 09408-00054-000 CLAMP
34 09403-11314-000 CLAMP
35 18137-77E00-000 VALVE,IAC
36 18134-77E00-000 GASKET,IAC VALVE
37 01550-06203-000 Bolt
37 01550-0620B-000 Bolt - Bolt, inspection cap
