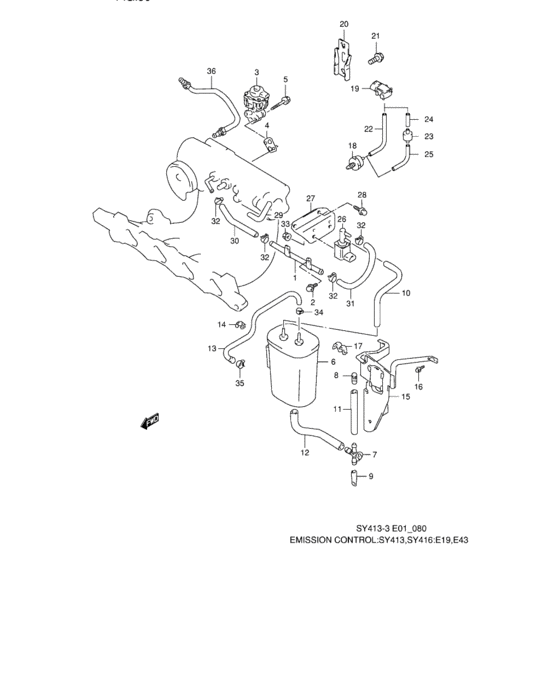

Emission control (SY413,SY416:Belgium,Germany:TYPE 3,4) 39
#OEMPart name
1 18340-64G00-000 パイプ,バキューム
1 18340-64G01-000 PIPE,VACUUM
2 09103-06168-000 BOLT(6X10)
3 18111-77E00-000 Valve, egr
3 18111-77E02-000 VALVE,EGR
4 18529-77E00-000 Gasket, egr valve
4 18529-77E01-000 GASKET,EGR VALVE
5 01550-08553-000 Bolt
5 01550-0855B-000 Bolt
5 01550-0855A-000 Bolt - Bolt, gear holder
6 18560-50G01-000 CANISTER
7 18565-60G10-000 CONNECTOR,PURGE AIR SUCT HOSE
8 18566-60G00-000 FILTER,PURGE AIR SUCTION
9 18568-55F00-000 HOSE,DRAIN
10 09359-35751-600 HOSE(3.5X7.5X600) - Hose, cstr purge
11 09355-70125-600 HOSE(7X12X600) - Hose, fuel (pump to separator)
11 44421-12FR0-000 HOSE
14 09403-08311-000 CLAMP
15 18570-60G00-000 Bracket, cnstr
15 18570-60G03-000 BRACKET,CANISTER
16 02162-06123-000 Bolt (6x12)
16 02162-0612B-000 SCREW - Bolt
16 02162-0612A-000 SCREW - Bolt, bracket
17 09408-00033-000 CLAMP
18 18133-60B00-000 FILTER,GAS
19 18590-50G10-000 SENSOR,PRESSURE
20 18595-64G00-000 BRACKET,MAP SENSOR
22 09355-35754-601 HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
22 09355-35006-601 Hose(3.5X7.5X601)
23 27965-85400-000 FILTER,VSV - Filter assy, vsv
26 18117-52G00-000 VALVE ASSY,DUTY FOR PURGE - Valve assy, evap purge
27 18417-63E00-000 BRACKET,VSV
30 09355-54115-600 HOSE(5.4X11.4X600) - Hose, vacuum
32 09401-10409-000 CLIP
33 08316-10063-000 Nut
33 08316-1006B-000 NUT
34 09401-06405-000 CLIP
35 09401-08411-000 CLIP
36 18530-64G00-000 PIPE,EGR
