Search › Model › SY419
SY419

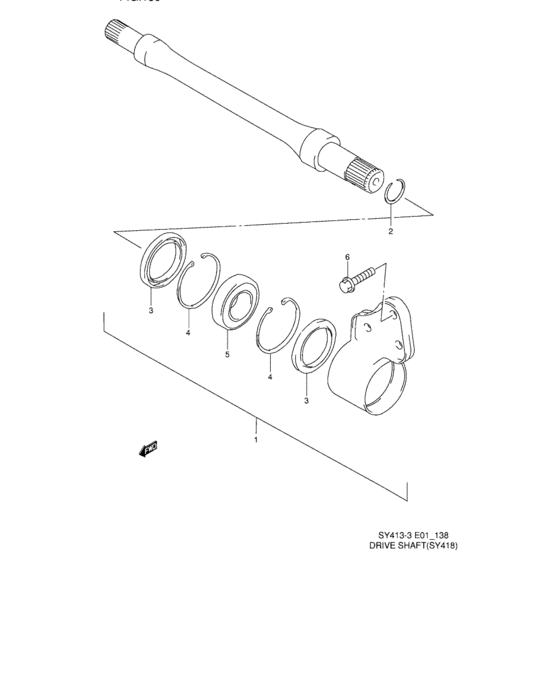

Drive shaft (SY418) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 27800-60G53-000 | SHAFT ASSY,DRIVE INTERMEDIATE |
| 2 | 09381-25002-000 | RING,SNAP |
| 3 | 27841-64G00-000 | SEAL,DRIVE INTERMEDIATE |
| 4 | 08331-41586-000 | Circlip |
| 4 | 08331-4158A-000 | CIRCLIP |
| 5 | 09262-28030-000 | Bearing,28x58x16 |
| 5 | 27831-68L10-000 | BEARING,DRIVE INTERMEDIATE |
| 6 | 01550-10353-000 | Bolt |
| 6 | 01550-1035A-000 | Bolt - Bolt, fr fork upper |
| OEM | Part name | Category |
|---|---|---|
| 01550-10353-000 | Bolt | Drive shaft (SY418) |
| 01550-1035A-000 | Bolt - Bolt, fr fork upper | Drive shaft (SY418) |
| 08331-41586-000 | Circlip | Drive shaft (SY418) |
| 08331-4158A-000 | CIRCLIP | Drive shaft (SY418) |
| 09262-28030-000 | Bearing,28x58x16 | Drive shaft (SY418) |
| 09381-25002-000 | RING,SNAP | Drive shaft (SY418) |
| 27800-60G53-000 | SHAFT ASSY,DRIVE INTERMEDIATE | Drive shaft (SY418) |
| 27831-68L10-000 | BEARING,DRIVE INTERMEDIATE | Drive shaft (SY418) |
| 27841-64G00-000 | SEAL,DRIVE INTERMEDIATE | Drive shaft (SY418) |
