Search › Model › SY419
SY419

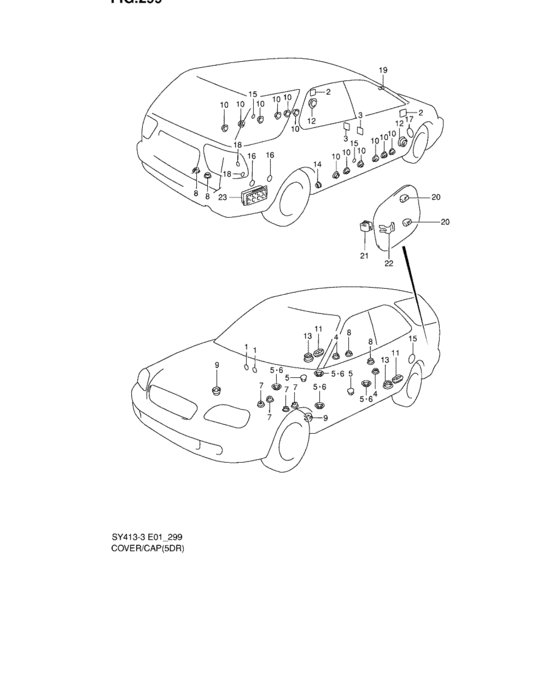

Cover / cap (5DR) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole |
| 4 | 09250-15012-000 | CAP(OD:23.5) |
| 5 | 09250-25001-000 | CAP(OD:30) - Cap, end |
| 6 | 65971-77E00-000 | Cap, rear floor drain |
| 6 | 65971-77E10-000 | CAP,OD:30 |
| 7 | 09250-30010-000 | Grommet - Grommet, fender |
| 7 | 72999-67H00-000 | CAP,OD:40 |
| 9 | 09250-25008-000 | CAP(OD:31) |
| 11 | 09250-36003-000 | Cap,42.7 |
| 12 | 09250-40004-000 | CAP(OD:48.5) |
| 14 | 09250-20022-000 | CAP(OD:25.8) |
| 15 | 77191-76F00-000 | FILM |
| 20 | 77116-60B20-000 | CUSHION |
| 21 | 77117-60B00-000 | STOPPER,FUEL LID |
| 22 | 77118-60B02-000 | SPRING,FUEL LID |
| 23 | 77330-60G00-000 | OUTLET,VENTILATOR |
| OEM | Part name | Category |
|---|---|---|
| 09250-15012-000 | CAP(OD:23.5) | Cover / cap (5DR) |
| 09250-20022-000 | CAP(OD:25.8) | Cover / cap (5DR) |
| 09250-25001-000 | CAP(OD:30) - Cap, end | Cover / cap (5DR) |
| 09250-25008-000 | CAP(OD:31) | Cover / cap (5DR) |
| 09250-30010-000 | Grommet - Grommet, fender | Cover / cap (5DR) |
| 09250-36003-000 | Cap,42.7 | Cover / cap (5DR) |
| 09250-40004-000 | CAP(OD:48.5) | Cover / cap (5DR) |
| 65971-77E00-000 | Cap, rear floor drain | Cover / cap (5DR) |
| 65971-77E10-000 | CAP,OD:30 | Cover / cap (5DR) |
| 72999-67H00-000 | CAP,OD:40 | Cover / cap (5DR) |
| 77116-60B20-000 | CUSHION | Cover / cap (5DR) |
| 77117-60B00-000 | STOPPER,FUEL LID | Cover / cap (5DR) |
| 77118-60B02-000 | SPRING,FUEL LID | Cover / cap (5DR) |
| 77191-76F00-000 | FILM | Cover / cap (5DR) |
| 77330-60G00-000 | OUTLET,VENTILATOR | Cover / cap (5DR) |
| 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole | Cover / cap (5DR) |
