SY419

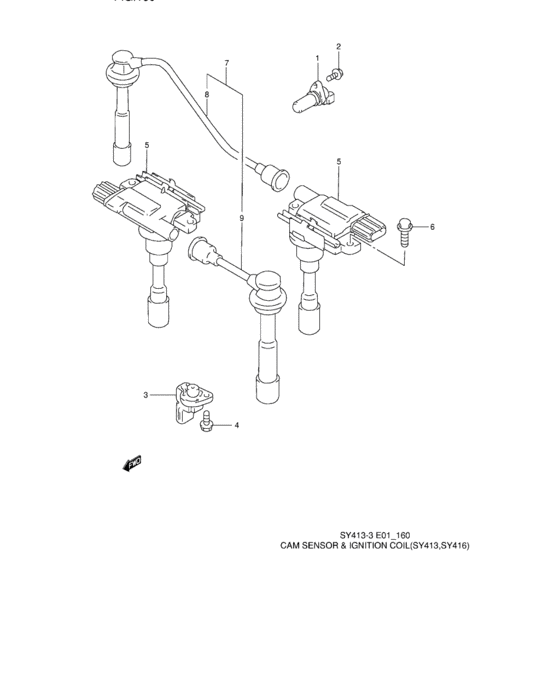

Cam sensor and ignition coil (SY413,SY416) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 33220-50G02-000 | SENSOR ASSY,CAM POSITION |
| 2 | 09103-06186-000 | Bolt - Bolt (6x16) |
| 2 | 01550-06167-000 | Bolt |
| 3 | 33220-70E00-000 | SENSOR ASSY,POSITION |
| 5 | 33400-65G00-000 | Coil assy, ignition |
| 5 | 33400-65G02-000 | COIL ASSY,IGNITION DENSO |
| 6 | 01580-06203-000 | Bolt - Bolt, front |
| 6 | 01580-0620B-000 | Bolt |
| 7 | 33705-66D00-000 | CORD SET,HIGH TENSION |
| 8 | 33730-66D00-000 | CORD,HIGH TENSION NO.2 |
| 9 | 33740-66D00-000 | CORD,HT NO.3 |
| OEM | Part name | Category |
|---|---|---|
| 01550-06167-000 | Bolt | Cam sensor and ignition coil (SY413,SY416) |
| 01580-06203-000 | Bolt - Bolt, front | Cam sensor and ignition coil (SY413,SY416) |
| 01580-0620B-000 | Bolt | Cam sensor and ignition coil (SY413,SY416) |
| 09103-06186-000 | Bolt - Bolt (6x16) | Cam sensor and ignition coil (SY413,SY416) |
| 33220-50G02-000 | SENSOR ASSY,CAM POSITION | Cam sensor and ignition coil (SY413,SY416) |
| 33220-70E00-000 | SENSOR ASSY,POSITION | Cam sensor and ignition coil (SY413,SY416) |
| 33400-65G00-000 | Coil assy, ignition | Cam sensor and ignition coil (SY413,SY416) |
| 33400-65G02-000 | COIL ASSY,IGNITION DENSO | Cam sensor and ignition coil (SY413,SY416) |
| 33705-66D00-000 | CORD SET,HIGH TENSION | Cam sensor and ignition coil (SY413,SY416) |
| 33730-66D00-000 | CORD,HIGH TENSION NO.2 | Cam sensor and ignition coil (SY413,SY416) |
| 33740-66D00-000 | CORD,HT NO.3 | Cam sensor and ignition coil (SY413,SY416) |
