SY418

Suzuki BALENO-ESTEEM · 4,121 parts · 203 categories
SY418 ×

← Back to categories

4,121 items

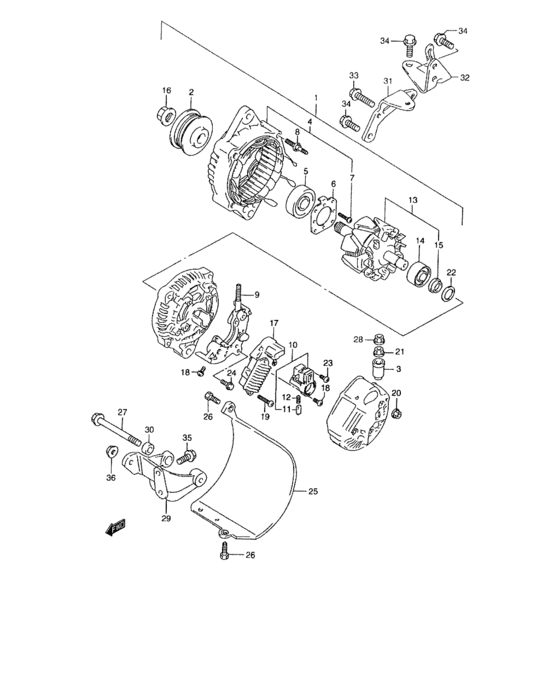

Generator (SY416:Canada, , 3) 59
#OEMPart name
1 31400-60G13-000 Generator assy
1 31400-60G13-REM Alternator
1 31400-60G14-000 GENERATOR ASSY
2 31171-60G10-000 PULLEY
3 31514-82610-000 INSULATOR,TERMINAL
4 31580-60G12-000 Frame assy,drive end
4 31580-60G30-000 FRAME ASSY,DRIVE END
4 31582-60G13-000 Bearing
5 31582-75F00-000 Bearing
5 31582-60G14-000 BEARING,BALL
6 31585-82111-000 RETAINER,BEARING
7 02112-04163-000 Screw
7 02112-0416A-000 SCREW
8 31587-82110-000 Bolt
8 31710-60G13-000 ROTOR ASSY
9 31621-75F00-000 HOLDER ASSY,RECTIFIER
9 31612-60G13-000 Bearing
10 31656-60G10-000 HOLDER ASSY,BRUSH
11 31631-82610-000 BRUSH
12 31635-82610-000 SPRING,BRUSH
13 31710-60G12-000 Rotor assy
13 31710-60G30-000 ROTOR ASSY
14 31612-75F00-000 Bearing
14 31612-60G14-000 BEARING
15 31613-82610-000 COVER,BEARING
16 31775-86510-000 NUT
17 32500-60G13-000 REGULATOR ASSY,GENERATOR
18 02112-04063-000 Screw
18 02112-0406B-000 SCREW
19 02112-74253-000 SCREW
19 32642-80G10-000 SCREW
20 08316-10053-000 Nut
20 08316-1005A-000 NUT
21 08361-15063-000 Nut
21 08361-1506A-000 NUT
22 31615-60G10-000 WASHER
23 31517-75F00-000 SCREW
24 31599-75F00-000 Bolt
25 31614-60G01-000 COVER,GENERATOR
26 09117-06033-000 BOLT(6X12)
27 01550-10853-000 Bolt
27 01550-1085A-000 Bolt
27 09117-06061-000 BOLT(6X16)
28 08316-10063-000 Nut
28 08316-1006B-000 NUT
29 11551-83E00-000 BRACKET,GENERATOR
30 11555-60G00-000 Bush, generator
30 11555-60G01-000 BUSH
31 11561-60G01-000 ARM,GENERATOR ADJUST
32 11581-60G00-000 REINFORCEMENT,GEN ADJ ARM
33 09118-08107-000 BOLT(8X25)
34 01550-08203-000 Bolt
34 01550-0820B-000 Bolt
34 01550-0820A-000 Bolt - Bolt, funnel bracket
35 01550-08253-000 Bolt, rear
35 01550-0825B-000 Bolt
35 01550-0825A-000 Bolt
36 08316-10083-000 Nut
36 08316-1008B-000 NUT
