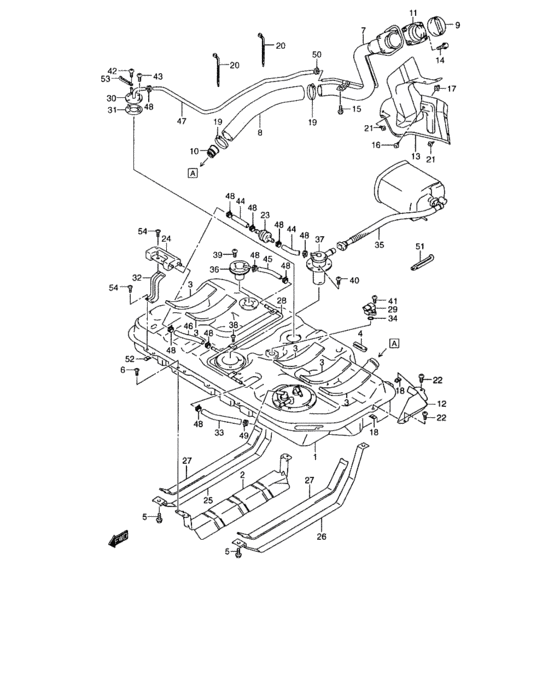

| 02142-05103-000 |
Screw 5x10 |
Fuel tank (01,02 MODEL) |
| 02142-0510B-000 |
SCREW - Bolt |
Fuel tank (01,02 MODEL) |
| 09116-05014-000 |
BOLT(5X20) |
Fuel tank (01,02 MODEL) |
| 09116-06173-000 |
Bolt |
Fuel tank (01,02 MODEL) |
| 09116-06205-000 |
BOLT(6X16) |
Fuel tank (01,02 MODEL) |
| 09118-10052-000 |
BOLT(10X30) |
Fuel tank (01,02 MODEL) |
| 09136-05034-000 |
SCREW(5X16) |
Fuel tank (01,02 MODEL) |
| 09136-05045-000 |
SCREW(5X10) |
Fuel tank (01,02 MODEL) |
| 09148-05018-000 |
NUT |
Fuel tank (01,02 MODEL) |
| 09148-05039-000 |
NUT |
Fuel tank (01,02 MODEL) |
| 09356-55118-600 |
HOSE |
Fuel tank (01,02 MODEL) |
| 09356-55118-960 |
HOSE |
Fuel tank (01,02 MODEL) |
| 09401-11413-000 |
CLIP |
Fuel tank (01,02 MODEL) |
| 09401-11415-000 |
CLIP |
Fuel tank (01,02 MODEL) |
| 09401-12405-000 |
CLIP |
Fuel tank (01,02 MODEL) |
| 09402-57511-000 |
CLAMP |
Fuel tank (01,02 MODEL) |
| 09404-06036-000 |
Clamp(L:80) |
Fuel tank (01,02 MODEL) |
| 09404-06039-000 |
Clamp(L:65) |
Fuel tank (01,02 MODEL) |
| 09404-06432-000 |
CLAMP(L:65) - Clamp (l:80) |
Fuel tank (01,02 MODEL) |
| 09404-06434-000 |
CLAMP(L:80 T:1.0) |
Fuel tank (01,02 MODEL) |
| 09407-25401-000 |
CLAMP(L:235) - Clamp (l:235) |
Fuel tank (01,02 MODEL) |
| 09409-07308-5PK |
CLIP(BLACK) |
Fuel tank (01,02 MODEL) |
| 18135-81050-000 |
VALVE,2WAY CHECK |
Fuel tank (01,02 MODEL) |
| 89101-65G10-000 |
Tank assy,fuel |
Fuel tank (01,02 MODEL) |
| 89201-65G10-000 |
NECK ASSY,FUEL FILLER |
Fuel tank (01,02 MODEL) |
| 89241-60G20-000 |
HOSE,FUEL TANK FILLER |
Fuel tank (01,02 MODEL) |
| 89250-65G10-000 |
PIPE,AIR RECIRCULATION |
Fuel tank (01,02 MODEL) |
| 89255-60G00-000 |
GASKET,BREATHER PIPE |
Fuel tank (01,02 MODEL) |
| 89260-50J10-000 |
CAP ASSY,FUEL FILLER |
Fuel tank (01,02 MODEL) |
| 89260-79E00-000 |
Cap assy, fuel filler |
Fuel tank (01,02 MODEL) |
| 89280-65G00-000 |
VALVE,FUEL TANK INLET |
Fuel tank (01,02 MODEL) |
| 89285-75F00-000 |
PACKING,FUEL FILLER |
Fuel tank (01,02 MODEL) |
| 89311-60G00-000 |
PROTECTOR,FUEL TANK |
Fuel tank (01,02 MODEL) |
| 89315-60G11-000 |
PROTECTOR,FUEL TANK SIDE |
Fuel tank (01,02 MODEL) |
| 89321-60G00-000 |
PROTECTOR,FILLER NECK |
Fuel tank (01,02 MODEL) |
| 89360-65G00-000 |
BELT,TANK FIXER |
Fuel tank (01,02 MODEL) |
| 89370-60G00-000 |
BELT,TANK FIXER,L |
Fuel tank (01,02 MODEL) |
| 89381-60G00-000 |
PAD,FUEL TANK |
Fuel tank (01,02 MODEL) |
| 89385-60G00-000 |
PAD,FUEL TANK BELT |
Fuel tank (01,02 MODEL) |
| 89411-60G10-000 |
SEPARATOR,FUEL AND VAPOR |
Fuel tank (01,02 MODEL) |
| 89420-65G10-000 |
PIPE,FUEL EVAP |
Fuel tank (01,02 MODEL) |
| 89421-79E10-000 |
SENSOR,TANK PRESSURE |
Fuel tank (01,02 MODEL) |
| 89425-79E00-000 |
O-RING,TANK PRESSURE SENSOR |
Fuel tank (01,02 MODEL) |
| 89431-60G00-000 |
BRACKET,SEPARATOR |
Fuel tank (01,02 MODEL) |
| 89445-60G00-000 |
PROTECTOR,TANK FLANGE |
Fuel tank (01,02 MODEL) |
| 89465-65G01-000 |
HOSE,VAPOR CONTROL VALVE |
Fuel tank (01,02 MODEL) |
| 89465-65G10-000 |
Hose, vapor control valve |
Fuel tank (01,02 MODEL) |
| 89466-65G10-000 |
HOSE,PUMP TO PIPE |
Fuel tank (01,02 MODEL) |
| 89485-50G00-000 |
VALVE,FUEL CUT |
Fuel tank (01,02 MODEL) |
| 89491-65G10-000 |
Valve, vapor control |
Fuel tank (01,02 MODEL) |
| 89491-65G60-000 |
VALVE,VAPOR CONTROL |
Fuel tank (01,02 MODEL) |
