SY418

Suzuki BALENO-ESTEEM · 4,121 parts · 203 categories
SY418 ×

← Back to categories

4,121 items

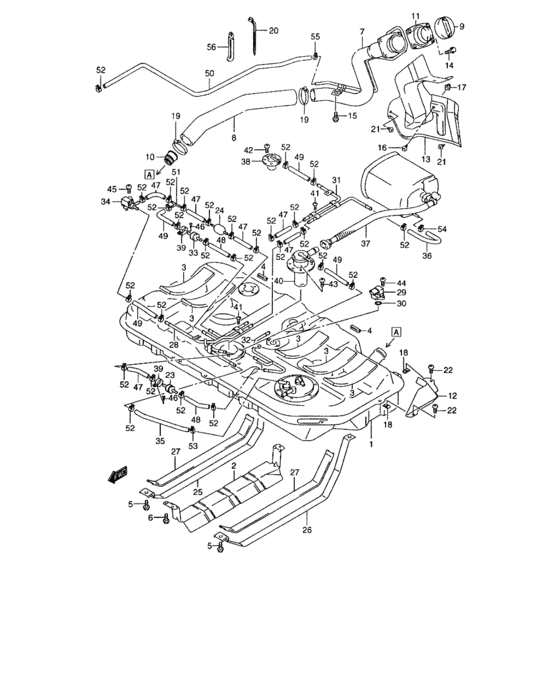

Fuel tank (00 MODEL:SY416,99,00 MODEL:SY418) 52
#OEMPart name
1 89101-65G00-000 Tank assy,fuel
2 89311-60G00-000 PROTECTOR,FUEL TANK
3 89381-60G00-000 PAD,FUEL TANK
4 89445-60G00-000 PROTECTOR,TANK FLANGE
5 09118-10052-000 BOLT(10X30)
6 02142-05103-000 Screw 5x10
6 02142-0510B-000 SCREW - Bolt
7 89201-65G01-000 NECK ASSY,FUEL FILLER
8 89241-60G20-000 HOSE,FUEL TANK FILLER
9 89260-79E00-000 Cap assy, fuel filler
9 89260-50J10-000 CAP ASSY,FUEL FILLER
10 89280-65G00-000 VALVE,FUEL TANK INLET
11 89285-75F00-000 PACKING,FUEL FILLER
12 89315-60G11-000 PROTECTOR,FUEL TANK SIDE
13 89321-60G00-000 PROTECTOR,FILLER NECK
14 09116-05014-000 BOLT(5X20)
15 09116-06173-000 Bolt
15 09116-06205-000 BOLT(6X16)
16 09136-05034-000 SCREW(5X16)
17 09148-05018-000 NUT
18 09148-05039-000 NUT
19 09402-57511-000 CLAMP
20 09407-25401-000 CLAMP(L:235) - Clamp (l:235)
21 09409-07308-5PK CLIP(BLACK)
23 85451-75100-000 VALVE,2WAY CHECK - Valve, check
24 85481-78000-000 VESSEL,SILENCER
25 89360-65G00-000 BELT,TANK FIXER
26 89370-60G00-000 BELT,TANK FIXER,L
27 89385-60G00-000 PAD,FUEL TANK BELT
28 89420-65G00-000 Pipe, fuel evap no.1
29 89421-79E10-000 SENSOR,TANK PRESSURE
30 89425-79E00-000 O-RING,TANK PRESSURE SENSOR
31 89430-65G00-000 Pipe, evap no.2
32 89440-65G00-000 Pipe, vcv
33 89451-65G00-000 VALVE,1WAY CHECK
34 89452-50G20-000 Valve, evap bypass
35 89465-64G00-000 Hose, pipe to can
37 89465-65G01-000 HOSE,VAPOR CONTROL VALVE
38 89485-50G00-000 VALVE,FUEL CUT
39 89485-60B00-000 CLAMP,CHECK VALVE
40 89491-65G00-000 VALVE,VAPOR CONTROL
41 09136-05045-000 SCREW(5X10)
47 09356-55118-600 HOSE
50 09356-55118-960 HOSE
51 09367-06002-000 JOINT,3 WAY
52 09401-11413-000 CLIP
53 09401-12404-000 CLIP
54 09401-12408-000 Clip, pipe to can hose
54 09401-11414-000 CLIP(ID:11.5)
55 09401-11415-000 CLIP
56 09404-06432-000 CLAMP(L:65) - Clamp (l:80)
56 09404-06039-000 Clamp(L:65)
