SY418

Suzuki BALENO-ESTEEM · 4,121 parts · 203 categories

4,121 items

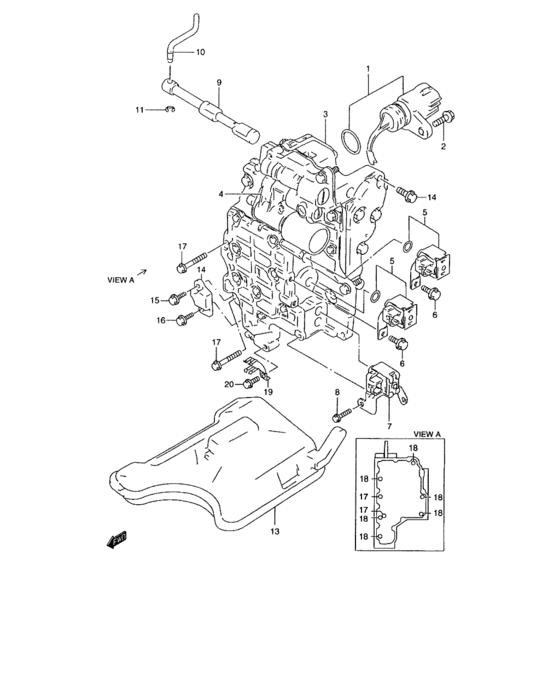

At valve (AT) 22

#	OEM	Part name
1	24892-65G30-000	HARNESS,SOLENOID WIRE
2	29999-57B00-000	Bolt
3	26500-65G30-000	VALVE ASSY,TRANSMISSION
3	26500-65G50-000	VALVE ASSY,TRANSMISSION
3	26500-54G30-000	VALVE ASSY,TRANSMISSION
3	26500-54G50-000	Valve assy, transmission
4	26424-60G10-000	CLAMP,LINE PRESS CONT SOLENOID
5	26426-60G11-000	SOLENOID,T/M CONTROL
6	29983-57B00-000	BOLT,SOLENOID NO.2
7	26427-60G10-000	SOLENOID,DUTY CONTROL
8	26428-60G10-000	BOLT,SOLENOID
9	26591-60G10-000	VALVE,MANUAL
10	26592-60G10-000	ROD,MANUAL VALVE
11	26593-60G10-000	E-RING,MANUAL VALVE
12	26579-60G10-000	BOLT,RR VALVE BODY COVER
13	26445-60G10-000	STRAINER,OIL
14	26441-60G10-000	COVER,SUCTION
15	26443-60G10-000	Bolt
16	26446-60G10-000	BOLT,VALVE BODY NO.3
17	26444-60G10-000	BOLT,VALVE BODY NO.2
19	26448-65G10-000	CLAMP,ATF TEMP WIRING
20	26449-65G10-000	Bolt

OEM	Part name	Category
24892-65G30-000	HARNESS,SOLENOID WIRE	At valve (AT)
26424-60G10-000	CLAMP,LINE PRESS CONT SOLENOID	At valve (AT)
26426-60G11-000	SOLENOID,T/M CONTROL	At valve (AT)
26427-60G10-000	SOLENOID,DUTY CONTROL	At valve (AT)
26428-60G10-000	BOLT,SOLENOID	At valve (AT)
26441-60G10-000	COVER,SUCTION	At valve (AT)
26443-60G10-000	Bolt	At valve (AT)
26444-60G10-000	BOLT,VALVE BODY NO.2	At valve (AT)
26445-60G10-000	STRAINER,OIL	At valve (AT)
26446-60G10-000	BOLT,VALVE BODY NO.3	At valve (AT)
26448-65G10-000	CLAMP,ATF TEMP WIRING	At valve (AT)
26449-65G10-000	Bolt	At valve (AT)
26500-54G30-000	VALVE ASSY,TRANSMISSION	At valve (AT)
26500-54G50-000	Valve assy, transmission	At valve (AT)
26500-65G30-000	VALVE ASSY,TRANSMISSION	At valve (AT)
26500-65G50-000	VALVE ASSY,TRANSMISSION	At valve (AT)
26579-60G10-000	BOLT,RR VALVE BODY COVER	At valve (AT)
26591-60G10-000	VALVE,MANUAL	At valve (AT)
26592-60G10-000	ROD,MANUAL VALVE	At valve (AT)
26593-60G10-000	E-RING,MANUAL VALVE	At valve (AT)
29983-57B00-000	BOLT,SOLENOID NO.2	At valve (AT)
29999-57B00-000	Bolt	At valve (AT)
