Search › Model › SY418
SY418

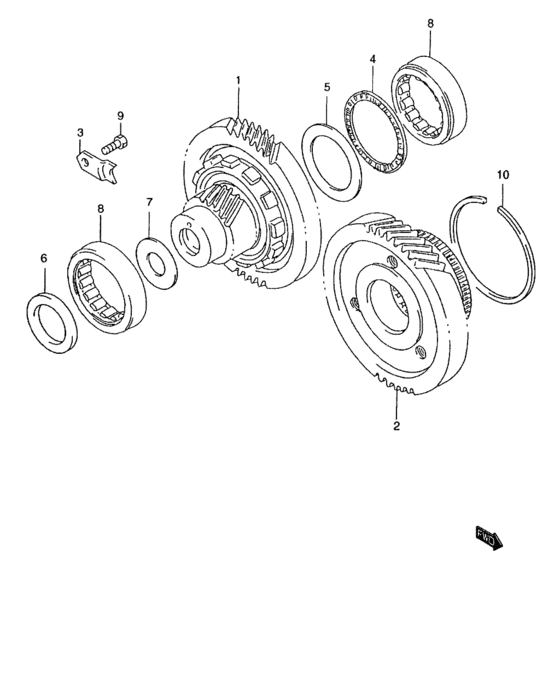

At reduction gear (AT) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 24130-60G11-000 | SHAFT ASSY,COUNTER |
| 1 | 24130-65G50-000 | Shaft assy,counter |
| 1 | 24130-65G90-000 | SHAFT ASSY,COUNTER |
| 2 | 24510-60G11-000 | GEAR ASSY,REDUCTION |
| 3 | 24133-60G10-000 | PLATE,RETAINER |
| 4 | 24186-60G11-000 | BEARING,COUNTER SHAFT |
| 5 | 24187-60G10-000 | RACE,CTSHFT,R |
| 6 | 24188-60G10-000 | BEARING,COUNTER SHAFT,L |
| 7 | 24189-60G10-000 | RACE,CTSHFT,L |
| 8 | 24193-60G10-000 | BEARING,COUNTER SHAFT |
| 9 | 24194-60G10-000 | BOLT,RETAINER PLATE |
| 10 | 24593-60G10-000 | RING,REDUCTION DRIVE GEAR SNAP |
| OEM | Part name | Category |
|---|---|---|
| 24130-60G11-000 | SHAFT ASSY,COUNTER | At reduction gear (AT) |
| 24130-65G50-000 | Shaft assy,counter | At reduction gear (AT) |
| 24130-65G90-000 | SHAFT ASSY,COUNTER | At reduction gear (AT) |
| 24133-60G10-000 | PLATE,RETAINER | At reduction gear (AT) |
| 24186-60G11-000 | BEARING,COUNTER SHAFT | At reduction gear (AT) |
| 24187-60G10-000 | RACE,CTSHFT,R | At reduction gear (AT) |
| 24188-60G10-000 | BEARING,COUNTER SHAFT,L | At reduction gear (AT) |
| 24189-60G10-000 | RACE,CTSHFT,L | At reduction gear (AT) |
| 24193-60G10-000 | BEARING,COUNTER SHAFT | At reduction gear (AT) |
| 24194-60G10-000 | BOLT,RETAINER PLATE | At reduction gear (AT) |
| 24510-60G11-000 | GEAR ASSY,REDUCTION | At reduction gear (AT) |
| 24593-60G10-000 | RING,REDUCTION DRIVE GEAR SNAP | At reduction gear (AT) |
