Search › Model › SY415
SY415

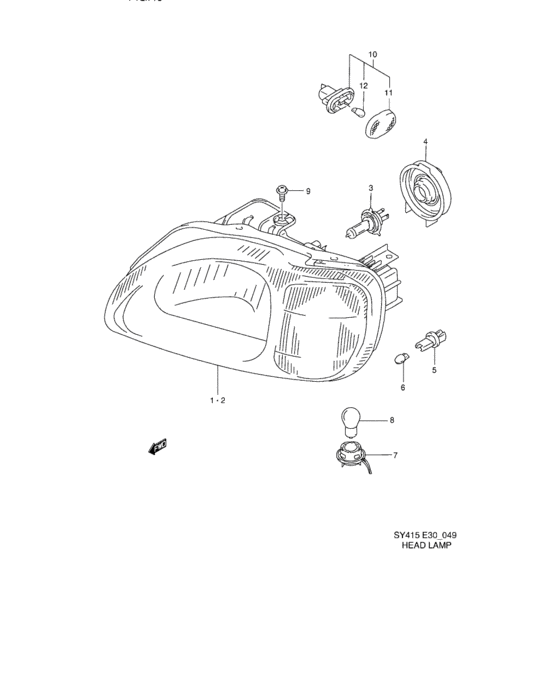

Headlamp (HEADLAMP) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-65G00-000 | ユニット,ヘッドランプ,ライト |
| 1 | 35120-65G02-000 | UNIT,HEADLAMP,R |
| 2 | 35320-65G00-000 | ユニット,ヘッドランプ,レフト |
| 2 | 35320-65G02-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-77A00-000 | COVER,SOCKET |
| 5 | 36118-77A10-000 | SOCKET,POSITION LAMP |
| 6 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 6 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 7 | 35618-65G00-000 | SOCKET&CORD ASSY,TURN |
| 8 | 09471-12045-000 | BULB(12V21W) |
| 9 | 09122-86003-000 | SCREW(6X16) - Bolt (6x16) |
| 10 | 36410-60B11-000 | LAMP ASSY,SIDE TURN SIG |
| 11 | 36412-60B00-000 | LENS,SIDE TURN SIG LAMP - (AMBER) |
| OEM | Part name | Category |
|---|---|---|
| 09122-86003-000 | SCREW(6X16) - Bolt (6x16) | Headlamp (HEADLAMP) |
| 09471-12045-000 | BULB(12V21W) | Headlamp (HEADLAMP) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Headlamp (HEADLAMP) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Headlamp (HEADLAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Headlamp (HEADLAMP) |
| 35120-65G00-000 | ユニット,ヘッドランプ,ライト | Headlamp (HEADLAMP) |
| 35120-65G02-000 | UNIT,HEADLAMP,R | Headlamp (HEADLAMP) |
| 35125-77A00-000 | COVER,SOCKET | Headlamp (HEADLAMP) |
| 35320-65G00-000 | ユニット,ヘッドランプ,レフト | Headlamp (HEADLAMP) |
| 35320-65G02-000 | UNIT,HEADLAMP,L | Headlamp (HEADLAMP) |
| 35618-65G00-000 | SOCKET&CORD ASSY,TURN | Headlamp (HEADLAMP) |
| 36118-77A10-000 | SOCKET,POSITION LAMP | Headlamp (HEADLAMP) |
| 36410-60B11-000 | LAMP ASSY,SIDE TURN SIG | Headlamp (HEADLAMP) |
| 36412-60B00-000 | LENS,SIDE TURN SIG LAMP - (AMBER) | Headlamp (HEADLAMP) |
