SY415

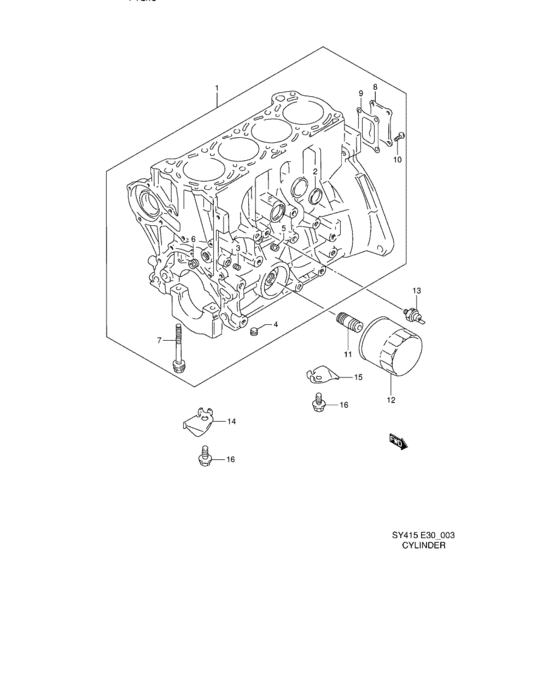

Cylinder (CYLINDER) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 11200-57B01-000 | ブロックアッシ,シリンダ |
| 1 | 11200-57B03-000 | Block assy,cylinder |
| 2 | 09241-30009-000 | Plug - Plug (od:30) |
| 2 | 09241-30010-000 | PLUG |
| 3 | 09246-05006-000 | PLUG(1/8PT,H:5.5) |
| 4 | 09246-06002-000 | PLUG |
| 4 | 09246-08007-000 | PLUG |
| 6 | 09246-08002-000 | PLUG |
| 7 | 11260-50G00-000 | BOLT |
| 7 | 11260-50G01-000 | BOLT,CRANK BEARING CAP |
| 8 | 11221-60A00-000 | PLATE,CYLINDER BLOCK |
| 9 | 11229-60A00-000 | GASKET,CYL BLOCK PLATE |
| 10 | 02122-06123-000 | Screw |
| 10 | 02122-0612B-000 | SCREW |
| 10 | 02122-0612A-000 | SCREW |
| 11 | 11241-73003-000 | STAND,OIL FILTER |
| 12 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 13 | 37820-82001-000 | Switch assy, oil pressure |
| 13 | 37820-820P0-000 | SWITCH ASSY,OIL PRESSURE |
| 14 | 11213-72F01-000 | Plate, breather front |
| 14 | 11213-72F02-000 | PLATE,BREATHER FRONT |
| 15 | 11214-72F01-000 | PLATE,BREATHER REAR |
| 16 | 01550-08163-000 | Bolt, holder |
| 16 | 01550-0816B-000 | Bolt |
| 16 | 01550-0816A-000 | Bolt - Bolt, rear |
| OEM | Part name | Category |
|---|---|---|
| 01550-08163-000 | Bolt, holder | Cylinder (CYLINDER) |
| 01550-0816A-000 | Bolt - Bolt, rear | Cylinder (CYLINDER) |
| 01550-0816B-000 | Bolt | Cylinder (CYLINDER) |
| 02122-06123-000 | Screw | Cylinder (CYLINDER) |
| 02122-0612A-000 | SCREW | Cylinder (CYLINDER) |
| 02122-0612B-000 | SCREW | Cylinder (CYLINDER) |
| 09241-30009-000 | Plug - Plug (od:30) | Cylinder (CYLINDER) |
| 09241-30010-000 | PLUG | Cylinder (CYLINDER) |
| 09246-05006-000 | PLUG(1/8PT,H:5.5) | Cylinder (CYLINDER) |
| 09246-06002-000 | PLUG | Cylinder (CYLINDER) |
| 09246-08002-000 | PLUG | Cylinder (CYLINDER) |
| 09246-08007-000 | PLUG | Cylinder (CYLINDER) |
| 11200-57B01-000 | ブロックアッシ,シリンダ | Cylinder (CYLINDER) |
| 11200-57B03-000 | Block assy,cylinder | Cylinder (CYLINDER) |
| 11213-72F01-000 | Plate, breather front | Cylinder (CYLINDER) |
| 11213-72F02-000 | PLATE,BREATHER FRONT | Cylinder (CYLINDER) |
| 11214-72F01-000 | PLATE,BREATHER REAR | Cylinder (CYLINDER) |
| 11221-60A00-000 | PLATE,CYLINDER BLOCK | Cylinder (CYLINDER) |
| 11229-60A00-000 | GASKET,CYL BLOCK PLATE | Cylinder (CYLINDER) |
| 11241-73003-000 | STAND,OIL FILTER | Cylinder (CYLINDER) |
| 11260-50G00-000 | BOLT | Cylinder (CYLINDER) |
| 11260-50G01-000 | BOLT,CRANK BEARING CAP | Cylinder (CYLINDER) |
| 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | Cylinder (CYLINDER) |
| 37820-82001-000 | Switch assy, oil pressure | Cylinder (CYLINDER) |
| 37820-820P0-000 | SWITCH ASSY,OIL PRESSURE | Cylinder (CYLINDER) |
