SY415

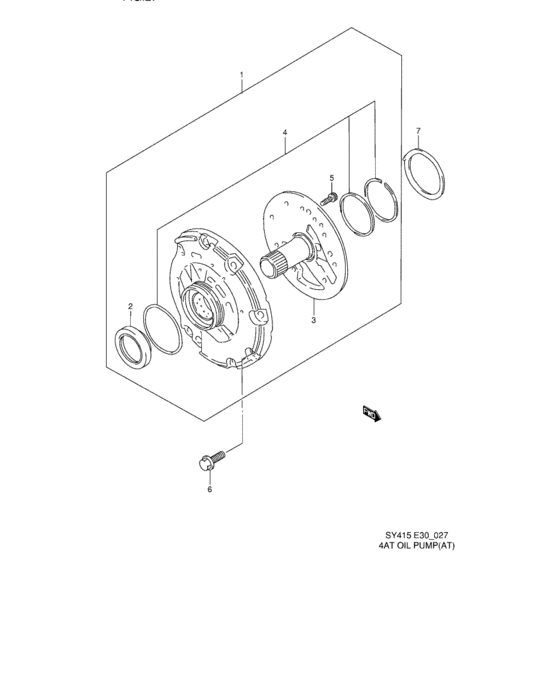

At oil pump (AT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-60GT1-000 | Pump set,oil |
| 1 | 22800-60GT2-000 | PUMP SET,OIL |
| 2 | 22881-60G10-000 | SEAL OIL PUMP OIL |
| 2 | 22881-60G11-000 | SEAL,OIL PUMP OIL |
| 3 | 22820-60G10-000 | COVER,OIL PUMP |
| 3 | 22820-60G11-000 | COVER,OIL PUMP |
| 4 | 22860-60GT1-000 | RING SET,OIL PUMP SEAL |
| 5 | 22892-60G10-000 | BOLT,OIL PUMP COVER |
| 6 | 22893-60G10-000 | Bolt |
| 7 | 26824-60G10-000 | WASHER,REV CL THRUST FR |
| OEM | Part name | Category |
|---|---|---|
| 22800-60GT1-000 | Pump set,oil | At oil pump (AT) |
| 22800-60GT2-000 | PUMP SET,OIL | At oil pump (AT) |
| 22820-60G10-000 | COVER,OIL PUMP | At oil pump (AT) |
| 22820-60G11-000 | COVER,OIL PUMP | At oil pump (AT) |
| 22860-60GT1-000 | RING SET,OIL PUMP SEAL | At oil pump (AT) |
| 22881-60G10-000 | SEAL OIL PUMP OIL | At oil pump (AT) |
| 22881-60G11-000 | SEAL,OIL PUMP OIL | At oil pump (AT) |
| 22892-60G10-000 | BOLT,OIL PUMP COVER | At oil pump (AT) |
| 22893-60G10-000 | Bolt | At oil pump (AT) |
| 26824-60G10-000 | WASHER,REV CL THRUST FR | At oil pump (AT) |
