Search › Model › SY31
SY31

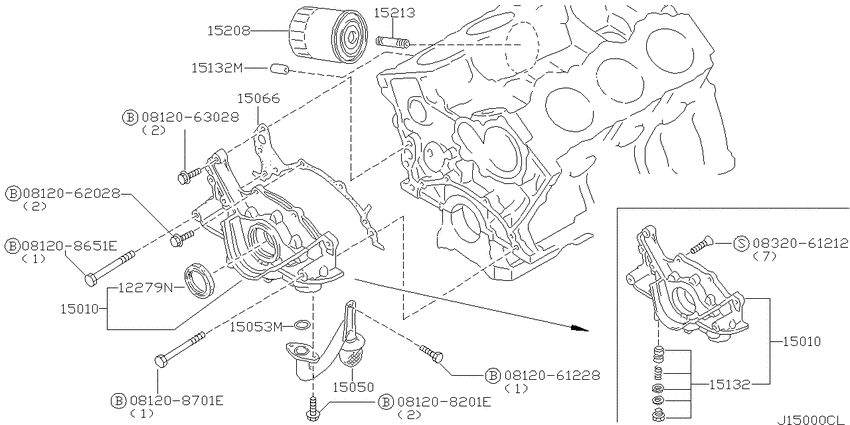

Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) 10
| # | OEM | Part name |
|---|---|---|
| 12279 | 13510-10Y00 | Seal-Oil, Camshaft |
| 15050 | 15050-V5202 | Strainer Assy-Oil |
| 15132 | 15132-V5001 | Valve Assy-Oil Regulator |
| 15132 | 15241-16A01 | Valve Assy-Regulator |
| 15213 | 15213-21001 | Stud-Oil Filter |
| 15213 | 15213-W040A | Stud-oil filter |
| 81208651 | 08120-8651E | Bolt-hexagon |
| 812062028 | 08120-62028 | Bolt-hexagon |
| 812063028 | 08120-63028 | Bolt-hexagon |
| 832061212 | 08320-61212 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08120-62028 | Bolt-hexagon | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 08120-63028 | Bolt-hexagon | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 08120-8651E | Bolt-hexagon | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 08320-61212 | スクリユ-,マシン | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 13510-10Y00 | Seal-Oil, Camshaft | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 15050-V5202 | Strainer Assy-Oil | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 15132-V5001 | Valve Assy-Oil Regulator | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 15213-21001 | Stud-Oil Filter | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 15213-W040A | Stud-oil filter | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
| 15241-16A01 | Valve Assy-Regulator | Lubricating system (2004-01-01 ~ 2007-08-01; VG20P) |
