SY31

Nissan CEDRIC-GLORIA · 1991 · 4,159 parts · 704 categories

4,159 items

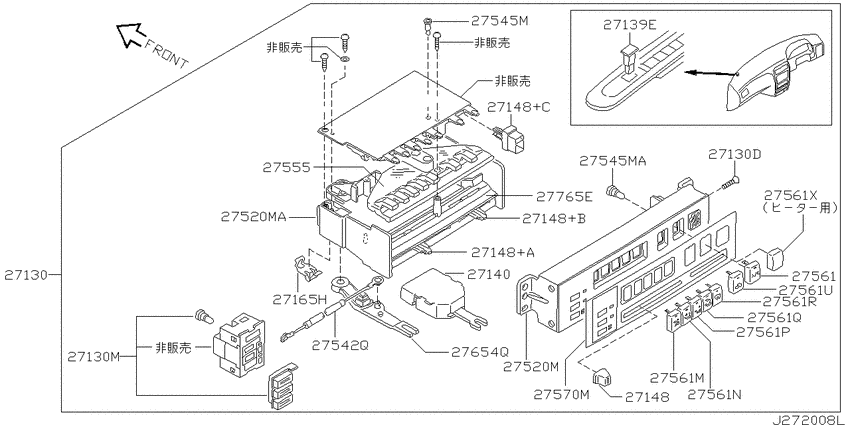

Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S) 68

#	OEM	Part name
27130	27510-0H110	Control Assy
27130	27510-0H120	Control Assy
27130	27510-0H124	Control Assy
27130	27510-VR300	Control Assy
27130	27515-0H100	Control Assy
27130	27515-0H105	Control Assy
27130	27515-0H110	Control Assy
27130	27515-0H115	Control Assy
27130	27515-2H600	Control Assy
27130	27600-0H120	Control Assy-Rear
27130	27510-VR315	Control Assy
27130	27137-8B400	Clip-Control
27139	28579-10V00	Mask-Switch
27140	27660-10V00	Switch-Fan
27140	27660-2H600	Switch-Fan
27148	27148-U7400	Knob-Control
27148	27560-10V01	Knob-Control
27148	27560-4P060	Knob-Control
27148	27560-10V12	Knob-Control
27148	27560-19V00	Knob-Control
27148	27560-10V11	Knob-Control
27148	27560-4P010	Knob-Control
27148	27560-10V10	Knob-Control
27148	27560-4P020	Knob-Control
27148	27560-4P000	Knob-Control
27148	27560-40Y00	Knob-Control
27148	27560-32Y10	Knob-Control
27165	01552-00401	CLIP-WIRING HARNESS
27165	27156-S0100	Clamp-Cable
27520	27520-10V00	Base-Control
27520	27521-0H100	Base-Control
27542	27542-10V00	Cable
27545	27545-VR200	Lamp Assy-Heater Control
27555	27555-10V00	Lens-Heater Control
27555	27555-4P000	Lens-Heater Control
27555	27555-32Y10	Lens-Heater Control
27555	27555-50J05	Lens-Heater Control
27561	27561-10V00	Button-Air Conditioner
27561	27562-VR000	Button-Ventilator
27561	27563-VR000	Button-Bilevel
27561	27564-VR000	Button-Foot
27561	27565-VR000	Button-Defroster Foot
27561	27566-4P000	Button-Defroster
27561	27566-VR000	Button-Defroster
27561	27566-4P010	Button-Defroster
27561	27567-10V00	Button-Recirc
27561	27567-4P000	Button-Recirc
27561	27561-4P000	Button-Auto Air Conditioner
27561	27561-4P010	Button-Auto Air Conditioner
27561	27569-10V00	Button-Blind
27561	27569-VR200	Button-Blind
27561	27561-VR310	Button-Air Conditioner
27561	27562-32Y00	Button-Ventilator
27561	27562-65E10	BUTTON-VENTILATOR
27561	27563-32Y00	Button-Bilevel
27561	27564-32Y00	Button-Foot
27561	27565-32Y00	Button-Defroster Foot
27561	27566-32Y00	Button-Defroster
27561	27567-32Y00	Button-Recirc
27570	27570-0H110	Finisher Assy-Control
27570	27570-0H120	Finisher Assy-Control
27570	27570-18V00	Finisher Assy-Control
27570	27570-VR310	Finisher Assy-Control
27570	27570-2H601	Finisher Assy-Control
27570	27570-40Y00	Finisher Assy-Control
27654	27527-0H100	Lever-Temp Control
27654	27527-40Y00	Lever-Temp Control
27765	27522-10V00	Bracket-Control

OEM	Part name	Category
01552-00401	CLIP-WIRING HARNESS	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27137-8B400	Clip-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27148-U7400	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27156-S0100	Clamp-Cable	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27510-0H110	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27510-0H120	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27510-0H124	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27510-VR300	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27510-VR315	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27515-0H100	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27515-0H105	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27515-0H110	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27515-0H115	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27515-2H600	Control Assy	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27520-10V00	Base-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27521-0H100	Base-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27522-10V00	Bracket-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27527-0H100	Lever-Temp Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27527-40Y00	Lever-Temp Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27542-10V00	Cable	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27545-VR200	Lamp Assy-Heater Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27555-10V00	Lens-Heater Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27555-32Y10	Lens-Heater Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27555-4P000	Lens-Heater Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27555-50J05	Lens-Heater Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-10V01	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-10V10	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-10V11	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-10V12	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-19V00	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-32Y10	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-40Y00	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-4P000	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-4P010	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-4P020	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27560-4P060	Knob-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27561-10V00	Button-Air Conditioner	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27561-4P000	Button-Auto Air Conditioner	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27561-4P010	Button-Auto Air Conditioner	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27561-VR310	Button-Air Conditioner	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27562-32Y00	Button-Ventilator	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27562-65E10	BUTTON-VENTILATOR	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27562-VR000	Button-Ventilator	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27563-32Y00	Button-Bilevel	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27563-VR000	Button-Bilevel	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27564-32Y00	Button-Foot	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27564-VR000	Button-Foot	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27565-32Y00	Button-Defroster Foot	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27565-VR000	Button-Defroster Foot	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27566-32Y00	Button-Defroster	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27566-4P000	Button-Defroster	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27566-4P010	Button-Defroster	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27566-VR000	Button-Defroster	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27567-10V00	Button-Recirc	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27567-32Y00	Button-Recirc	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27567-4P000	Button-Recirc	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27569-10V00	Button-Blind	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27569-VR200	Button-Blind	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27570-0H110	Finisher Assy-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27570-0H120	Finisher Assy-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27570-18V00	Finisher Assy-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27570-2H601	Finisher Assy-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27570-40Y00	Finisher Assy-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27570-VR310	Finisher Assy-Control	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27600-0H120	Control Assy-Rear	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27660-10V00	Switch-Fan	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
27660-2H600	Switch-Fan	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
28579-10V00	Mask-Switch	Control unit (2005-12-01 ~ 2007-08-01; 標準エアコン (A/P有); S)
