SXV11

Toyota CAMRY-VISTA-AURION · 1992 · 4,907 parts · 210 categories
SXV11 ×

← Back to categories

4,907 items

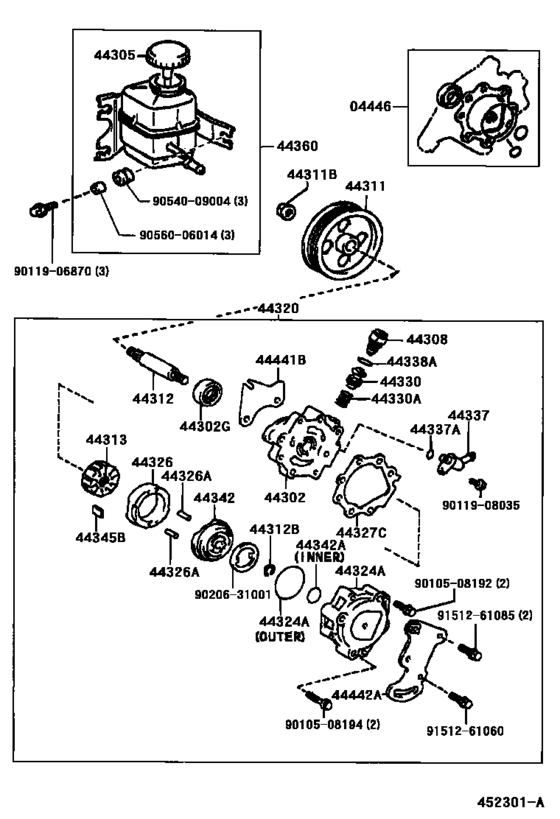

Vane Pump & Reservoir (Power Steering) ([08.1997 - ] (9708- )SXV1#..JPP) 116
#OEMPart name
4446 04446-20090 Gasket Kit, Power Steering Pump
4446 04446-34010 Gasket Kit, Power Steering Pump
4446 04446-53030 Gasket Kit, Power Steering Pump
44302 44302-20060 Housing Sub-Assy, Vane Pump, Front
44302 44302-32061 Housing Sub-Assy, Vane Pump, Front
44302 90311-18007 Seal, Oil, No.2(For Vane Pump Housing)
44302 90311-18015 Seal, Oil, No.2(For Vane Pump Housing)
44305 44305-32020 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-32040 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-32030 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-28051 Cap Sub-Assy, Vane Pump Oil Reservoir
44308 44308-33010 Union Sub-Assy, Pressure Port
44308 44308-33060 Union Sub-Assy, Pressure Port
44308 44308-33070 Union Sub-Assy, Pressure Port
44311 44311-20060 Pulley, Vane Pump
44311 44311-32050 Pulley, Vane Pump
44311 90178-12003 Nut(For Vane Pump Pulley)
44311 90179-12022 Nut(For Vane Pump Pulley)
44312 44312-12030 Shaft, Vane Pump
44312 44312-32020 Shaft, Vane Pump
44312 90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-22040 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44313 44313-26060 Rotor, Vane Pump
44313 44313-26070 Rotor, Vane Pump
44313 44313-26080 Rotor, Vane Pump
44313 44313-26090 Rotor, Vane Pump
44313 44313-26100 Rotor, Vane Pump
44320 44320-33040 Pump Assy, Vane
44320 44320-33070 Pump Assy, Vane
44320 44320-33060 Pump Assy, Vane
44320 44320-33071 Pump Assy, Vane
44320 44320-33100 Pump Assy, Vane
44324 44324-12031 Housing Sub-Assy, Vane Pump, Rear
44324 44324-32031 Housing, Pump, Rear
44324 44324-34010 Housing, Pump, Rear
44326 44325-30100 Ring, Cam(For Vane Pump)
44326 44325-30110 Ring, Cam(For Vane Pump)
44326 44325-30120 Ring, Cam(For Vane Pump)
44326 44325-30130 Ring, Cam(For Vane Pump)
44326 44325-30140 Ring, Cam(For Vane Pump)
44326 44325-32270 Ring, Cam(For Vane Pump)
44326 44325-32280 Ring, Cam(For Vane Pump)
44326 44325-32290 Ring, Cam(For Vane Pump)
44326 44325-32300 Ring, Cam(For Vane Pump)
44326 44325-32310 Ring, Cam(For Vane Pump)
44326 90250-04047 Pin, Straight(For Vane Pump Cam Ring)
44326 90250-04049 Pin, Straight(For Vane Pump Cam Ring)
44326 90250-04071 Pin, Straight(For Vane Pump Cam Ring)
44327 44327-26010 Gasket, Vane Pump Housing
44330 44330-26011 Valve Assy, Flow Control
44330 44330-26021 Valve Assy, Flow Control
44330 44330-26031 Valve Assy, Flow Control
44330 44330-26041 Valve Assy, Flow Control
44330 44330-26051 Valve Assy, Flow Control
44330 44330-26061 Valve Assy, Flow Control
44330 44330-26071 Valve Assy, Flow Control
44330 44330-26081 Valve Assy, Flow Control
44330 44330-26091 Valve Assy, Flow Control
44330 44330-26101 Valve Assy, Flow Control
44330 44330-26111 Valve Assy, Flow Control
44330 44330-26121 Valve Assy, Flow Control
44330 44330-33190 Valve Assy, Flow Control
44330 44330-60070 Valve Assy, Flow Control
44330 44330-33200 Valve Assy, Flow Control
44330 44330-60080 Valve Assy, Flow Control
44330 44330-33210 Valve Assy, Flow Control
44330 44330-60090 Valve Assy, Flow Control
44330 44330-33220 Valve Assy, Flow Control
44330 44330-60100 Valve Assy, Flow Control
44330 44330-33230 Valve Assy, Flow Control
44330 44330-60110 Valve Assy, Flow Control
44330 44330-33240 Valve Assy, Flow Control
44330 44330-60120 Valve Assy, Flow Control
44330 90501-12103 Spring, Compression(For Flow Control Valve)
44330 90501-13034 Spring, Compression(For Flow Control Valve)
44337 44337-12020 Union, Power Steering Suction Port
44337 44337-28030 Union, Power Steering Suction Port
44337 90301-11010 Pin, Straight(For Vane Pump Cam Ring)
44337 90301-11016 Ring, O(For Power Steering Suction Port)
44337 90301-12003 Ring, O(For Power Steering Suction Port)
44338 90301-19003 Ring, O(For Pressure Port Union)
44338 90301-19018 Ring, O(For Pressure Port Union)
44338 90301-19013 Seal, Oil, No.1(For Vane Pump Housing)
44342 44342-20010 Plate, Vane Pump Side, Rear
44342 44342-26020 Plate, Vane Pump Side, Rear
44342 90301-18007 Ring, O(For Pump Housing Rear)
44342 90301-47001 Ring, O(For Vane Pump Side Plate Rear)
44342 90301-53004 Ring, O(For Pump Housing Rear)
44345 44345-12010 Plate, Vane Pump
44345 44345-12020 Plate, Vane Pump
44345 44345-12030 Plate, Vane Pump
44345 44345-12040 Plate, Vane Pump
44345 44345-12050 Plate, Vane Pump
44345 44345-26010 Plate, Vane Pump
44345 44345-26020 Plate, Vane Pump
44345 44345-26030 Plate, Vane Pump
44345 44345-26040 Plate, Vane Pump
44345 44345-26050 Plate, Vane Pump
44360 44360-33020 Reservoir Assy, Vane Pump Oil
44441 44441-33010 Bracket, Pump, Front
44441 44441-33011 Bracket, Pump, Front
44442 44442-33010 Bracket, Vane Pump, Rear
44442 44442-33011 Bracket, Vane Pump, Rear
9010508192 90105-08192 New Genuine Part
9010508194 90105-08194 New Genuine Part
9011906870 90119-06870 BOLT WWASHER
9011908035 90119-08035 New Genuine Part
9020631001 90206-31001 WASHER WAVE
9054009004 90540-09004 Cushion(For Vane Pump Oil Reservoir)
9056006014 90560-06014 Spacer(For Vane Pump Oil Reservoir)
9151261060 91512-61060 Bolt(For Transaxle Case & Engine Setting)
9151261085 91512-61085 New Genuine Part
