SXV11

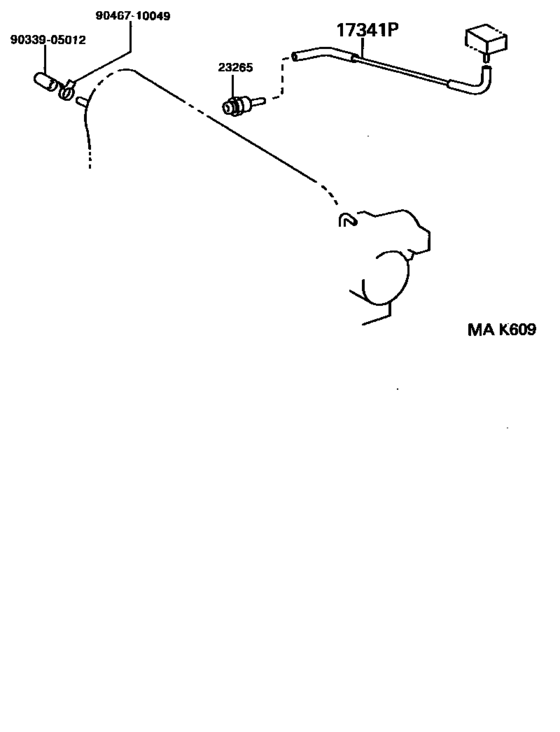

Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) 8
| # | OEM | Part name |
|---|---|---|
| 17341 | 17341-74260 | Hose, Air |
| 23265 | 90917-11023 | Filter, Gas, No.1 |
| 23265 | 90917-11037 | Filter, Gas, No.1 |
| 23265 | 90917-11039 | Filter, Gas, No.1 |
| 23265 | 90917-11042 | Filter, Gas, No.1 |
| 9033905012 | 90339-05012 | New Genuine Part |
| 9046710049 | 90467-10049 | Clamp Or Clip(For Fuel Hose Set) |
| 9046710049 | 90467-10149 | Clip, No.2(For Idle-Up Hose) |
| OEM | Part name | Category |
|---|---|---|
| 17341-74260 | Hose, Air | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90339-05012 | New Genuine Part | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90467-10049 | Clamp Or Clip(For Fuel Hose Set) | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90467-10149 | Clip, No.2(For Idle-Up Hose) | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90917-11023 | Filter, Gas, No.1 | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90917-11037 | Filter, Gas, No.1 | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90917-11039 | Filter, Gas, No.1 | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
| 90917-11042 | Filter, Gas, No.1 | Vacuum Piping ([08.1997 - ] (9708- )3SFE,5SFE..JPP) |
