Search › Model › SXV11

SXV11

Toyota CAMRY-VISTA-AURION · 1992 · 4,907 parts · 210 categories

4,907 items

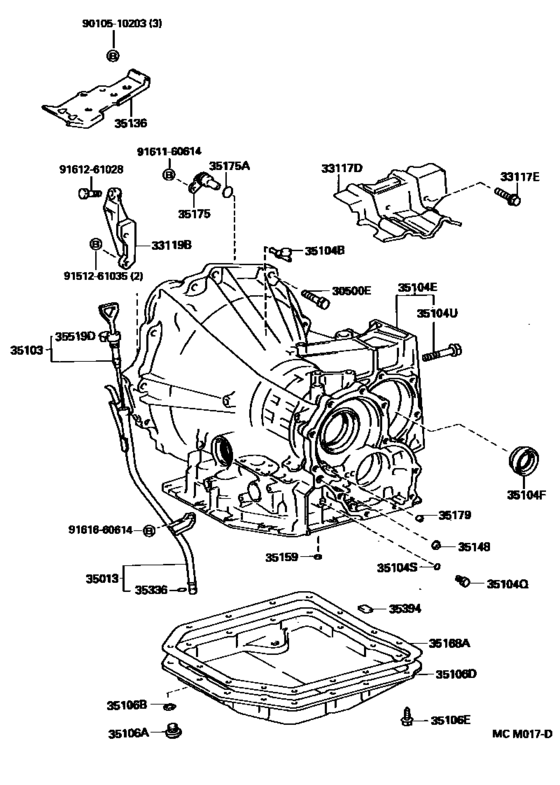

Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM) 44

#	OEM	Part name
30500	90105-08040	Bolt(For Plate Bolt Lock)
30500	91641-H0820	Bolt
30500	90105-10077	Bolt(For Transaxle Case Protector)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
33117	33117-32060	Protector, Automatic Transmission Case
35013	35013-33010	Tube Sub-Assy, Transmission Oil Filler
35013	35013-33040	Tube Sub-Assy, Transmission Oil Filler
35013	35013-33070	Tube Sub-Assy, Transmission Oil Filler
35103	35103-33010	Gage Sub-Assy, Transmission Oil Level
35103	35103-33060	Gage Sub-Assy, Transmission Oil Level
35103	35103-33100	Gage Sub-Assy, Transmission Oil Level
35104	90930-03089	Plug, Breather, No.1 (Atm)
35104	35104-32101	Case Sub-Assy, Automatic Transaxle
35104	35104-32102	Case Sub-Assy, Automatic Transaxle
35104	90105-10203	New Genuine Part
35104	91642-H0822	New Genuine Part
35104	35104-32170	Case Sub-Assy, Automatic Transaxle
35104	90311-35019	Seal, Oil, No.2(For Transaxle Case)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90105-12052	Bolt (For Transaxle Case)
35104	90105-12263	Bolt (For Rear Axle Carrier)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-32012	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35136	35136-33010	Hanger, Transmission,no.1
35148	35148-16010	Gasket (For Automatic Transfer Case)
35159	35159-32011	Gasket, Brake Drum
35168	35168-32010	Gasket, Automatic Transaxle Oil Pan
35175	35175-32010	Cap, Transaxle Case, No.2
35175	90301-21002	Ring, O (For Transaxle Case Cap)
35179	35179-32010	Gasket, Overdrive Brake
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35519	35519-32030	Label, Automatic Transmission Information
35519	35519-32040	Label, Automatic Transmission Information
9151261035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9151261035	90080-10204	New Genuine Part
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161261028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9161660614	91616-60614	Bolt (For Rear Differential Breather Plug Oil Deflector)

OEM	Part name	Category
33117-32060	Protector, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35013-33010	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35013-33040	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35013-33070	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35103-33010	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35103-33060	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35103-33100	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35104-32101	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35104-32102	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35104-32170	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35106-32012	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35136-33010	Hanger, Transmission,no.1	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35159-32011	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35168-32010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35175-32010	Cap, Transaxle Case, No.2	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35179-32010	Gasket, Overdrive Brake	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35519-32030	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
35519-32040	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90080-10204	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90105-10203	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90105-12052	Bolt (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90105-12263	Bolt (For Rear Axle Carrier)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90301-21002	Ring, O (For Transaxle Case Cap)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90311-35019	Seal, Oil, No.2(For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
90930-03089	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91616-60614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
91642-H0822	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.1992 - ] A140E (9208- )SXV1#..JPP..ATM)
