SXV11

Toyota CAMRY-VISTA-AURION · 1992 · 4,907 parts · 210 categories
SXV11 ×

← Back to categories

4,907 items

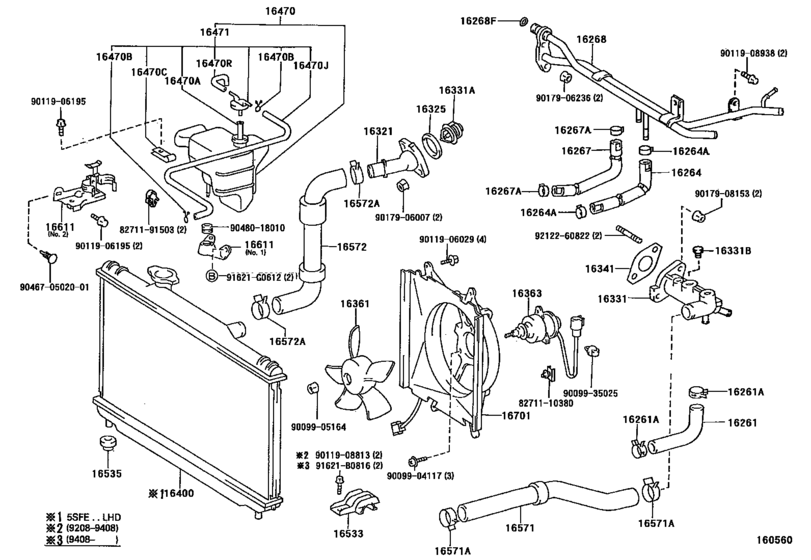

Radiator & Water Outlet ([08.1992 - 08.1997] (9208-9708)5SFE..JPP ; (9208-9708)3SFE..JPP..ATM) 77
#OEMPart name
16261 16261-74010 Hose, Water By-Pass
16261 16261-74100 Hose, Water By-Pass
16261 90467-22003 Clip(For Ventilation Hose No.2)
16261 90467-21010 Clip(For Ventilation Hose No.2)
16264 16264-74101 Hose, Water By-Pass, No.2
16264 90467-20005 Clip(For Ventilation Hose No.2)
16264 96134-41900 Clip Or Clamp(For Ventilation Hose)
16267 16267-74081 Hose, Water By-Pass, No.3
16268 16268-74162 Pipe, Water By-Pass, No.1
16268 16268-74163 Pipe, Water By-Pass, No.1
16268 16268-74200 Pipe, Water By-Pass, No.1
16268 96761-24017 Ring, O(For Water By-Pass Pipe)
16321 16321-03030 Inlet, Water
16321 16321-03060 Inlet, Water
16321 16321-74030 Inlet, Water
16321 16321-74050 Inlet, Water
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16331-74170 Outlet, Water
16331 16331-74220 Outlet, Water
16331 16331-74260 Outlet, Water
16331 90916-03060 Thermostat
16331 90916-03090 Thermostat
16331 90345-53007 Plug, W/head Taper Screw, No.1
16331 90345-53009 Plug, W/head Taper Screw, No.1
16341 16341-63011 Gasket, Water Outlet
16341 16341-74020 Gasket, Water Outlet
16361 16361-74060 Fan
16363 16363-11020 Motor, Cooling Fan
16470 16470-74180 Tank Assy, Radiator Reserve
16470 16470-74181 Tank Assy, Radiator Reserve
16470 90119-06195 New Genuine Part
16470 16470-74330 Tank Assy, Radiator Reserve
16470 16470-74390 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16471-74180 Bracket(For Radiator Reserve Tank)
16470 16478-74180 Hose, No.3(For Radiator Reserve Tank)
16470 16479-74181 Hose, No.3(For Radiator Reserve Tank)
16470 16472-74330 Hose, No.2(For Radiator Reserve Tank)
16470 16477-74180 Hose, No.2(For Radiator Reserve Tank)
16470 16479-74180 Hose, No.2(For Radiator Reserve Tank)
16471 16405-74170 Cap Sub-Assy, Reserve Tank
16471 16405-74171 Cap Sub-Assy, Reserve Tank
16471 16405-74310 Cap Sub-Assy, Reserve Tank
16533 16533-62020 Support, Radiator, Upper
16535 16535-74150 Support, Radiator, Lower
16571 16571-74190 Hose, Radiator, Inlet
16571 16571-74191 Hose, Radiator, Inlet
16571 82711-1E070 Wire, Fuse To Fuse(for Combustion Heater)
16571 16571-74360 Hose, Radiator, Inlet
16571 90467-34003 Clip(For Oil Return Hose)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16572 16572-74180 Hose, Radiator, Outlet
16572 16572-74181 Hose, Radiator, Outlet
16611 16611-74080 Bracket, Radiator Reserve Tank
16611 16612-74010 Bracket, Radiator Reserve Tank
16611 16612-74020 Bracket, Radiator Reserve Tank
16701 16711-74410 Shroud Sub-Assy, Fan
91621 91621-B0816 BOLT WWASHER
91621 91621-G0612 New Genuine Part
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8271191503 82711-91503 Wire, Fuse To Fuse(for Combustion Heater)
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009905164 90099-05164 Nut
9009935025 90099-35025 New Genuine Part
9011906029 90119-06029 New Genuine Part
9011906029 91651-G0616 BOLT WWASHER
9011908813 90119-08813 BOLT W-WASHER
9011908938 90119-08938 New Genuine Part
9011908938 90119-08B27 New Genuine Part
9017906007 90179-06007 Nut
9017906236 90179-06236 NUT
9017908153 90179-08153 NUT
9048018010 90480-18010 Grommet, Radiator Reserve Tank Hose
9212260822 92122-60822 Stud
904670502001 90467-05020-01 Clip(For Floor Carpet Set Bracket)
