Search › Model › SXV11

SXV11

Toyota CAMRY-VISTA-AURION · 1992 · 4,907 parts · 210 categories
SXV11 ×

← Back to categories

4,907 items

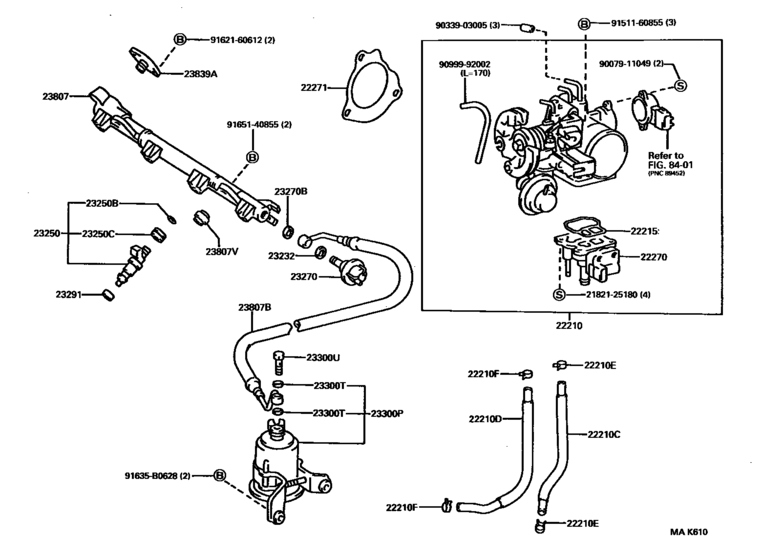

Fuel Injection System ([08.1997 - ] (9708- )3SFE,5SFE..JPP) 82
#OEMPart name
22210 22210-74590 Body Assy, Throttle
22210 22210-74591 Body Assy, Throttle
22210 22210-7A350 Body Assy, Throttle
22210 16282-74050 Hose, Water By-Pass, No.1
22210 16282-74080 Hose, Water By-Pass, No.1
22210 16283-74010 Hose, Water By-Pass, No.1
22210 16283-74050 Hose, Water By-Pass, No.1
22210 16282-74100 Hose, Water By-Pass, No.1
22210 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose)
22210 96135-51300 Clamp, Hose
22210 22210-74580 Body Assy, Throttle
22210 22210-74581 Body Assy, Throttle
22215 22215-74400 Gasket, Throttle Body Cover
22270 22270-74090 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-74190 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-74340 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-74100 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-74200 Valve Assy, Idle Speed Control(For Thlottle Body)
22271 22271-74021 Gasket, Throttle Body
22271 22271-74022 Gasket, Throttle Body
22271 22271-74070 Gasket, Throttle Body
23091 23091-62010 Tube Sub-Assy, Fuel Pump
23091 77209-41010 Tube Sub-Assy, Fuel Pump
23206 23206-62010 Bracket, Fuel Pump
23206 77203-41020 Bracket, Fuel Pump
23206 77169-60010 Gasket, Fuel Pump Bracket
23217 23217-62020 Filter, Fuel Pump
23220 23220-03020 Pump Assy, Fuel
23220 23220-74020 Pump Assy, Fuel
23220 23217-0D070 Filter, Fuel Pump
23220 23221-28280 Pump Assy, Fuel (without filter)
23220 23229-16010 Clip(For Fuel Pump Filter)
23220 23221-16490 Pump Assy, Fuel
23232 23232-41081 Gasket(For Fuel Pump Hose)
23232 23279-74010 Gasket(For Fuel Pump Hose)
23233 23239-11010 Hose, Fuel Pump
23233 23239-16010 Hose, Fuel Pump
23233 23239-63010 Hose, Fuel Pump
23233 90467-12067 Clip(For Fuel Pump Hose)
23233 90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)
23243 23243-16010 Wire, Fuel Pump Motor
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
23250 23209-74100 Injector Assy, Fuel
23250 90301-07001 Ring, O(For Fuel Injector)
23250 90301-07024 Ring, O(For Fuel Injector)
23250 90480-13005 Grommet(For Fuel Injector)
23270 23207-46010 Damper Assy, Fuel Pressure Pulsation
23270 23207-74010 Damper Assy, Fuel Pressure Pulsation
23280 23280-20020 Regulator Assy, Fuel Pressure
23280 23280-74100 Regulator Assy, Fuel Pressure
23291 23291-41010 Insulator, Injector Vibration
23300 23300-29055 Filter, Fuel(For Efi)
23300 23300-79305 Filter, Fuel(For Efi)
23300 90430-12026 Gasket
23300 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
23300 96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)
23300 23300-20050 Filter, Fuel(For Fuel Tank)
23491 23491-74010 Clamp, Fuel Filter Earth
23807 23807-74060 Pipe Sub-Assy, Fuel Delivery
23807 23814-74090 Pipe Sub-Assy, Fuel Delivery
23807 23271-74330 Hose, Fuel Delivery Pipe
23807 23271-74430 Hose, Fuel Delivery Pipe
23807 90560-11020 Spacer, No.1(For Delivery Pipe)
23807 90561-08053 Spacer, No.1(For Delivery Pipe)
23839 23839-74010 Plug, Fuel Pipe, No.1
91635 91635-B0628 New Genuine Part
91635 91631-B0625 BOLT W-WASHER
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
9007911049 90079-11049 SCREW WWASHER
9011906351 90119-06351 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9030106011 90301-06011 Ring, O(For Fuel Pressure Regulator)
9033903005 90339-03005 Plug, No.1
9099992002 90999-92002 Air Hose (300 mm)
9151160855 91511-60855 New Genuine Part
9151160855 91511-B0855 BOLT FLANGE
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9165140855 91651-40855 New Genuine Part
9331514012 93315-14012 Screw with washer
9331914008 93319-14008 SCREW
