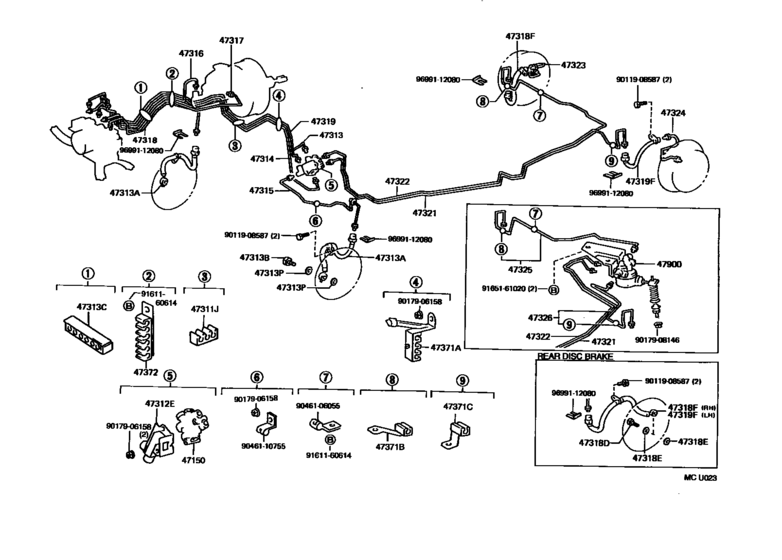

Brake Tube & Clamp ([08.1992 - 08.1997] W(ABS) (9208-9708)JPP..RHD) 51
#OEMPart name
47150 47150-12260 Valve Assy, Proportioning
47150 47150-16040 Valve Assy, Proportioning
47150 90413-10205 Valve Assy, Proportioning
47312 90904-13014 Way(For Front Brake Tube)
47313 47313-33010 Tube, Front Brake, No.3
47313 47313-33040 Tube, Front Brake, No.3
47313 90947-02652 Hose, Flexible, No.1(For Front)
47313 90947-02734 Hose, Flexible, No.1(For Front)
47313 90947-02653 Hose, Flexible, No.1(For Front)
47313 90947-02736 Hose, Flexible, No.1(For Front)
47313 90947-02875 Hose, Flexible, No.1(For Front)
47313 90947-02876 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314 47314-33010 Tube, Front Brake, No.4
47314 47314-33090 Tube, Front Brake, No.4
47315 47315-33010 Tube, Front Brake, No.5
47315 47315-33090 Tube, Front Brake, No.5
47318 90947-02670 Hose, Flexible(For Rear Rh)
47318 90947-02752 Hose, Flexible(For Rear Rh)
47318 90947-02750 Hose, Flexible(For Rear Rh)
47318 90947-02877 Hose, Flexible(For Rear Rh)
47319 90947-02671 Hose, Flexible(For Rear Lh)
47319 90947-02753 Hose, Flexible(For Rear Lh)
47319 90947-02751 Hose, Flexible(For Rear Lh)
47319 90947-02878 Hose, Flexible(For Rear Lh)
47321 47321-33040 Tube, Rear Brake, No.1
47321 47321-33050 Tube, Rear Brake, No.1
47322 47322-33040 Tube, Rear Brake, No.2
47322 47322-33050 Tube, Rear Brake, No.2
47323 47323-33030 Tube, Rear Brake, No.3 - REAR BRAKE, NO.5
47324 47324-33030 Tube, Rear Brake, No.4 - REAR BRAKE, NO.6
47325 47325-33010 Tube, Rear Brake, No.5
47326 47326-33010 Tube, Rear Brake, No.6
47371 47371-33010 Clamp, Brake Tube, No.1
47371 47371-33260 Clamp, Brake Tube, No.2
47371 47371-32130 Clamp, Brake Tube, No.6
47371 47371-32140 Clamp, Brake Tube, No.7
47900 47900-33020 Valve Assy, Load Sensing W/spring
47900 47900-33070 Valve Assy, Load Sensing W/spring
9011908587 90119-08587 New Genuine Part
9011908587 90129-08007 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046106055 90461-06055 Clamp, Brake Tube, No.1
9046110755 90461-10755 Clamp, Brake Tube, No.3
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9699112080 96991-12080 Clip
