SXV11

Toyota CAMRY-VISTA-AURION · 1992 · 4,907 parts · 210 categories

4,907 items

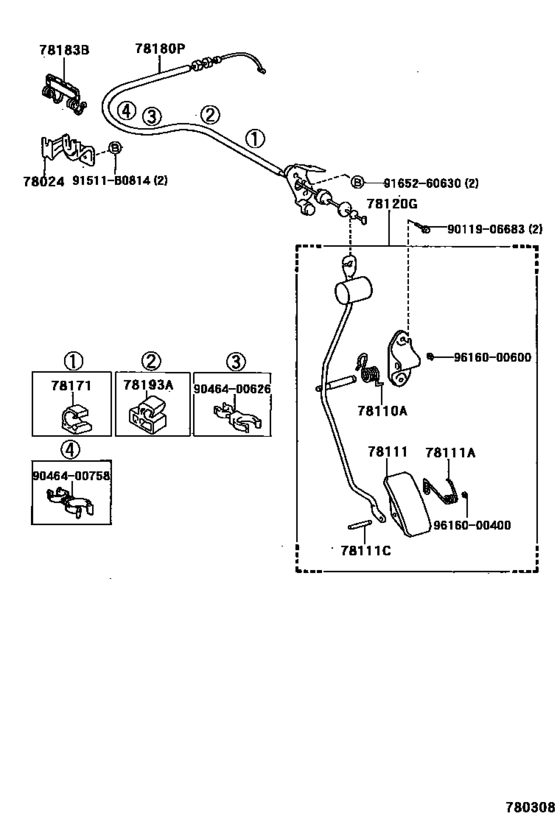

Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP) 21

#	OEM	Part name
78024	78024-33020	Bracket Sub-Assy, Accelerator Control Cable
78024	78024-33030	Bracket Sub-Assy, Accelerator Control Cable
78110	90508-18048	Spring (For Accelerator Pedal Rod)
78110	90508-23069	Spring (For Accelerator Pedal Rod)
78111	78111-12100	Pedal, Accelerator
78111	90508-18046	Spring (For Accelerator Pedal)
78111	90249-05001	Pin (For Accelerator Pedal)
78120	78120-33030	Rod Assy, Accelerator Pedal
78120	78120-33040	Rod Assy, Accelerator Pedal
78171	78171-33010	Bracket, Accelerator Control No.2 Rod, Rh
78180	78180-33070	Cable Assy, Accelerator Control
78180	78180-33210	Cable Assy, Accelerator Control
78183	78183-33020	Clamp, Accelerator Control Cable
78193	78193-33010	Support, Accelerator Control Cable, No.3
91511	91511-B0814	BOLT
9011906683	90119-06683	New Genuine Part
9046400626	90464-00626	New Genuine Part
9046400758	90464-00758	Clamp, Throttle Cable, No.5
9165260630	91652-60630	New Genuine Part
9616000400	96160-00400	Ring, E(For Release Arm)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78024-33020	Bracket Sub-Assy, Accelerator Control Cable	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78024-33030	Bracket Sub-Assy, Accelerator Control Cable	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78111-12100	Pedal, Accelerator	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78120-33030	Rod Assy, Accelerator Pedal	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78120-33040	Rod Assy, Accelerator Pedal	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78171-33010	Bracket, Accelerator Control No.2 Rod, Rh	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78180-33070	Cable Assy, Accelerator Control	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78180-33210	Cable Assy, Accelerator Control	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78183-33020	Clamp, Accelerator Control Cable	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
78193-33010	Support, Accelerator Control Cable, No.3	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90119-06683	New Genuine Part	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90249-05001	Pin (For Accelerator Pedal)	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90464-00626	New Genuine Part	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90464-00758	Clamp, Throttle Cable, No.5	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90508-18046	Spring (For Accelerator Pedal)	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90508-18048	Spring (For Accelerator Pedal Rod)	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
90508-23069	Spring (For Accelerator Pedal Rod)	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
91511-B0814	BOLT	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
91652-60630	New Genuine Part	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
96160-00400	Ring, E(For Release Arm)	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([08.1992 - ] (9208- )SXV1#..JPP)
