Search › Model › SXV10

SXV10

Toyota SCEPTER · 1992 · 5,440 parts · 185 categories

5,440 items

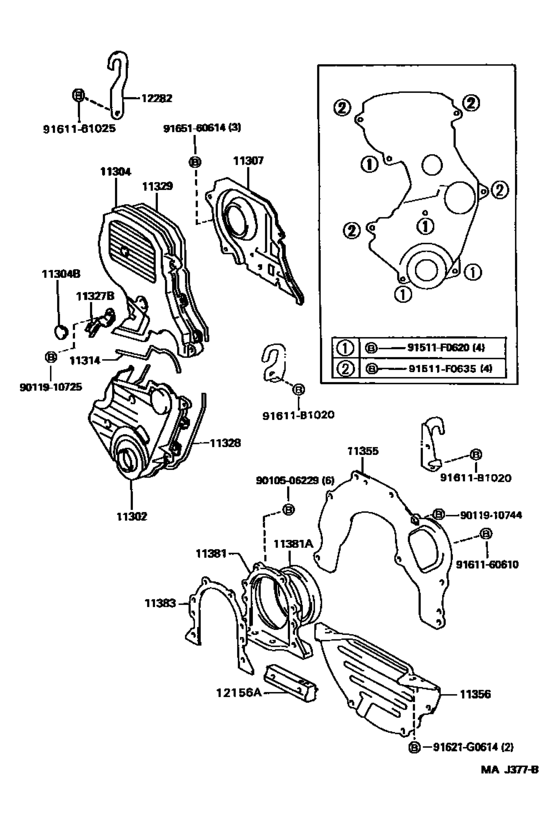

Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE) 40

#	OEM	Part name
11302	11302-74011	Cover Sub-Assy, Timing Chain Or Belt
11302	11302-74040	Cover Sub-Assy, Timing Chain Or Belt
11304	11303-74030	Cover, Timing Chain Or Belt, No.2
11304	11303-74050	Cover, Timing Chain Or Belt, No.2
11304	90950-01489	Plug, Semi Circular(For Chain Cover No.2)
11307	11304-74030	Cover, Sub-Assy, Timing Belt, No.3
11307	11304-74040	Cover, Sub-Assy, Timing Belt, No.3
11314	11319-03020	Gasket, Timing Chain No.2 Cover
11314	11319-63010	Gasket, Timing Chain No.2 Cover
11314	11319-74030	Gasket, Timing Chain No.2 Cover
11327	11327-74010	Stay, Timing Belt Cover
11328	11328-03020	Gasket, Timing Gear Or Chain Cover
11328	11328-74010	Gasket, Timing Gear Or Chain Cover
11328	11328-74060	Gasket, Timing Gear Or Chain Cover
11329	11329-03020	Gasket, Timing Gear Rear Cover
11329	11329-74050	Gasket, Timing Gear Rear Cover
11329	11329-74080	Gasket, Timing Gear Rear Cover
11355	11355-74010	Plate, Rear End
11356	11356-74040	Plate, Rear End, No.2
11381	11381-63012	Retainer, Engine Rear Oil Seal
11381	90311-85006	Seal, Engine Rear Oil
11381	90311-85009	Seal, Engine Rear Oil
11381	90311-85007	Seal, Engine Rear Oil
11383	11383-74021	Gasket, Engine Rear Oil Seal Retainer
12156	12156-74011	Insulator, Oil Pan
12282	12282-74030	Hanger, Engine, No.2
91511	91511-F0620	New Genuine Part
91511	91511-F0635	BOLT
91611	91611-B1020	Bolt (For Transfer Case)Cover No.2
91611	91612-B1020	Bolt (For Transfer Case)Cover No.2
91621	91621-G0614	Bolt(For Transaxle & Engine Setting)
9010506229	90105-06229	New Genuine Part
9010506229	91511-80614	BOLT FLANGE
9011910725	90119-10725	New Genuine Part
9011910744	90119-10744	New Genuine Part
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9165160614	91651-60614	Bolt

OEM	Part name	Category
11302-74011	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11302-74040	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11303-74030	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11303-74050	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11304-74030	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11304-74040	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11319-03020	Gasket, Timing Chain No.2 Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11319-63010	Gasket, Timing Chain No.2 Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11319-74030	Gasket, Timing Chain No.2 Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11327-74010	Stay, Timing Belt Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11328-03020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11328-74010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11328-74060	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11329-03020	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11329-74050	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11329-74080	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11355-74010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11356-74040	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11381-63012	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
11383-74021	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
12156-74011	Insulator, Oil Pan	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
12282-74030	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90105-06229	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90119-10725	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90119-10744	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90311-85006	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90311-85007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90311-85009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
90950-01489	Plug, Semi Circular(For Chain Cover No.2)	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91511-80614	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91511-F0620	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91511-F0635	BOLT	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91611-61025	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91611-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91612-61025	Bolt (For Control Shaft Cover)	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91621-G0614	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
91651-60614	Bolt	Timing Gear Cover & Rear End Plate ([08.1995 - ] (9508- )5SFE)
