Search › Model › SXV10

SXV10

Toyota SCEPTER · 1992 · 5,440 parts · 185 categories
SXV10 ×

← Back to categories

5,440 items

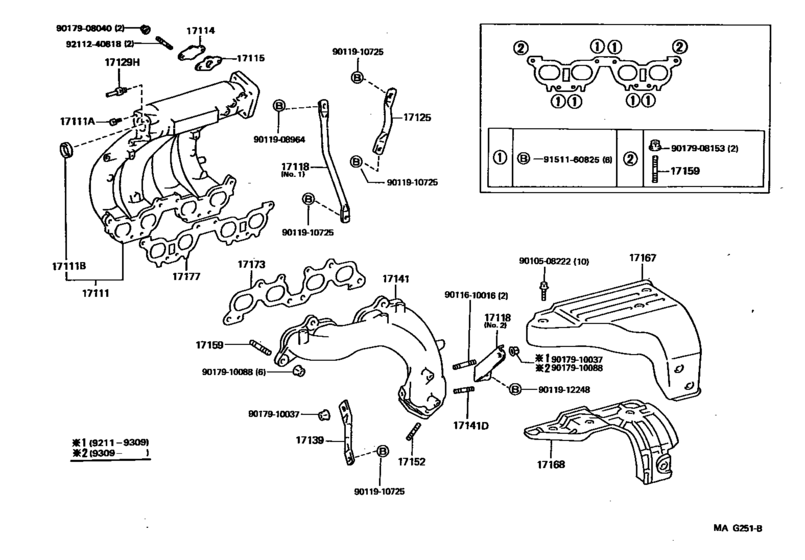

Manifold ([11.1992 - ] (9211- )5SFE) 33
#OEMPart name
17111 17101-74180 Manifold, Intake
17111 90345-51006 Plug, W/head Taper Screw, No.2
17111 96411-44000 Plug, Tight, No.1
17114 25617-74020 Plate, Intake Manifold Hole Cover
17115 25627-74011 Gasket, Intake Manifold Hole Cover
17118 17118-74200 Stay, Manifold
17118 17118-74230 Stay, Manifold
17118 17118-74290 Stay, Manifold
17125 17125-74090 Stay, Surge Tank, No.1
17129 90404-51026 Union(For Vacuum Hose To Carburetor)
17139 17139-74110 Stay, Manifold, No.2
17141 17141-74130 Manifold, Exhaust
17141 90116-08253 Bolt, Stud(For Oxygen Sensor)
17152 90116-10058 Bolt, Stud(For Manifold Extension)
17159 90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17159 92122-60822 Stud
17167 17167-74180 Insulator, Exhaust Manifold Heat, No.1
17168 17168-74080 Insulator, Exhaust Manifold Heat, No.2
17173 17173-74040 Gasket, Exhaust Manifold To Head
17177 17177-74070 Gasket, Intake Manifold To Head, No.1
9010508222 90105-08222 BOLT WASHER BASED
9011610016 90116-10016 Bolt, Stud(For Manifold To Exhaust Pipe)
9011908964 90119-08964 New Genuine Part
9011910725 90119-10725 New Genuine Part
9011912248 90119-12248 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908153 90179-08153 NUT
9017910037 90179-10037 NUT
9017910037 90179-10128 NUT
9017910088 90179-10088 Nut
9151160825 91511-60825 Bolt (For Transfer Stiffener Plate)
9151160825 91511-B0825 Bolt (For Transfer Stiffener Plate)
9211240818 92112-40818 New Genuine Part
