Search › Model › SXV10

SXV10

Toyota SCEPTER · 1992 · 5,440 parts · 185 categories

5,440 items

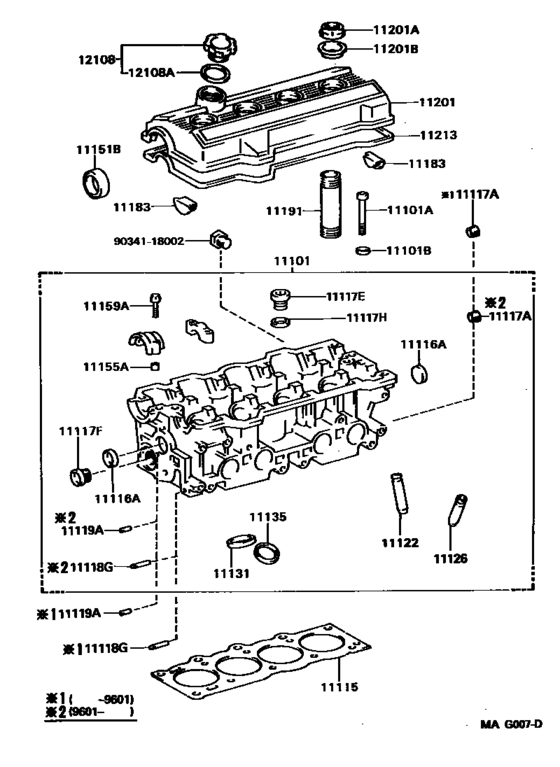

Cylinder Head ([11.1992 - ] (9211- )5SFE) 39

#	OEM	Part name
11101	11101-74160	Head Sub-Assy, Cylinder
11101	11101-74900	Head Sub-Assy, Cylinder
11101	11101-79165	Head Sub-Assy, Cylinder
11101	11101-79175	Head Sub-Assy, Cylinder
11101	90109-10132	Bolt(For Cylinder Head Set)
11101	90201-11026	Washer, Plate(For Cylinder Head Set)
11115	11115-74080	Gasket, Cylinder Head
11115	11115-74081	Gasket, Cylinder Head
11116	96411-42800	Plug, Tight, No.1
11117	90344-53011	Plug, W/head Taper Screw, No.1
11117	90341-24090	Plug, W/head Taper Screw, No.1
11117	90341-32031	Plug, W/head Straight Screw, No.2
11117	90430-24246	Gasket(For Cylinder Head Screw Plug)
11118	90249-06084	Pin, Slotted Spring, No.1
11119	90250-06003	Pin, Straight
11122	11122-74030	Bush, Intake Valve Guide
11122	11123-74030	Bush, Intake Valve Guide
11126	11122-16010	Bush, Intake Valve Guide
11126	11122-16020	Bush, Intake Valve Guide
11126	11123-16010	Bush, Intake Valve Guide
11131	11131-74020	Seat, Intake Valve
11131	11132-74020	Seat, Intake Valve
11135	11135-74030	Seat, Exhaust Valve
11135	11136-74030	Seat, Exhaust Valve
11151	90311-38046	Seal, Oil(For Camshaft Setting)
11151	90311-38067	Seal, Oil(For Camshaft Setting)
11155	90253-10004	Pin, Ring W/head
11159	90119-07009	Bolt(For Camshaft Housing Set)
11183	11183-74010	Plug, Semicircular
11191	11191-74030	Tube, Spark Plug
11201	11201-74050	Cover Sub-Assy, Cylinder Head
11201	11201-74051	Cover Sub-Assy, Cylinder Head
11201	90179-28004	Nut, Cap(For Cylinder Head Cover)
11201	90480-30025	Washer, Seal(For Cylinder Head Cover)
11213	11213-74020	Gasket, Cylinder Head Cover
12108	12180-13030	Cap Sub-Assy, Oil Filler
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
9034118002	90341-18002	Plug, No.1

OEM	Part name	Category
11101-74160	Head Sub-Assy, Cylinder	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11101-74900	Head Sub-Assy, Cylinder	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11101-79165	Head Sub-Assy, Cylinder	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11101-79175	Head Sub-Assy, Cylinder	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11115-74080	Gasket, Cylinder Head	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11115-74081	Gasket, Cylinder Head	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11122-16010	Bush, Intake Valve Guide	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11122-16020	Bush, Intake Valve Guide	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11122-74030	Bush, Intake Valve Guide	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11123-16010	Bush, Intake Valve Guide	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11123-74030	Bush, Intake Valve Guide	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11131-74020	Seat, Intake Valve	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11132-74020	Seat, Intake Valve	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11135-74030	Seat, Exhaust Valve	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11136-74030	Seat, Exhaust Valve	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11183-74010	Plug, Semicircular	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11191-74030	Tube, Spark Plug	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11201-74050	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11201-74051	Cover Sub-Assy, Cylinder Head	Cylinder Head ([11.1992 - ] (9211- )5SFE)
11213-74020	Gasket, Cylinder Head Cover	Cylinder Head ([11.1992 - ] (9211- )5SFE)
12180-13030	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.1992 - ] (9211- )5SFE)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90109-10132	Bolt(For Cylinder Head Set)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90119-07009	Bolt(For Camshaft Housing Set)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90179-28004	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90201-11026	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90249-06084	Pin, Slotted Spring, No.1	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90250-06003	Pin, Straight	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90253-10004	Pin, Ring W/head	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90311-38046	Seal, Oil(For Camshaft Setting)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90311-38067	Seal, Oil(For Camshaft Setting)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90341-18002	Plug, No.1	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90341-24090	Plug, W/head Taper Screw, No.1	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90341-32031	Plug, W/head Straight Screw, No.2	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90344-53011	Plug, W/head Taper Screw, No.1	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90430-24246	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
90480-30025	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([11.1992 - ] (9211- )5SFE)
96411-42800	Plug, Tight, No.1	Cylinder Head ([11.1992 - ] (9211- )5SFE)
