Search › Model › SXV10

SXV10

Toyota SCEPTER · 1992 · 5,440 parts · 185 categories

5,440 items

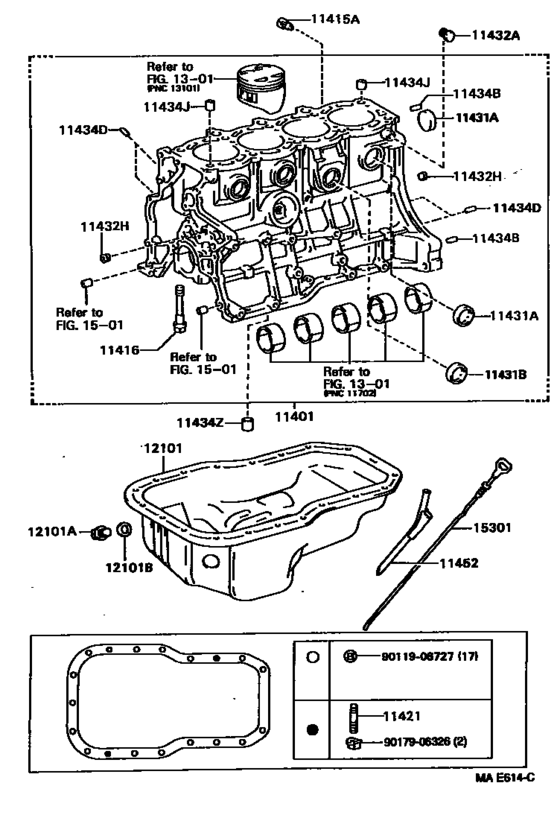

Cylinder Block ([11.1992 - ] (9211- )5SFE) 27

#	OEM	Part name
11401	11401-79565	Block Sub-Assy, Cylinder
11401	11401-79566	Block Sub-Assy, Cylinder
11415	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11416	90105-10028	Bolt(For Crankshaft Bearing Cap Set)
11421	90116-06022	Bolt, Stud(For Valve Push Rod Cover)
11431	96411-43500	Plug, Tight, No.1
11431	96411-44000	Plug, Tight, No.1
11432	90345-51006	Plug, W/head Taper Screw, No.2
11432	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90250-06003	Pin, Straight
11434	90253-13017	Pin, Ring W/head
11434	90253-13001	Pin, Ring (For Cylinder Head Set)
11452	11452-74070	Guide, Oil Level Gage
12101	12101-74110	Pan Sub-Assy, Oil
12101	12101-74091	Pan Sub-Assy, Oil
12101	12129-54010	Plug, Oil Pan
12101	91651-60614	Bolt
12101	12101-74111	Pan Sub-Assy, Oil
12101	90341-12026	Plug, Drain
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
15301	15301-74070	Gage Sub-Assy, Oil Level
9011906727	90119-06727	BOLT W-WASHER
9011906727	90080-11177	New Genuine Part
9017906326	90179-06326	NUT W-WASHER
9017906326	90182-A0010	New Genuine Part

OEM	Part name	Category
11401-79565	Block Sub-Assy, Cylinder	Cylinder Block ([11.1992 - ] (9211- )5SFE)
11401-79566	Block Sub-Assy, Cylinder	Cylinder Block ([11.1992 - ] (9211- )5SFE)
11452-74070	Guide, Oil Level Gage	Cylinder Block ([11.1992 - ] (9211- )5SFE)
12101-74091	Pan Sub-Assy, Oil	Cylinder Block ([11.1992 - ] (9211- )5SFE)
12101-74110	Pan Sub-Assy, Oil	Cylinder Block ([11.1992 - ] (9211- )5SFE)
12101-74111	Pan Sub-Assy, Oil	Cylinder Block ([11.1992 - ] (9211- )5SFE)
12129-54010	Plug, Oil Pan	Cylinder Block ([11.1992 - ] (9211- )5SFE)
15301-74070	Gage Sub-Assy, Oil Level	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90080-11177	New Genuine Part	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90105-10028	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90116-06022	Bolt, Stud(For Valve Push Rod Cover)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90119-06727	BOLT W-WASHER	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90179-06326	NUT W-WASHER	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90182-A0010	New Genuine Part	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90250-06003	Pin, Straight	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90253-13001	Pin, Ring (For Cylinder Head Set)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90253-13017	Pin, Ring W/head	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90341-12026	Plug, Drain	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90345-51006	Plug, W/head Taper Screw, No.2	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([11.1992 - ] (9211- )5SFE)
91651-60614	Bolt	Cylinder Block ([11.1992 - ] (9211- )5SFE)
96411-43500	Plug, Tight, No.1	Cylinder Block ([11.1992 - ] (9211- )5SFE)
96411-44000	Plug, Tight, No.1	Cylinder Block ([11.1992 - ] (9211- )5SFE)
