SXU10

Toyota HARRIER · 1997 · 4,897 parts · 167 categories

4,897 items

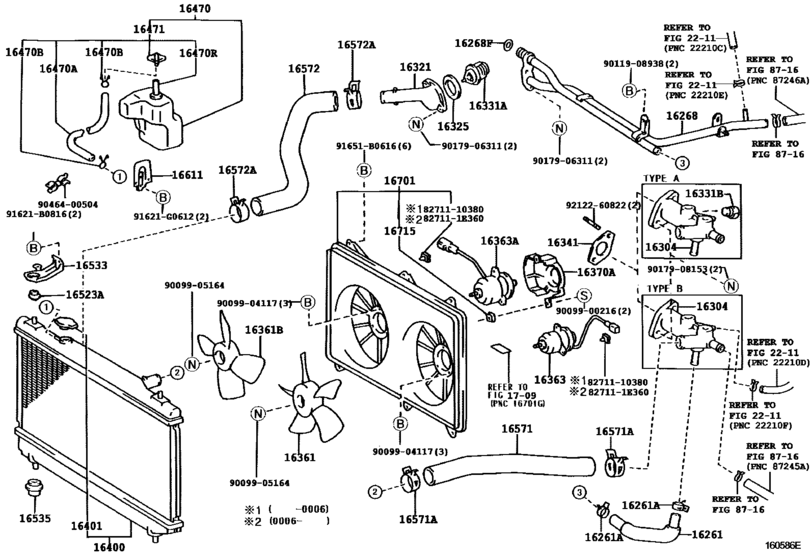

Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE) 65

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16261	16261-74100	Hose, Water By-Pass
16261	90467-22003	Clip(For Ventilation Hose No.2)
16261	90467-21010	Clip(For Ventilation Hose No.2)
16268	16268-74190	Pipe, Water By-Pass, No.1
16268	96761-24017	Ring, O(For Water By-Pass Pipe)
16304	16304-74280	Outlet Sub-Assy, Water
16304	16304-74290	Outlet Sub-Assy, Water
16321	16321-74050	Inlet, Water
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	90916-03090	Thermostat
16331	90345-53007	Plug, W/head Taper Screw, No.1
16341	16341-74020	Gasket, Water Outlet
16361	16361-74140	Fan
16361	88453-33010	Fan, No.2
16363	16363-74280	Motor, Cooling Fan
16363	16363-74320	Motor, Cooling Fan
16363	16363-74290	Motor, Cooling Fan, No.2
16363	16363-74330	Motor, Cooling Fan, No.2
16370	88899-33020	Plate Cover
16400	16400-7A550	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16401	16401-72090	Cap Sub-Assy, Radiator
16401	16401-20353	Cap Sub-Assy, Radiator
16401	16401-36030	Cap Sub-Assy, Radiator
16403	16403-7A551	Core Sub-Assy, Radiator
16403	16403-7A550	Core Sub-Assy, Radiator
16406	16406-62060	Support(For Oil Cooler)
16442	16442-7A310	Ring, O(For Radiator Upper Tank)
16462	16442-46090	Ring, O(For Radiator Upper Tank)
16470	16470-74340	Tank Assy, Radiator Reserve
16470	16478-74340	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	90445-12078	Hose(For Radiator Breather)
16471	16405-74320	Cap Sub-Assy, Reserve Tank
16491	16491-54790	Cooler, Oil(For Atm)
16491	16492-50020	Ring, O(For Atm Oil Cooler)
16491	16493-62060	Washer, Plate(For Atm Oil Cooler)
16495	16495-50020	Nut, Flare(For Atm Oil Cooler)
16495	16495-7A550	Nut, Flare(For Atm Oil Cooler)
16523	16523-74010	Cushion, Sub-Radiator Support
16533	16533-74310	Support, Radiator, Upper
16535	16535-74210	Support, Radiator, Lower
16571	16571-74450	Hose, Radiator, Inlet
16571	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-74320	Hose, Radiator, Outlet
16611	16611-74170	Bracket, Radiator Reserve Tank
16701	16711-28190	Shroud Sub-Assy, Fan
16701	16711-74690	Shroud Sub-Assy, Fan
16715	88688-18030	Bracket, Fan Shroud
91621	91621-B0816	BOLT WWASHER
91621	91621-G0612	New Genuine Part
91651	91651-B0616	BOLT WWASHER
8271110380	82711-10380	Wire, Fuse To Fuse(for Combustion Heater)
9009900216	90099-00216	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9011908938	90119-08938	New Genuine Part
9011908938	90119-08B27	New Genuine Part
9017906311	90179-06311	New Genuine Part
9017908153	90179-08153	NUT
9046400504	90464-00504	New Genuine Part
9212260822	92122-60822	Stud

OEM	Part name	Category
16261-74100	Hose, Water By-Pass	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16268-74190	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16304-74280	Outlet Sub-Assy, Water	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16304-74290	Outlet Sub-Assy, Water	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16321-74050	Inlet, Water	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16341-74020	Gasket, Water Outlet	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16361-74140	Fan	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16363-74280	Motor, Cooling Fan	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16363-74290	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16363-74320	Motor, Cooling Fan	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16363-74330	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16400-7A550	Radiator Assy	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16401-20353	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16401-36030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16401-72090	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16403-7A550	Core Sub-Assy, Radiator	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16403-7A551	Core Sub-Assy, Radiator	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16405-74320	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16442-46090	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16442-7A310	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16470-74340	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16478-74340	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16491-54790	Cooler, Oil(For Atm)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16492-50020	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16493-62060	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16495-50020	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16495-7A550	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16523-74010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16533-74310	Support, Radiator, Upper	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16535-74210	Support, Radiator, Lower	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16571-74450	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16572-74320	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16611-74170	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16711-28190	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
16711-74690	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
82711-10380	Wire, Fuse To Fuse(for Combustion Heater)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
88453-33010	Fan, No.2	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
88688-18030	Bracket, Fan Shroud	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
88899-33020	Plate Cover	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90099-00216	New Genuine Part	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90099-05164	Nut	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90119-08938	New Genuine Part	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90119-08B27	New Genuine Part	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90179-06311	New Genuine Part	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90179-08153	NUT	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90345-53007	Plug, W/head Taper Screw, No.1	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90464-00504	New Genuine Part	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90467-22003	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
90916-03090	Thermostat	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
91621-G0612	New Genuine Part	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
92122-60822	Stud	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
96761-24017	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([12.1997 - ] (9712- )5SFE)
