Search › Model › SXU10

SXU10

Toyota HARRIER · 1997 · 4,897 parts · 167 categories

4,897 items

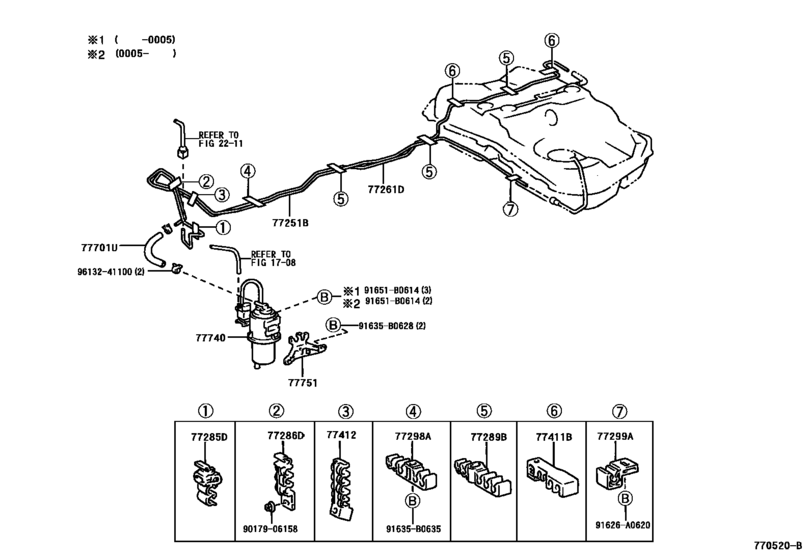

Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#) 23

#	OEM	Part name
77251	77251-48020	Tube, Fuel Main
77261	77261-48010	Tube, Fuel Tank To Canister
77285	77285-48010	Clamp, Fuel Tube, No.1
77286	77286-48010	Clamp, Fuel Tube, No.2
77289	77289-48010	Clamp, Fuel Tube, No.3
77298	77298-48010	Clamp, Fuel Tube, No.4
77299	77299-48010	Clamp, Fuel Tube, No.5
77411	77411-48010	Support, Fuel Tube Grommet, No.1
77412	77412-48010	Support, Fuel Tube Grommet, No.2
77701	95333-06030	Hose, Fuel
77701	95338-06030	HOSE, FUEL
77740	77740-33100	Canister Assy, Charcoal
77751	77751-33050	Bracket, Charcoal Canister Base
77751	77751-33051	Bracket, Charcoal Canister Base
91626	91626-A0620	New Genuine Part
91635	91635-B0628	New Genuine Part
91635	91631-B0625	BOLT W-WASHER
91635	91635-B0635	BOLT WWASHER
91635	91631-B0630	BOLT WWASHER
91651	91651-B0614	BOLT WWASHER
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)

OEM	Part name	Category
77251-48020	Tube, Fuel Main	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77261-48010	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77285-48010	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77286-48010	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77289-48010	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77298-48010	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77299-48010	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77411-48010	Support, Fuel Tube Grommet, No.1	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77412-48010	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77740-33100	Canister Assy, Charcoal	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77751-33050	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
77751-33051	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
91626-A0620	New Genuine Part	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
91631-B0625	BOLT W-WASHER	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
91631-B0630	BOLT WWASHER	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
91635-B0628	New Genuine Part	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
91635-B0635	BOLT WWASHER	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
91651-B0614	BOLT WWASHER	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([12.1997 - 11.2000] (9712-0011)SXU1#)
