Search › Model › SXN15
SXN15

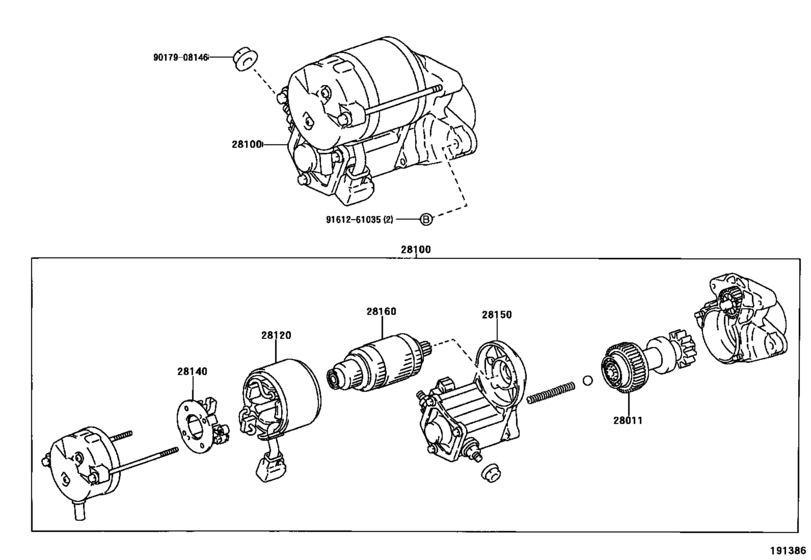

Starter ([04.2001 - ] 12V 1.2KW (0104- )) 10
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-74070 | Clutch Sub-Assy, Starter |
| 28100 | 28100-74130 | Starter Assy |
| 28100 | 28100-74140 | Starter Assy |
| 28120 | 28120-16180 | Yoke Assy, Starter |
| 28140 | 28140-74120 | Holder Assy, Starter Brush |
| 28150 | 28150-74140 | Switch Assy, Magnet Starter |
| 28160 | 28160-76060 | Armature Assy, Starter |
| 9017908146 | 90179-08146 | Nut |
| 9017908146 | 90179-08204 | Nut |
| 9161261035 | 91612-61035 | Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
| OEM | Part name | Category |
|---|---|---|
| 28011-74070 | Clutch Sub-Assy, Starter | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 28100-74130 | Starter Assy | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 28100-74140 | Starter Assy | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 28120-16180 | Yoke Assy, Starter | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 28140-74120 | Holder Assy, Starter Brush | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 28150-74140 | Switch Assy, Magnet Starter | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 28160-76060 | Armature Assy, Starter | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 90179-08146 | Nut | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 90179-08204 | Nut | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
| 91612-61035 | Bolt(For Hybrid Vehicle Transaxle & Engine Setting) | Starter ([04.2001 - ] 12V 1.2KW (0104- )) |
