SXN15

Toyota NADIA · 1998 · 4,235 parts · 192 categories
SXN15 ×

← Back to categories

4,235 items

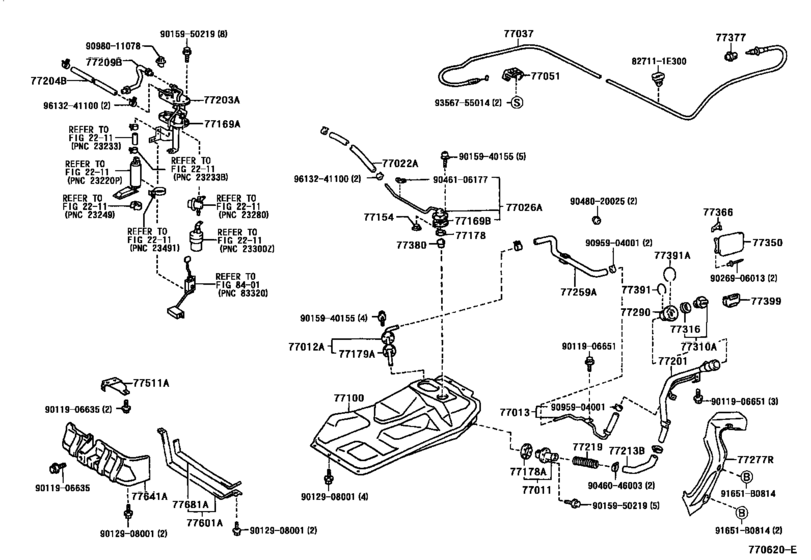

Fuel Tank & Tube ([07.1998 - ] (9807- )) 61
#OEMPart name
77011 77011-28010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-44020 Tube Sub-Assy, Fuel Tank Breather, No.1
77013 77013-44010 Tube Sub-Assy, Fuel Tank Breather, No.2
77013 77013-44020 Tube Sub-Assy, Fuel Tank Breather, No.2
77022 95333-06060 Hose, Fuel
77026 77026-44020 Tube Sub-Assy, Fuel Evaporation, No.1
77037 77037-44010 Lock Sub-Assy, Fuel Filler Opening Lid
77051 77051-44010-A0 Lever Sub-Assy, Fuel Lid Open
77051 77051-44010-B3 Lever Sub-Assy, Fuel Lid Open
77051 77051-44010-B2 Lever Sub-Assy, Fuel Lid Open
77100 77001-44900 Tank Assy, Fuel
77154 77154-44010 Plate, Fuel Tank Evap/vent Tube Support
77169 77169-60010 Gasket, Fuel Pump Bracket
77169 77169-14020 Gasket, Fuel Tank Vent
77178 77178-44010 Gasket, Fuel Tank Vent
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-14030 Retainer, Fuel Tank Mounting, Front
77201 77201-44020 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-44050 Pipe Sub-Assy, Fuel Tank Inlet
77203 77203-44040 Tube Sub-Assy, Fuel Suction
77204 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77204 95337-06020 Hose, Differential Pressure Control
77209 77209-44010 Tube Sub-Assy, Fuel Pump
77213 77213-44010 Hose, Fuel Tank To Filler Pipe
77219 77219-44010 Cover, Fuel Tank Filler Pipe
77259 77049-44010 Hose, Fuel(For Breather Tube)
77277 77277-44010 Protector, Fuel Tank Filler Pipe
77277 77277-44020 Protector, Fuel Tank Filler Pipe
77290 77291-44011 Shield Assy, Fuel Tank Filler Pipe
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-44030 Lid Assy, Fuel Filler Opening
77366 77360-44020 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-44010 Ring, Fuel Inlet Box
77511 77511-44010 Bracket, Fuel Tank
77601 77601-44010 Band Sub-Assy, Fuel Tank, No.1
77641 77641-44010 Protector, Fuel Tank, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011906635 90119-06635 New Genuine Part
9011906651 90119-06651 BOLT WWASHER
9012908001 90129-08001 BOLT WWASHER
9015940155 90159-40155 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9026906013 90269-06013 RIVET
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046106177 90461-06177 New Genuine Part
9048020025 90480-20025 New Genuine Part
9095904001 90959-04001 Clip, Fuel Hose
9098011078 90980-11078 HOUSING CONNECTOR
9356755014 93567-55014 Direct
9356755014 93568-55014 Screw
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9223372036854775807 82711-1E300 Clamp, Wiring Harness
