Search › Model › SXN10

SXN10

Toyota NADIA · 1998 · 4,463 parts · 186 categories
SXN10 ×

← Back to categories

4,463 items

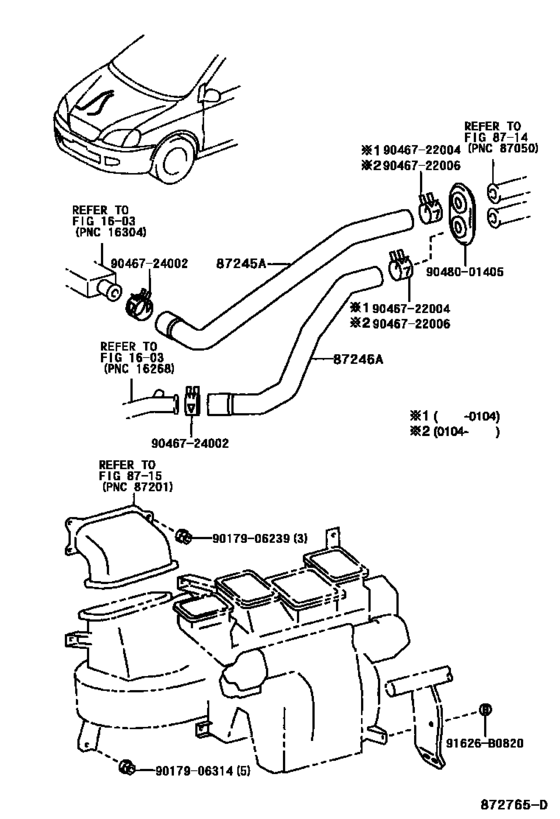

Heating & Air Conditioning - Water Piping ([07.1998 - 08.2002] (9807-0208)SXN1#) 13
#OEMPart name
87245 87245-44420 Hose, Heater Water, Inlet A
87245 87245-44010 Hose, Heater Water, Inlet A
87246 87245-44430 Hose, Heater Water, Outlet A
87246 87245-44390 Hose, Heater Water, Outlet A
91626 91626-B0820 New Genuine Part
91626 91621-B0816 BOLT WWASHER
9017906239 90179-06239 New Genuine Part
9017906239 90179-06314 NUT
9046722004 90467-22004 Clip(For Ventilation Hose No.2)
9046722004 90467-21010 Clip(For Ventilation Hose No.2)
9046722006 90467-22006 Clamp Or Clip(For Water By-Pass Hose No.2)
9046724002 90467-24002 Clip(For Water By-Pass Hose No.2)
9048001405 90480-01405 Grommet, Heater Hose
