Search › Model › SXM10

SXM10

Toyota GAIA · 1998 · 4,646 parts · 181 categories

4,646 items

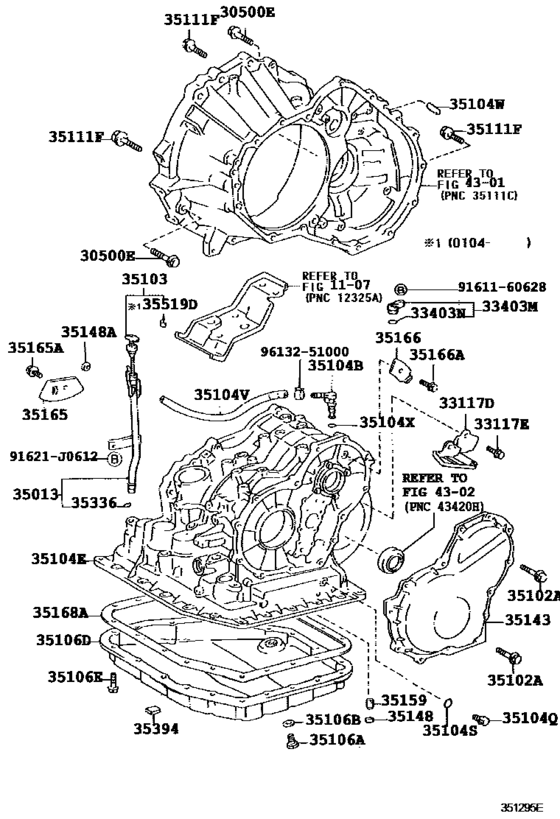

Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10) 40

#	OEM	Part name
30500	90105-08040	Bolt(For Plate Bolt Lock)
30500	91641-H0820	Bolt
30500	90105-10077	Bolt(For Transaxle Case Protector)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
33117	33117-12030	Protector, Transaxle Case
33403	33403-20230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24018	Ring, O
35013	35013-44060	Tube Sub-Assy, Transmission Oil Filler
35102	90105-06198	Bolt (For Transaxle Rear Cover Setting)
35102	91511-80625	Bolt (For Transaxle Rear Cover Setting)
35103	35103-44040	Gage Sub-Assy, Transmission Oil Level
35104	90930-03132	Plug, Breather, No.1 (Atm)
35104	35104-20110	Case Sub-Assy, Automatic Transaxle
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90447-11040	Hose (For Breather Plug)
35104	90250-10021	Pin, Straight (For Transaxle Case)
35104	90301-06010	Ring, O(For Breather Plug)
35106	90341-10011	Drain Plug (No Type)
35106	35178-30010	Drain Plug Gasket
35106	35106-12120	Pan Sub-Assy, Automatic Transaxle Oil
35106	35106-12090	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-08068	Bolt (For Transaxle Rear Cover Setting)
35111	91551-C0835	Bolt (For Rear Differential Carrier)
35111	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35111	90105-08288	Bolt (For Transaxle Housing & Transaxle Case Setting)
35143	35143-12030	Cover, Transmission Case, Rear
35148	35148-16010	Gasket (For Automatic Transfer Case)
35148	35148-12010	Gasket, Governor Apply, No.2
35159	35159-20010	Gasket, Brake Drum
35165	35165-20010	Plate, Transmission Case, No.1
35165	90105-06049	Bolt(For Transmission Case No.2 Plate)
35166	35166-12020	Plate, Transmission Case, No.3
35168	35168-12030	Gasket, Automatic Transaxle Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
91621	91621-J0612	BOLT W-WASHER
9161160628	91611-60628	Bolt, Hexagon
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
33117-12030	Protector, Transaxle Case	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
33403-20230	Cover Sub-Assy, Speedometer Driven Hole	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35013-44060	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35103-44040	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35104-20110	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35106-12090	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35106-12120	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35143-12030	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35148-12010	Gasket, Governor Apply, No.2	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35159-20010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35165-20010	Plate, Transmission Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35166-12020	Plate, Transmission Case, No.3	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35168-12030	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-06049	Bolt(For Transmission Case No.2 Plate)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-06198	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-08068	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-08288	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90250-10021	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90301-06010	Ring, O(For Breather Plug)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90447-11040	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
90930-03132	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
91511-80625	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
91551-C0835	Bolt (For Rear Differential Carrier)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
91611-60628	Bolt, Hexagon	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
91621-J0612	BOLT W-WASHER	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)
96711-24018	Ring, O	Transmission Case & Oil Pan (Atm) ([05.1998 - ] A247E,A248F (9805- )ACM1#,SXM10)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 181
Collected: 2026-08-03
