SXM10

Toyota GAIA · 1998 · 4,646 parts · 181 categories
SXM10 ×

← Back to categories

4,646 items

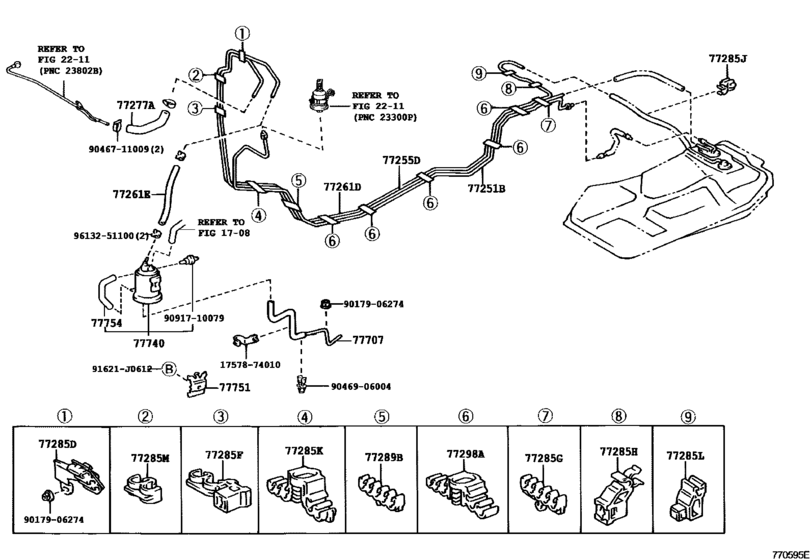

Fuel Tank & Tube ([05.1998 - ] (9805- )SXM1#) 28
#OEMPart name
77251 77251-44010 Tube, Fuel Main
77255 77255-44010 Tube, Fuel Return
77261 77261-44010 Tube, Fuel Tank To Canister
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77277 90447-12084 Hose, Fuel
77285 77285-44100 Clamp, Fuel Tube, No.1
77285 77285-44110 Bracket, Fuel Tube
77285 77285-44120 Clamp, Fuel Tube, No.1
77285 77285-44130 Clamp, Fuel Tube, No.1
77285 77285-44140 Clamp, Fuel Tube, No.1
77285 77285-44150 Clamp, Fuel Tube, No.1
77285 77285-44070 Clamp, Fuel Tube, No.1
77285 77285-44080 Clamp, Fuel Tube, No.1
77289 77289-44010 Clamp, Fuel Tube, No.3
77298 77298-44020 Clamp, Fuel Tube, No.4
77707 77707-44011 Tube Sub-Assy, Charcoal Canister Outlet
77740 77740-44010 Canister Assy, Charcoal
77751 77751-44010 Bracket, Charcoal Canister Base
77754 77754-20370 Hose, Charcoal Canister Outlet, No.1
91621 91621-J0612 BOLT W-WASHER
1757874010 17578-74010 Clamp, Pipe
9017906274 90179-06274 Nut
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046906004 90469-06004 New Genuine Part
9091710079 90917-10079 Valve, Check, No.1
9613251100 96132-51100 Clip (For Hose)
