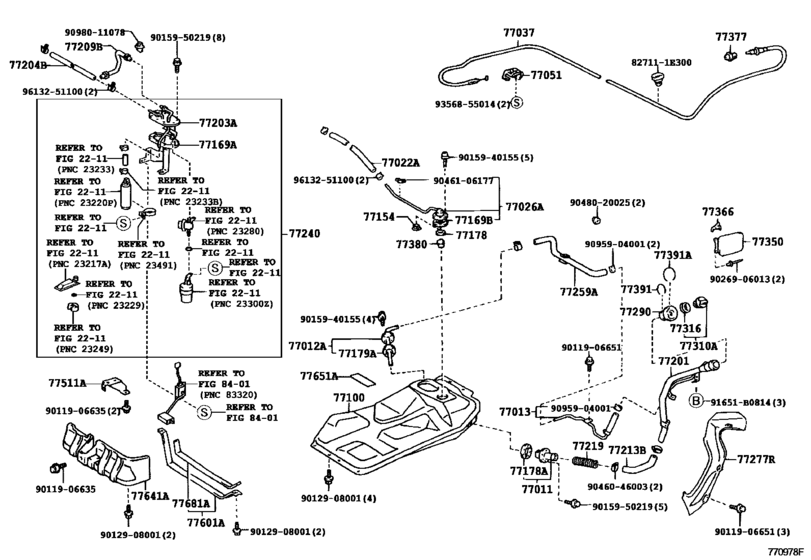

| 77001-44900 |
Tank Assy, Fuel |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77011-28010 |
Pipe Sub-Assy, Fuel Tank Filler, Lower |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77012-44020 |
Tube Sub-Assy, Fuel Tank Breather, No.1 |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77013-44010 |
Tube Sub-Assy, Fuel Tank Breather, No.2 |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77026-44020 |
Tube Sub-Assy, Fuel Evaporation, No.1 |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77037-44010 |
Lock Sub-Assy, Fuel Filler Opening Lid |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77049-44010 |
Hose, Fuel(For Breather Tube) |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77051-44010-B0 |
Lever Sub-Assy, Fuel Lid Open |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77051-44010-B1 |
Lever Sub-Assy, Fuel Lid Open |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77051-44010-B3 |
Lever Sub-Assy, Fuel Lid Open |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77169-14020 |
Gasket, Fuel Tank Vent |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77169-60010 |
Gasket, Fuel Pump Bracket |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77178-20030 |
Gasket, Fuel Tank Filler Pipe, Lower |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77178-44010 |
Gasket, Fuel Tank Vent |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77179-14030 |
Retainer, Fuel Tank Mounting, Front |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77201-44020 |
Pipe Sub-Assy, Fuel Tank Inlet |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77203-44020 |
Tube Sub-Assy, Fuel Suction |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77209-44010 |
Tube Sub-Assy, Fuel Pump |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77213-44010 |
Hose, Fuel Tank To Filler Pipe |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77219-44010 |
Cover, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77277-44010 |
Protector, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77291-44011 |
Shield Assy, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77310-48010 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77316-16010 |
Gasket (For Fuel Tank Cap) |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77350-44020 |
Lid Assy, Fuel Filler Opening |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77360-44010 |
Spring, Fuel Filler Opening Lid Hinge |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77360-44020 |
Spring, Fuel Filler Opening Lid Hinge |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77377-12050 |
Bracket, Fuel Lid Lock Control |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77380-26010 |
Valve Assy, Fuel Cut Off |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77391-12020 |
Ring, Fuel Inlet Box |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77391-44010 |
Ring, Fuel Inlet Box |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77511-44010 |
Bracket, Fuel Tank |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77601-44010 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77641-44010 |
Protector, Fuel Tank, No.1 |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 77681-32060 |
Seat, Fuel Tank Band, Rh |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 82711-1E300 |
Clamp, Wiring Harness |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90119-06635 |
New Genuine Part |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90119-06651 |
BOLT WWASHER |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90119-A0109 |
New Genuine Part |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90129-08001 |
BOLT WWASHER |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90159-40155 |
SCREW WWASHER |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90159-50219 |
BOLT |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90159-A0057 |
New Genuine Part |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90269-06013 |
RIVET |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90460-46003 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90460-46005 |
Clamp (For Fuel Filler Pipe) |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90461-06177 |
New Genuine Part |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90480-20025 |
New Genuine Part |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90959-04001 |
Clip, Fuel Hose |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 90980-11078 |
HOUSING CONNECTOR |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 91651-B0814 |
Bolt with washer |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 93568-55014 |
Screw |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 95333-06020 |
Hose, Fuel(For Injection Pump To Fuel Pipe) |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 95333-06060 |
Hose, Fuel |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 95337-06020 |
Hose, Differential Pressure Control |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
| 96132-51100 |
Clip (For Hose) |
Fuel Tank & Tube ([05.1998 - ] (9805- )ACM1#,SXM1#) |
