SXM10

Toyota GAIA · 1998 · 4,646 parts · 181 categories
SXM10 ×

← Back to categories

4,646 items

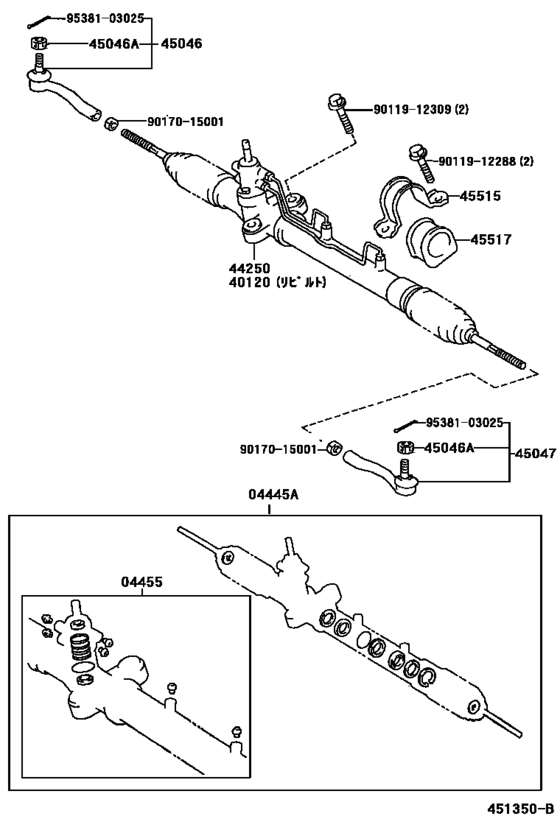

Front Steering Gear & Link ([05.1998 - 04.2001] (9805-0104)CXM10,SXM10) 79
#OEMPart name
4445 04445-20161 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4445 04445-20210 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-20080 Gasket Kit, Power Steering Control Valve Overhole
4455 04455-20120 Gasket Kit, Power Steering Control Valve Overhole
40120 40120-44010 Gear Assy,power Steering,rebuilt
40120 40120-44050 Gear Assy,power Steering,rebuilt
40120 40120-44060 Gear Assy,power Steering,rebuilt
44201 44201-44050 Valve Sub-Assy, Power Steering Control
44201 44201-44070 Valve Sub-Assy, Power Steering Control
44201 90562-33002 Ring(For Power Steering Control Valve)
44201 90562-33007 Ring(For Power Steering Control Valve)
44201 90311-19002 Seal, Oil(For Adjuster Plug)
44201 90311-19006 Seal, Oil(For Power Steering Control Valve)
44201 90363-19002 Bearing(For Power Steering Control Valve)
44201 90363-19003 Bearing(For Rear Steering Control Valve Housing)
44201 90363-13002 Bearing(For Power Steering Control Valve Lower)
44203 44203-44010 Housing Sub-Assy, Power Steering Rack
44203 44203-44040 Housing Sub-Assy, Power Steering Rack
44204 44204-20320 Rack Sub-Assy, Power Steering
44204 44204-44030 Rack Sub-Assy, Power Steering
44204 90301-35002 Ring(For Rack Steering Piston)
44204 90301-36005 Ring(For Rack Steering Piston)
44204 90562-38004 Ring(For Rack Steering Piston)
44204 90562-39001 Ring(For Rack Steering Piston)
44206 90310-25017 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206 90310-25035 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206 90310-25025 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44210 44210-44050 Valve Assy, Power Steering Control
44210 44210-44070 Valve Assy, Power Steering Control
44210 90410-06002 Seat, Union(For Power Steering Control Valve)
44210 90410-06005 Seat, Union(Pressure Control Valve Assy)
44210 90301-51001 Ring, O(For Adjuster Plug)
44210 96711-24060 Ring, O(For Power Steering Control Valve)
44211 44211-20100 Housing, Control Valve
44211 44211-44010 Housing, Control Valve
44250 44250-44010 Gear Assy, Power Steering(For Rack & Pinion)
44250 44200-44290 Link Assy, Power Steering
44250 45517-44030 Grommet, Steering Rack Housing, No.2
44250 44250-44060 Gear Assy, Power Steering(For Rack & Pinion)
44250 44200-44060 Link Assy, Power Steering
44253 90310-28003 Seal, Oil(For Power Steering Rack Housing)
44275 44275-20110 Stopper, Cylinder End
44275 44275-20130 Stopper, Cylinder End
44275 90521-51004 Ring, Hole Snap(For Cylinder End Stopper)
44277 44277-20040 Seat, Rack Guide
44283 45524-50010 Cap, Rack Housing
44283 90179-36002 Nut(For Power Steering Pinion Cap)
44418 44418-44010 Tube, Steering Right Turn Pressure
44418 44418-44040 Tube, Steering Right Turn Pressure
44418 90410-04002 Seat, Union(For Power Steering Rack Housing)
44418 90410-04003 Seat, Union(For Power Steering Control Valve)
44418 96390-71200 Seat, Union(For Steering Turn Pressure Tube)
44419 44419-44010 Tube, Steering Left Turn Pressure
44419 44419-44040 Tube, Steering Left Turn Pressure
45046 45046-29335 End Sub-Assy, Tie Rod, Rh
45046 90171-12028 Nut, Castle(For Pitman Arm)
45047 45047-29105 End Sub-Assy, Tie Rod, Lh
45222 45222-32010 Cover, Dust(For Power Steering Gear)
45503 45503-29615 End Sub-Assy, Steering Rack
45503 90214-14002 Washer, Claw(For Power Steering Rack End)
45515 45515-20160 Bracket, Steering Rack Housing, No.2
45517 45517-44010 Grommet, Steering Rack Housing, No.2
45523 45523-20040 Guide, Rack(For Steering Gear)
45523 90501-29036 Spring(For Steering Gear Rack Guide)
45523 90501-30019 Spring(For Steering Gear Rack Guide)
45524 45524-44010 Cap, Steering Rack Guide Spring
45535 45535-20190 Boot, Steering Rack, No.1
45535 90467-19018 Clip(For Power Steering Rack Boot)
45535 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
45535 90460-49002 Clamp(For Power Steering Rack Boot)
45535 90460-49004 Clamp(For Steering Rack Boot No.1)
45536 45535-20170 Boot, Steering Rack, No.2
45536 90460-52001 Clamp(For Power Steering Rack Boot)
9011912288 90119-12288 Bolt
9011912309 90119-12309 New Genuine Part
9014930009 90149-30009 Screw(For Steering Rack Boot Clamp)
9017015001 90170-15001 Nut, Rack End Lock
9161261028 91612-61028 Bolt(For Transaxle Case & Engine Setting)
9538103025 95381-03025 PIN
