Search › Model › SXM10

SXM10

Toyota GAIA · 1998 · 4,646 parts · 181 categories

4,646 items

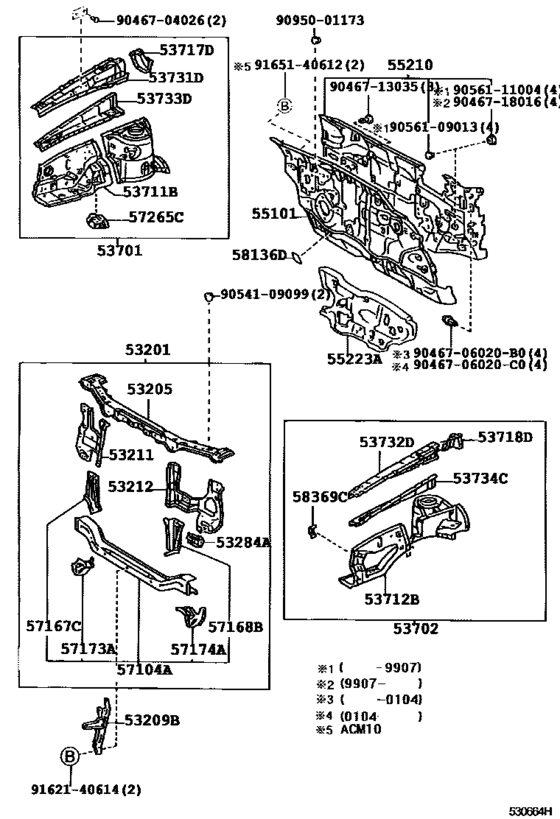

Front Fender Apron & Dash Panel ([05.1998 - ] (9805- )) 41

#	OEM	Part name
53201	53201-44020	Support Sub-Assy, Radiator
53205	53205-44011	Support Sub-Assy, Radiator, Upper
53209	53209-44020	Brace Sub-Assy, Hood Lock Support
53211	53211-44020	Support, Radiator, Rh
53212	53212-44020	Support, Radiator, Lh
53284	53284-44020	Retainer, Front Body Mounting
53701	53701-44010	Apron Sub-Assy, Front Fender, Rh
53702	53702-44010	Apron Sub-Assy, Front Fender, Lh
53711	53711-44010	Apron, Front Fender, Front Rh
53712	53712-44010	Apron, Front Fender, Front Lh
53717	53717-44010	Gusset, Fender Apron, Rh
53718	53718-44010	Gusset, Fender Apron, Lh
53731	53731-44010	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-44010	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-44010	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-44010	Member, Front Apron To Cowl Side, Lower Front Lh
55101	55101-44090	Panel Sub-Assy, Dash
55101	55101-49025	Panel Sub-Assy, Dash
55210	55210-44040	Insulator Assy, Dash Panel
57104	57104-20140	Member Sub-Assy, Front Cross
57167	57167-20160	Gusset, Front Crossmember Side, Rh
57168	57168-20150	Gusset, Front Crossmember Side, Lh
57173	57173-20050	Reinforcement, Front Crossmember, No.3 Rh
57174	57174-20050	Reinforcement, Front Crossmember, No.3 Lh
57265	57265-20110	Bracket, Engine Mounting, Rh
58136	58136-44010	Cover, Dash Panel Service Hole
58136	90950-06098	Cover, Dash Panel Service Hole
58369	58369-32010	Bracket, Insulator Heat
9046704026	90467-04026	New Genuine Part
9046706020	90467-06020-B0	Clip, No.2(For Parking Brake)
9046706020	90467-06020-C0	Clip
9046713035	90467-13035	Clip
9046718016	90467-18016	Clip
9054109099	90541-09099	New Genuine Part
9056109013	90561-09013	SPACER
9056111004	90561-11004	SPACER
9095001173	90950-01173	New Genuine Part
9095001173	90950-01684	PLUG HOLE
9162140614	91621-40614	BOLT
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part

OEM	Part name	Category
53201-44020	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53205-44011	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53209-44020	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53211-44020	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53212-44020	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53284-44020	Retainer, Front Body Mounting	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53701-44010	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53702-44010	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53711-44010	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53712-44010	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53717-44010	Gusset, Fender Apron, Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53718-44010	Gusset, Fender Apron, Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53731-44010	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53732-44010	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53733-44010	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
53734-44010	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
55101-44090	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
55101-49025	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
55210-44040	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
57104-20140	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
57167-20160	Gusset, Front Crossmember Side, Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
57168-20150	Gusset, Front Crossmember Side, Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
57173-20050	Reinforcement, Front Crossmember, No.3 Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
57174-20050	Reinforcement, Front Crossmember, No.3 Lh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
57265-20110	Bracket, Engine Mounting, Rh	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
58136-44010	Cover, Dash Panel Service Hole	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
58369-32010	Bracket, Insulator Heat	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90080-11225	New Genuine Part	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90467-04026	New Genuine Part	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90467-06020-B0	Clip, No.2(For Parking Brake)	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90467-06020-C0	Clip	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90467-13035	Clip	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90467-18016	Clip	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90541-09099	New Genuine Part	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90561-09013	SPACER	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90561-11004	SPACER	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90950-01173	New Genuine Part	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90950-01684	PLUG HOLE	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
90950-06098	Cover, Dash Panel Service Hole	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
91621-40614	BOLT	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
91651-40612	BOLT	Front Fender Apron & Dash Panel ([05.1998 - ] (9805- ))
