Search › Model › SXM10

SXM10

Toyota GAIA · 1998 · 4,646 parts · 181 categories

4,646 items

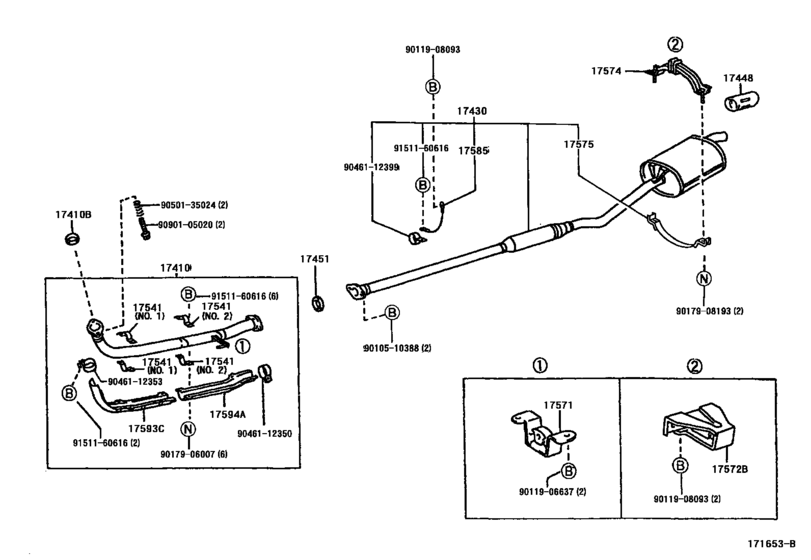

Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10) 29

#	OEM	Part name
17410	17410-7A460	Pipe Assy, Exhaust, Front
17410	17410-7A461	Pipe Assy, Exhaust, Front
17410	17451-74051	Gasket, Exhaust Pipe
17430	17430-7A712	Pipe Assy, Exhaust, Tail
17448	17448-74080	Baffle, Tail Pipe
17451	90917-06062	Gasket, Exhaust Pipe
17451	90080-43034	Gasket, Exhaust Pipe
17541	17541-34020	Clamp, Exhaust Pipe(For Heat Insulator)
17541	17541-74110	Stay, Exhust Pipe Protector, No.1
17571	17571-74450	Bracket, Exhaust Pipe Support, No.1
17572	17572-74120	Bracket, Exhaust Pipe Support, No.2
17574	17574-74140	Bracket, Exhaust Pipe Support, No.4
17575	17575-74140	Bracket, Exhaust Pipe Support, No.5
17585	17585-74080	Hanger, Exhaust Pipe
17593	17593-74680	Protector, Exhaust Pipe, Lower No.1
17594	17594-74640	Protector, Exhaust Pipe, Lower No.2
17594	17594-74641	Protector, Exhaust Pipe, Lower No.2
9010510388	90105-10388	BOLT
9011906637	90119-06637	Bolt(For Cylinder Head Cover)
9011908093	90119-08093	BOLT
9017906007	90179-06007	Nut
9017908193	90179-08193	NUT
9046112350	90461-12350	Clamp, Exhaust Pipe
9046112353	90461-12353	Clamp, Exhaust Pipe
9046112399	90461-12399	New Genuine Part
9050135024	90501-35024	SPRING COMPRESSION
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE

OEM	Part name	Category
17410-7A460	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17410-7A461	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17430-7A712	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17448-74080	Baffle, Tail Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17451-74051	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17541-34020	Clamp, Exhaust Pipe(For Heat Insulator)	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17541-74110	Stay, Exhust Pipe Protector, No.1	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17571-74450	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17572-74120	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17574-74140	Bracket, Exhaust Pipe Support, No.4	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17575-74140	Bracket, Exhaust Pipe Support, No.5	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17585-74080	Hanger, Exhaust Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17593-74680	Protector, Exhaust Pipe, Lower No.1	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17594-74640	Protector, Exhaust Pipe, Lower No.2	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
17594-74641	Protector, Exhaust Pipe, Lower No.2	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90080-43034	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90105-10388	BOLT	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90119-06637	Bolt(For Cylinder Head Cover)	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90119-08093	BOLT	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90179-06007	Nut	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90179-08193	NUT	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90461-12350	Clamp, Exhaust Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90461-12399	New Genuine Part	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90501-35024	SPRING COMPRESSION	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
90917-06062	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
91511-60616	BOLTFLANGE	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
91511-B0616	BOLT, FLANGE	Exhaust Pipe ([05.1998 - 04.2001] (9805-0104)3SFE..SXM10)
