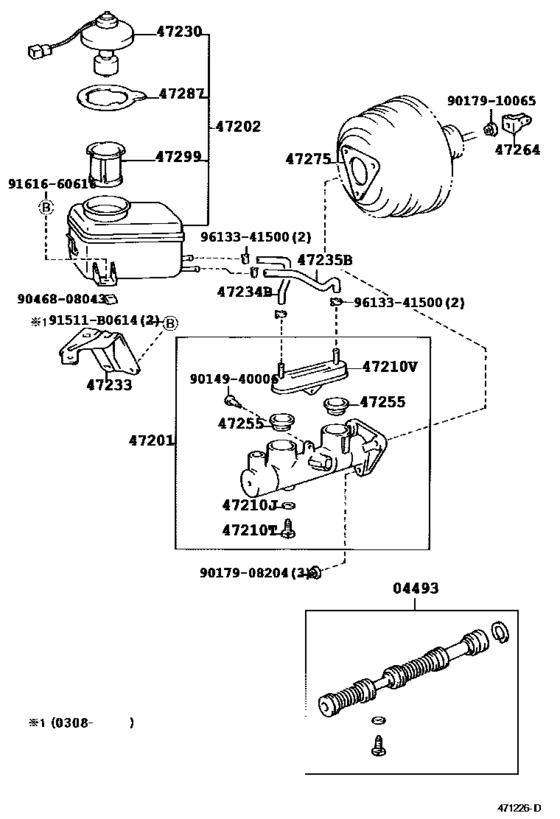

| 04493-44010 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47201-44021 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47220-44020 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47233-44010 |
Bracket, Reservoir |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47234-44010 |
Tube, Reservoir, No.1 |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47235-44010 |
Tube, Brake Master Cyrinder Reservoir, No.2 |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47264-28010 |
Clevis, Master Cylinder Push Rod |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47275-32010 |
Gasket, Brake Master Cylinder |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47287-20020 |
Label, Brake Fluid Information |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 47299-32010 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 84460-30040 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90029-40011 |
Union(For Brake Master Cylinder) |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 90468-08043 |
New Genuine Part |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 91511-B0614 |
BOLT, FLANGE |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 91616-60616 |
BOLT |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
| 96133-41500 |
Clamp Or Clip(For Air Hose, No.5) |
Brake Master Cylinder ([05.1998 - 04.2001] (9805-0104) ; (0104- )ACM1#,SXM15) |
