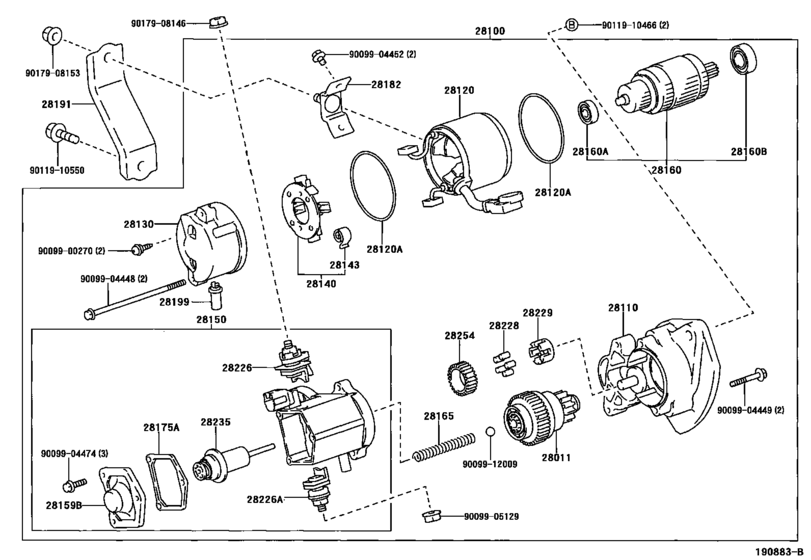

| 28011-76070 |
Clutch Sub-Assy, Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28100-74310 |
Starter Assy |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28110-74310 |
Housing Assy, Starter Drive |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28120-74310 |
Yoke Assy, Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28130-74310 |
Frame Assy, Starter Commutator End |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28140-76070 |
Holder Assy, Starter Brush |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28150-74310 |
Switch Assy, Magnet Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28159-55050 |
Cover, Starter Protector |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28160-74070 |
Armature Assy, Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28165-76070 |
Spring, Starter Magnet Switch Return |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28175-55050 |
Gasket, Magnet Switch Cover |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28183-54230 |
Stay, Starter Commutator End Frame |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28191-74010 |
Stay, Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28199-74110 |
Cover, Starter End Frame |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28226-22050 |
Starter Kit, Battery Terminal |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28226-64200 |
Starter Kit, Battery Terminal |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28226-74070 |
Starter Kit, Battery Terminal |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28228-26040 |
Roller, Starter Idle Gear Clutch |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28229-74070 |
Retainer, Starter Idle Gear |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28235-55050 |
Plunger, Magnet Switch |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 28254-74070 |
Pinion, Starter Drive |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90080-11399 |
New Genuine Part |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-00270 |
Screw, Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-04448 |
Bolt, Starter |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-04449 |
New Genuine Part |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-04452 |
New Genuine Part |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-04474 |
New Genuine Part |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-05129 |
Nut (For Front Wiper Arm Setting) |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-10196 |
Bearing, Starter Armature |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-10197 |
Bearing, Starter Armature |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-12009 |
Ball, Starter Clutch |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-14064 |
Rubber(For Starter Yoke) |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90099-17112 |
Spring, Starter Brush |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90119-10466 |
Bolt(For Transaxle & Engine Setting) |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90119-10550 |
New Genuine Part |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90179-08146 |
Nut |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90179-08153 |
NUT |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 90179-08204 |
Nut |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
| 91612-61050 |
Bolt(For Transaxle & Engine Setting) |
Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) |
