Search › Model › SXE10

SXE10

Toyota ALTEZZA-ALTEZZA-GITA · 1998 · 6,439 parts · 230 categories

6,439 items

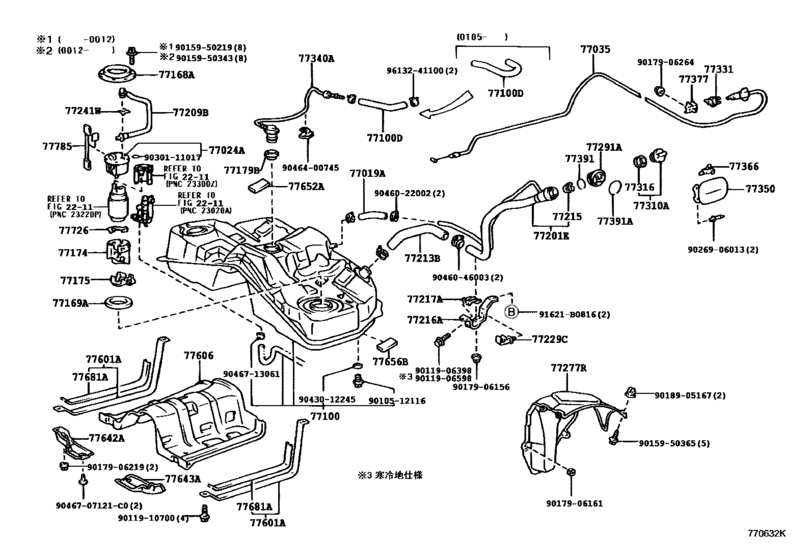

Fuel Tank & Tube ([10.1998 - ] (9810- )SED) 86

#	OEM	Part name
77019	77019-51010	Hose, Fuel, No.1(For Fuel Expansion Tank)
77024	77024-30070	Plate Sub-Assy, Fuel Suction
77024	77024-53010	Plate Sub-Assy, Fuel Suction
77035	77035-53010	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-53010	Tank Assy, Fuel
77100	77001-53011	Tank Assy, Fuel
77100	77249-30030	Hose, Fuel, No.1(For Fuel Tank)
77100	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77100	95337-06020	Hose, Differential Pressure Control
77168	77168-12240	Plate, Fuel Tank Vent Tube Set
77168	77168-33050	Plate, Fuel Tank Vent Tube Set
77168	77168-33040	Plate, Fuel Tank Vent Tube Set
77169	77169-33020	Gasket, Fuel Pump Bracket
77174	77174-33010	Support, Fuel Suction, No.1
77175	77175-30050	Support, Fuel Suction, No.2
77175	77175-33010	Support, Fuel Suction, No.2
77179	77179-33010	Gasket, Fuel Tank Evap/vent Tube
77201	77201-53020	Pipe Sub-Assy, Fuel Tank Filler
77201	77201-53030	Pipe Sub-Assy, Fuel Tank Filler
77209	77209-30070	Tube Sub-Assy, Fuel Pump
77209	77209-51020	Tube Sub-Assy, Fuel Pump
77209	77209-53010	Tube Sub-Assy, Fuel Pump
77213	77213-22090	Hose, Fuel Tank To Filler Pipe
77213	77213-30170	Hose, Fuel Tank To Filler Pipe
77213	77213-51010	Hose, Fuel Tank To Filler Pipe
77215	77215-51010	Plate, Fuel Tank Filler Pipe Flange
77216	77216-51010	Support, Fuel Tank Filler Pipe, No.1
77217	77217-51010	Support, Fuel Tank Filler Pipe, No.2
77229	77229-51010	Clamp, Breather Tube
77241	77241-33011	Clip, Tube Joint
77277	77277-53010	Protector, Fuel Tank Filler Pipe
77291	77291-53020	Shield, Fuel Tank Filler Pipe
77291	77291-53021	Shield, Fuel Tank Filler Pipe
77310	77310-48010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77331	77331-53010	Bracket, Fuel Lid Lock Control
77340	77340-51010	Valve Assy, Fuel Cut Off W/tube
77350	77350-53010	Lid Assy, Fuel Filler Opening
77350	77350-53030	Lid Assy, Fuel Filler Opening
77350	77360-33020	Spring, Fuel Filler Opening Lid Hinge
77350	77350-53011	Lid Assy, Fuel Filler Opening
77366	77360-12080	Spring, Fuel Filler Opening Lid Hinge
77366	77360-53010	Spring, Fuel Filler Opening Lid Hinge
77377	77377-22060	Retainer, Fuel Filler Opening Lid Lock
77391	77391-53020	Ring, Fuel Inlet Box
77391	77391-53010	Ring, Fuel Inlet Box
77601	77601-51010	Band Sub-Assy, Fuel Tank, No.1
77601	77601-53010	Band Sub-Assy, Fuel Tank, No.1
77606	77606-53010	Protector Sub-Assy, Fuel Tank, No.1
77642	77642-53010	Protector, Fuel Tank, No.2
77643	77643-53010	Protector, Fuel Tank, No.3
77652	77652-12100	Cushion, Fuel Tank, No.1
77656	77656-53010	Cushion, Fuel Tank, No.6
77681	77681-32060	Seat, Fuel Tank Band, Rh
77726	77726-33010	Cushion, Fuel Filter, No.2
77785	77785-33010	Harness, Fuel Pump
77785	77785-52020	Harness, Fuel Pump
91621	91621-B0816	BOLT WWASHER
9010512116	90105-12116	Plug(For Fuel Tank)
9011906398	90119-06398	BOLT WWASHER
9011906598	90119-06598	BOLT
9011906598	91631-A0618	New Genuine Part
9011910700	90119-10700	New Genuine Part
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015950343	90159-50343	SCREW, W-WASHER
9015950365	90159-50365	SCREW, W/WASHER
9017906156	90179-06156	Nut (For Transmission Control Cable)
9017906161	90179-06161	Bolt, Union(For Clutch Accumulator)
9017906219	90179-06219	Nut
9017906219	90182-A0005	Nut
9017906264	90179-06264	NUT, WWASHER
9018905167	90189-05167	New Genuine Part
9026906013	90269-06013	RIVET
9030111017	90301-11017	New Genuine Part
9030111017	90080-30043	New Genuine Part
9043012245	90430-12245	Gasket(For Fuel Tank)
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046400745	90464-00745	Clamp, Fuel Tube, No.4
9046707121	90467-07121-C0	Clip, Roof Headlining
9046713061	90467-13061	Crip (For Fuel Tank Filler Pipe)
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)

OEM	Part name	Category
77001-53010	Tank Assy, Fuel	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77001-53011	Tank Assy, Fuel	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77019-51010	Hose, Fuel, No.1(For Fuel Expansion Tank)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77024-30070	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77024-53010	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77035-53010	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77168-12240	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77168-33040	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77168-33050	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77169-33020	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77174-33010	Support, Fuel Suction, No.1	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77175-30050	Support, Fuel Suction, No.2	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77175-33010	Support, Fuel Suction, No.2	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77179-33010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77201-53020	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77201-53030	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77209-30070	Tube Sub-Assy, Fuel Pump	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77209-51020	Tube Sub-Assy, Fuel Pump	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77209-53010	Tube Sub-Assy, Fuel Pump	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77213-22090	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77213-30170	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77213-51010	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77215-51010	Plate, Fuel Tank Filler Pipe Flange	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77216-51010	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77217-51010	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77229-51010	Clamp, Breather Tube	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77249-30030	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77277-53010	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77291-53020	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77291-53021	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77310-48010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77331-53010	Bracket, Fuel Lid Lock Control	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77340-51010	Valve Assy, Fuel Cut Off W/tube	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77350-53010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77350-53011	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77350-53030	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77360-12080	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77360-33020	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77360-53010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77377-22060	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77391-53010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77391-53020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77601-51010	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77601-53010	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77606-53010	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77642-53010	Protector, Fuel Tank, No.2	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77643-53010	Protector, Fuel Tank, No.3	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77652-12100	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77656-53010	Cushion, Fuel Tank, No.6	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77726-33010	Cushion, Fuel Filter, No.2	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77785-33010	Harness, Fuel Pump	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
77785-52020	Harness, Fuel Pump	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90080-30043	New Genuine Part	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90119-06398	BOLT WWASHER	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90119-06598	BOLT	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90119-10700	New Genuine Part	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90159-50219	BOLT	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90159-50365	SCREW, W/WASHER	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90179-06156	Nut (For Transmission Control Cable)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90179-06161	Bolt, Union(For Clutch Accumulator)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90179-06219	Nut	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90179-06264	NUT, WWASHER	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90182-A0005	Nut	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90189-05167	New Genuine Part	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90269-06013	RIVET	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90301-11017	New Genuine Part	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90460-22001	CLAMP	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90460-22002	CLAMP	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90464-00745	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90467-07121-C0	Clip, Roof Headlining	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
90467-13061	Crip (For Fuel Tank Filler Pipe)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
91621-B0816	BOLT WWASHER	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
91631-A0618	New Genuine Part	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([10.1998 - ] (9810- )SED)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 230
Collected: 2026-08-02
